DX-U1220P1

Overview / Features

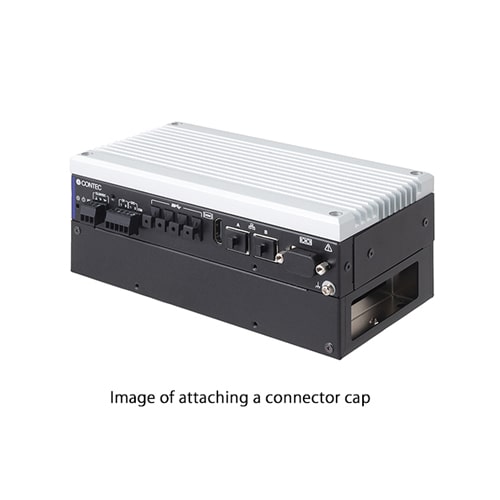

This product is an industrial computer equipped with the NVIDIA® Jetson Xavier NX™ module, suitable for AI inference processing. It is equipped with 2 Gigabit LANs, HDMI, 4 USBs, general-purpose I/O, serial ports, and RTC, realizing flexible installation and environmental resistance. In addition, it is equipped with large-capacity NVMe storage as standard, so it can be used safely for practical applications.As with the developer kit, the software environment is pre-installed with Ubuntu, and the JetPack SDK is available, and applications created with the developer kit can be run. As a simple dustproof measure, this product comes with a metal plate (already attached to this product) and a connector cap to prevent dust and dirt from entering through the ventilation holes.As with the developer kit, the software environment is pre-installed with Ubuntu, and the JetPack SDK is available, and applications created with the developer kit can be run. It is equipped with a low profile PCI Express slot, and functions can be expanded with our wide range of low profile PCI Express cards.

Usage Examples

Intrusion Detection

Traffic Count

Predictive Maintenance

Visual Inspection System

• Edge AI accelerator equipped with NVIDIA® Jetson Xavier NX™ module.
  • Equipped with NVIDIA® Jetson Xavier™, the DX-U1200 series can be used in fields requiring on-site AI inference processing, such as image inspection and predictive maintenance.
• Equipped standard NVMe 256GB storage
  • The standard-equipped high-capacity NVMe 256GB storage offers reliableoperation with no need to worry about the capacity of the Jetson XavierNX™ module’s eMMC.
• Equipped with various I/F such as USB3.2 Gen2 4 ports
  • Multiple USB cameras can be connected simultaneously for visual inspection of production lines. Equipped with a serial port (RS-232C/422A/485 1 port) convenient for connecting peripheral devices and sensors.
• Two Gigabit LAN ports for alternating connections between different network layers
  • This product is equipped with two Gigabit LAN ports. This makes it ideal for edge computing that alternates connections between different network layers such as between video acquisition from a camera and higher-order information system networks.
• “Power failure protection system” features power-off without OS shutdown
  • Using the JetPack/L4T version provided by our company, it supports power failure protection function.It can be used by enabling the power-off protection function in BIOS and Linux settings.
• Equipped with 1x Low Profile PCI Express(x1) slot
  • This product also equipped with a PCI Express(x1) slot and enables expanded functionality by means of CONTEC’s rich variety of low-profile PCI Express cards, including analog input and serial communication boards.
