DX-U2100

Overview / Features

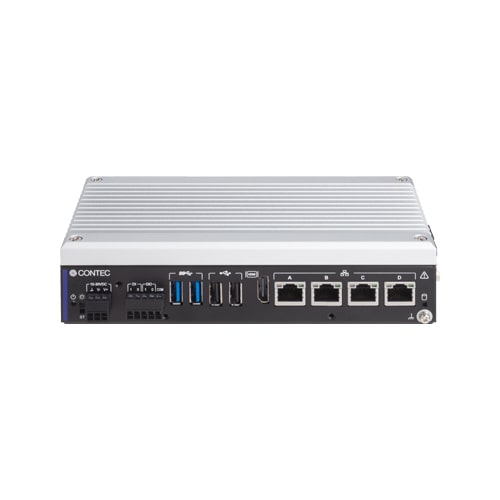

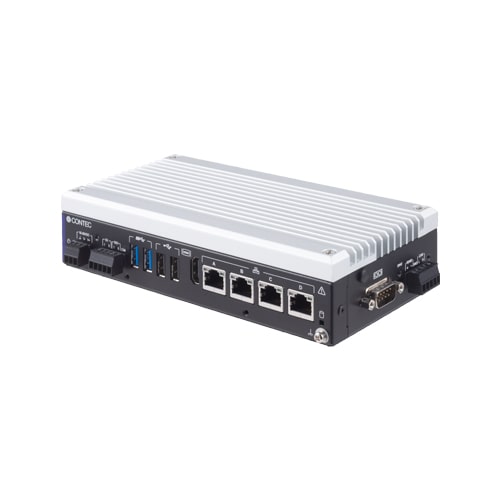

This product is a industrial edge AI computer with an emphasis on practicality equipped with an NVIDIA® Jetson Orin Nano™ module, Equipped with four Gigabit LAN ports, an HDMI port, four USB ports, a general I/O port, serial port, CAN port, and an RTC (real-time calendar/clock), with flexible installation and environmental resistance, In addition, large-capacity NVMe storage is included as standard, it can be comfortably used for practical applications.This product includes sheet metal (pre-attached) and connector caps as simple dust control measures to prevent dust and dirt from entering through the vents.The software environment is the same as the developer kit, with Ubuntu pre-installed, JetPack SDK available, and applications created with the developer kit can be executed. The LTE model is equipped with an LTE SIM-free communication module, enabling 4G LTE.

Usage Examples

Intrusion Detection

Traffic Count

Predictive Maintenance

Visual Inspection System

• Edge AI accelerator powered by NVIDIA Jetson Orin Nano
  • Equipped with NVIDIA Jetson Nano, can be used in fields requiring on-site AI inference processing, such as image inspection and predictive maintenance.
• Built-in NVMe storage
  • Large-capacity NVMe storage is installed as standard, so users who are concerned about storage capacity can use it with confidence.
• 4G LTE Cat.4 communication model can be selected
  • Lineup of models equipped with an LTE SIM-free communication module that complies with the Radio Law in Japan, enabling 4G LTE Cat.4 communication.
    * The wireless communication function of this product can be used only in Japan. A separate SIM card contract is required.
• Four Gigabit LAN ports for alternating connections between different network layers
  • Equipped with four Gigabit LAN ports. This makes it ideal for edge computing that alternates connections between different network layers such as between video acquisition from a camera and higher-order information system networks.
• “Power failure protection system” features power-off without OS shutdown
  • Using the JetPack/L4T version provided by our company, it supports power failure protection function.It can be used by enabling the power-off protection function in BIOS and Linux settings.
• -20 to 60°C ambient temperature
  • Stable operations of this product are possible over a wide range of temperatures from -20 to 60°C *1 ambient temperature environment (when air flow is 0.7m/s) and can be used in various environments.
    • *1There is derating depending on the load condition. For details, refer to Installation Conditions.
