EAD(LPCI)BE_img1EAD(LPCI)BE_img1

EAD(LPCI)BE

  • Capable of expand the PCI bus (5V/32-bit, 33 MHz) from a single PCI bus slot in the PC.
  • A suitable PCI bus expansion chassis can be selected, according to the number of slots and board size required.
  • Power supply controllable in response to the turning on/off of the PC’s power supply.
  • Supporting both of Low Profile and standard PCI slots (exchangeable with the bundled bracket).

Data Sheet PDF

SKU: EAD(LPCI)BE Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

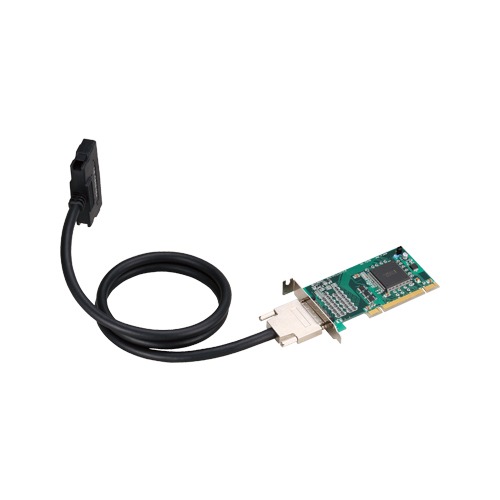

The EAD(LPCI)BE is an expansion adapter that connects the optional expansion chassis ECH(PCI)BE to a PC to extend a PCI bus expansion slot in the PC, thereby providing additional PCI bus expansion slots.

  • Capable of expand the PCI bus (5V/32-bit, 33 MHz) from a single PCI bus slot in the PC.
  • A suitable PCI bus expansion chassis can be selected, according to the number of slots and board size required.
  • Power supply controllable in response to the turning on/off of the PC’s power supply.
  • Supporting both of Low Profile and standard PCI slots (exchangeable with the bundled bracket).

Specifications

Specifications
Add-on Module
Series
Bus Specification PCI
Size Low Profile
Used Connector 0.8mm-pitch 68-pin (Female)
Bus Bridge
Method Bus extension (Type BE)
Function PCI-to-PCI

Ordering Informations

Ordering Information
Model Description Certification
EAD(LPCI)BE PCI Bus Expansion Adapter for Low Profile PCI PC-Slot
  • CE marking
  • VCCI
Options
Expansion box
Item Item Name
ECH-PCI-BE3-F13A Bus extension type PCI bus expansion chassis (long x 13, power supply built-in)
ECH-PCI-BE3-F4B Bus extension type PCI bus expansion chassis (long x 4)
ECH-PCI-BE3-F7A Bus extension type PCI bus expansion chassis (long x 7, power supply built-in)
ECH-PCI-BE3-H2B Bus extension type PCI bus expansion chassis (short x 2)
ECH-PCI-BE3-H4B Bus extension type PCI bus expansion chassis (short x 4)
ECH-PCI-BE3-H7A Bus extension type PCI bus expansion chassis (short × 7, power supply built-in)
Extended Warranty Service
Item Item Name
ESP-F5 Extended warranty service package (5 years service course) (Japan only)
ESP-S1 Extended warranty service package (Extension one year) (Japan only)
