Conduit fittings and drain/breather valves

Flameproof fittings for Zone 1/2 – 21/22

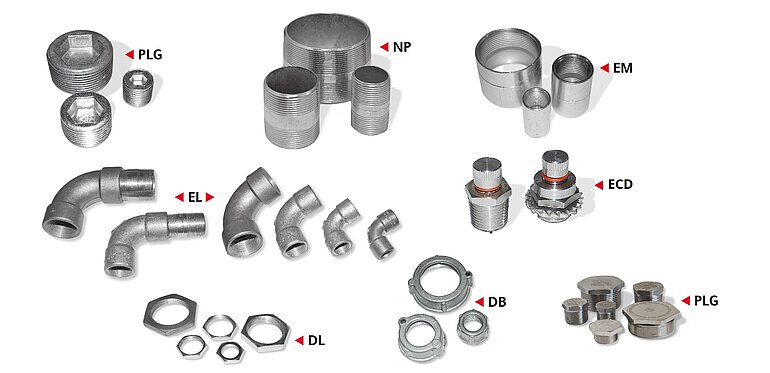

PLG… – NP… – EM… – EL… – DL… – DB… – ECD

Immediate mechanical connection between devices, conduit pipes, enclosures, apparatus, and so on.
Conduit fittings are used in rigid/IMC conduit systems to connect different sizes of conduit together or enclosures and apparatus between them.

Category: Ex Conduit Fittings

Description

Technical Data

Manuals/Operating Instructions/Guides

Declarations

Data Sheets

Flameproof Ex d conduit fittings BARTEC are designed to be installed in industrial plants, where potential hazardous atmos-pheres occur.These areas are either classified as zone 1 and 2 or as zone 21 and 22.Made in different materials to satisfy any type of application in environments with the presence of aggressive corrosion agents.

Marking

ATEX:(Ex II 2 G) Ex db IIC Gb(Ex II 2 G) Ex eb IIC Gb(Ex II 2 D) Ex tb IIIC Db IP66IECEx:Ex db IIC GbEx eb IIC GbEx tb IIIC Db IP66

Ambient Temperature

-60 °C to +130 °C (standard)

Certification

ATEX: EN
ATEX (INERIS): EN
IECEx: EN
IECEx (INERIS): EN
CCC: EN
ECASEx: EN
INMETRO (plugs): PT
INMETRO (Drain valve): PT
INMETRO (Nipples): PT
INMETRO (Elbows): PT
CCOE-PESO: EN
NEC505 (Fittings): EN
NEC505 (Valves): EN

Technical Data

Protection class	IP 66 or IP 68 (IEC/EN 60529)
Material	Aluminium alloy Galvanized steel Nickel plated brass Stainless steel
Weight	see data sheet
Dimensions	see data sheet

Conduit fittings and drain/breather valves

Flameproof fittings for Zone 1/2 – 21/22

PLG… – NP… – EM… – EL… – DL… – DB… – ECD

Marking

Ambient Temperature

Certification

Technical Data

Manuals/Operating Instructions/Guides

ATEX – Instruction for use – Drain/Breather valve

ATEX – Instruction for use – Conduit fittings

IECEx – Instruction for use – Drain/Breather valve

IECEx – Instruction for use – Conduit fittings

INMETRO – Instruction for use – Drain/Breatheer valve

INMETRO – Instruction for use – Conduit fittings

NEC505 – Instruction for use – Drain/Breather valve

NEC505 – Instruction for use – Conduit fittings

Declarations

ATEX – Declaration of conformity – Drain/Breather valve

ATEX – Declaration of conformity – Conduit fittings

IECEx – Declaration of conformity – Drain/Breather valve

IECEx – Declaration of conformity – Conduit fittings

Data Sheets

Data sheet – Conduit fittings, locknuts, bushings, drain/breather valves
