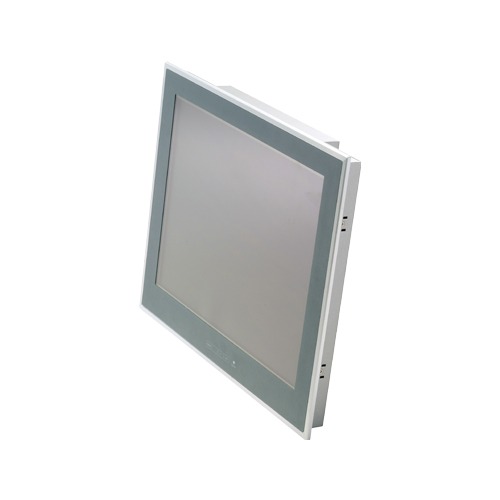

FPD-H71XT-DC1_img1FPD-H71XT-DC1_img1

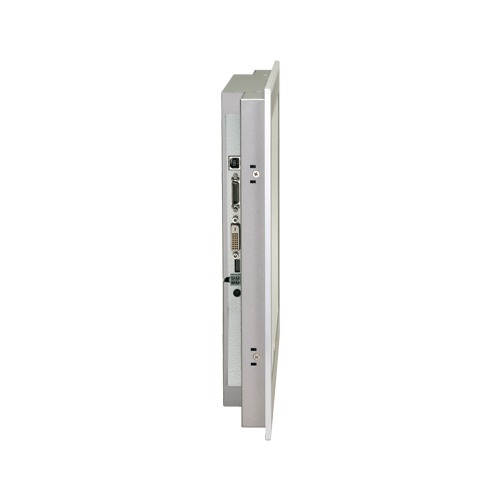

FPD-H71XT-DC1

Data Sheet PDF

SKU: FPD-H71XT-DC1 Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

These products are two inputs (LVDS or DVI-D sign) compatible, panel-mounted, TFT LCD display unit for use with host computers such as the CONTEC IPC series and SBCs (single board computers). Touch panel is available via RS-232C (Built-in video cable) or USB connection. Because It is compatible with product IPC-DT60(panel mount model 61) series and panel installation conventionally, substitution is possible.

    • LVDS and DVI-D inputs, that are less affected by the interference of noise, are supported for host computer connection. Because of the digital signal input, up to 5 m of cable length is available. The video signal and touch panel signal can be connected with one cable depending on the host PC to be connected. Full-bright, wide-angle-of-visibility type of liquid crystals capable of displaying up to 16,777,216 colors on the 15 inches and 262,144 colors on the 12.1 inches by adopting the lightweight aluminum-made front.
    • These products have analog touch panel enabling mouse emulation using driver software. Touch panel is available via RS-232C (Built-in video cable) or USB connection.
    • Because It is compatible with product IPC-DT60(panel mount model 61) series and panel installation conventionally, substitution is possible.
    • Front side in IP65-rated dustprotection/drip-protection structure
    • An optional AC adapter (IPC-ACAP12-02), stand (IPC-SND-03) and connection cable is available to run the display from the AC power supply, to use as a desktop display and for connection to the host computer.

Specifications

Specifications
Mechanical Design
Mounting Panel Mount
Touch Screen
LCD size 15-inch
LCD resolution 1024 x 768 (XGA)
Touch panel resolution –
Detection method Analog resistive touch
Interface (TP)
Video input DVI
Touch panel input –
Power
Input voltage 12 to 24VDC
Environment
Operating temperature 0 to 50°C (32 to 122°F) (with no airflow); 0 to 40°C (32 to 104°F), (using AC adapter)
Storage temperature -10 to 60°C (14 to 140°F)
Standards & Certifications VCCI Class A

Ordering Informations

Ordering Information
Model Description Certification
FPD-H71XT-DC1 [Limited Stock] [End of Repair Service : November 27, 2031] Panel-Mount FLAT PANEL DISPLAY with LVDS&DVI-D input(15 inch)
  • VCCI
Options
Cable
Item Item Name
IPC-DVI/D DVI-PanelLink Conversion Display Cable
Power Supply / AC Adapter
Item Item Name
IPC-ACAP12-04A AC Adapter (Input:100-240VAC, Output:12VDC 4A)
PWA-65AWD1 AC Adapter(12VDC)
PWA-90AWD1 AC Adapter(12VDC)
Other Accessories
Item Item Name
IPC-CV15 Protection Cover for 15-inch PANEL-PC (10Sheet/Set)
IPC-SND-03 Table Stand kit for flat-panel display
