FPD-V11WB-10

SKU: FPD-V11WB-10 Category: FPD-Flat Panel Displays Tag: Equvera-Contec Brand: Contec

Description

Specifications

Ordering Informations

This product is an LCD for use in combination with a host computer such as Contec’s IPC Series.

HDMI and USB Type-C (DP Alt mode) input support
- This product supports HDMI and USB Type-C (DP Alt mode) input.
USB PD support
- This product supports USB PD (Power Delivery), enabling video input, touch panel communication, and power supply simultaneously with a single cable when connected to a compatible PC.
Host PC power supply interlock function

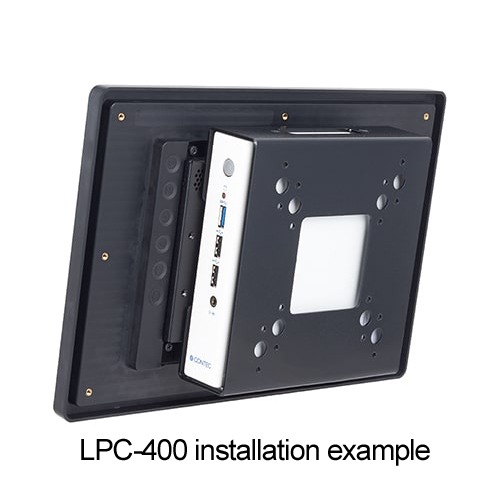

- When connected to an LPC-400* FA computer via HDMI, the connected PC can be turned on or off in conjunction with the power status of this product.
  * Support may vary depending on the time the product was sold. Contact your retailer for more information.

Specifications

Mounting	Panel Mount; VESA 100 x 100

LCD size	11.6-inch
LCD resolution	1920 x 1080 (Full HD)
Touch panel resolution	–
Detection method	Projected capacitive touch (PCAP)

Video input	DisplayPort; HDMI
Touch panel input	USB

Input voltage	11.4 to 12.6VDC; 90 to 264VAC

Operating temperature	0 to 40°C (32 to 104°F)
Storage temperature	-10 to 50°C (14 to 122°F)
Standards & Certifications	CE; FCC Class A; UKCA; VCCI Class A

Model	Description	Certification
FPD-V11WB-10	11.6-inch FLAT PANEL DISPLAY

Item	Item Name
PWA-36AWD2	Switching AC Adapter (12VDC 3.0A)

Item	Item Name
FPD-BKT11W-IMNT	Waterproof gasket and mounting bracket set for FPD-V11WB-10
FPD-GSK11W-OMNT	Waterproof gasket for FPD-V11WB-10
