GMB-AQ47000

Overview / Features

This product is a ATX form factor industrial mainboard which based on Intel® Core™ Processors that offer 14nm Hi-K process technology with energy efficient architecture. GMB-AQ47000 adopts four DDR4 UDIMM sockets and supports up to 128GB memory.
Desktop SKU solutions are suitable for factory automation applications. Moreover, with the high performance and high-end specifications, GMB-AQ47000 is our Comet Lake-S platform on industrial motherboard product line

Usage Examples

Factory automation

Factory production/measurement line

Vision processing terminal

Factory manufacturing equipment

• Intel® 10th Comet Lake-S Platform
  • This product is equipped with the 10th generation Intel® Core™ processors. Adopting embedded-type CPU contributes to a stable supply.Following CPUs are recommended for customer reference;Intel® Core™ i9 / i7 / i5 /i3 up to 125W TDP.
• Multi-display Supported
  • Full HD video can be smoothly played.It also supports full HD output of the three-screen with VGA, DisplayPort, and HDMI.
• Dual Gigabit Ethernet

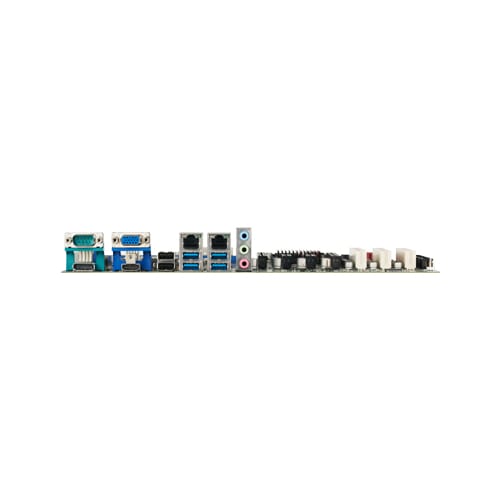

  • The product has 2 RJ45 connectors on rear I/O for customer usage, which are 1 x Intel® I219LM + 2 x Intel® I211T PCIe chip.
• Extend Peripherals Freely Rich Interface
  • This product is equipped with a variety of interfaces such as serial port, USB 3.2/ 2.0, 8-bit GPIO, audio jack, Line-out/ Mic-in, M.2 Key M, LAN, HDMI,DP,VGA ect. For customers with various needs.
