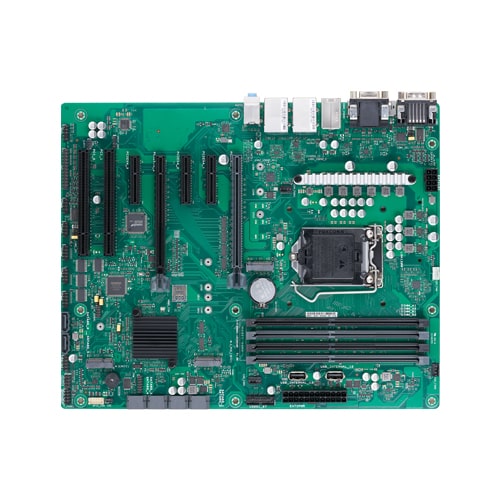

GMB-AQ47001

Overview / Features

GMB-AQ47001 is based on Intel ® Q470E chipset and Desktop processors including Intel® 10 th Gen Core® i3/i5/i7 SKU. This board supports DDR4, PCIe 3.0, and SATAIII. Those features help you to build high performance and stabile system.

Usage Examples

Factory automation

Factory production/measurement line

Vision processing terminal

Factory manufacturing equipment

• Intel® 10th Comet Lake-S Platform
  • This product is equipped with the 10th generation Intel® Core™ Pentium® Celeron® processors. Adopting embedded-type CPU contributes to a stable supply as below list.Following CPUs are recommended for customer reference;Intel® Core™ i9 / i7 / i5 /i3 Pentium® Celeron® processors
    CPU Selection Guide (Non-ECC memory supported):
    Intel Core i9-10900E
    Intel Core i9-10900TE
    Intel Core i7-10700E
    Intel Core i7-10700TE
    Intel Core i5-10500E
    Intel Core i5-10500TE
    Intel Core i3-10100E
    Intel Core i3-10100TE
    Intel Pentium Gold G6400E
    Intel Pentium Gold G6400TE
    Intel Celeron G5900E
    Intel Celeron G5900TE
• High expandability for Vision application
  • This product is equipped with a variety of interfaces such as serial port, USB3.2/2.0, 8-bit GPIO, Audio jack, Line-out/Mic-in, Giga LAN, HDMI, ect. for customers with various needs. It also provides high expandability such as M.2 Key M/Key B/Key E, 2x PCIe x16 sltos(1x 16 mode / 2x 8 mode), 3x PCIe x4 slots and 2x PCI slots for for vision application.
• 4 displays Supported
  • Supports output of the VGA, Dual DisplayPort, and HDMI.
• Dual Gigabit Ethernet
  • The product has 2 RJ45 connectors on rear I/O for customer usage, which are Intel® I225V + Intel® I219LMchip.
