GMB-AW48000

Overview / Features

GMB-AW48000 supports 10th Gen Intel® Xeon W-1200E series processors, includes support Microsoft Windows 10 IoT Enterprise 2019, as well as up to 128GB DDR4-2933 U-DIMM with ECC/non-ECC available to detect and repair errors that cause data corruption and system crashes. Moreover, software RAID (Redundant Array of Independence Disks) function is supported to ensure data security and backup requirements.The Product up to 10 cores and 20 threads for improved throughput, LGA 1200 socket scalability, embedded use conditions, and long-term product availability, 10th Gen Intel Core processors provide a solid foundation for IoT platforms.

Usage Examples

Semiconductor / LCD manufacturing

Factory-inspection / measurement line

Vision processing terminal

EV Battery Factory

• High-end Server Grade Performance and Protection
  • GMB-AW48000 design based on Comet Lake-S platform features up to 10 cores, hyper threading on all models, single-core turbo boost up to 4.8 GHz. DDR4-2933 memory supports for i3, i5, i7, i9, and 10th Gen Intel® Xeon® W-1200E Series processors include error-correcting code (ECC) capabilities.
• Media & Display Features for Premium 4K Content Support
  • Support for three simultaneous, independent displays Edge devices with a 10th Gen Intel Core processor inside have three external device driver interface (DDI) ports, include 1 x HDMI, 1 x DP, 1 x VGA, support 4K up to 4096×2304@60Hz with Intel® UHD Graphics 630.
• Software RAID available
  • GMB-AW48000 build-in 6 x SATAIII connector support RAID 0, 1 ,5,10 level function. When connecting 2 to 4 HDD or SSD storage device allows customers to expand the capacity and do storage devices maintenance easily. Moreover, the RAID function can guarantee data security and fulfill backup requirement.
• Rich I/O design for Expansion Slots & Extend Peripherals

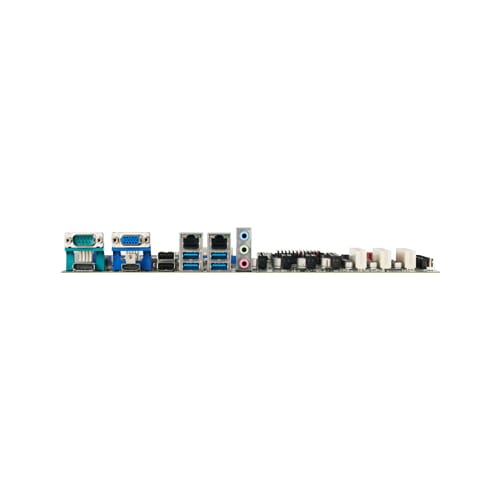

  • This product has 1 x PCIe x16 (or 2 x PCIe x8), 2 x PCIe x4, and 3 x PCI. For M.2 interface support 1x M.2 Key M 2242/2280 type, 1x M.2 Key E 2230, 1x M.2 Key B 3042/3052 type (with SIM card holder). Besides, 1 x Giga LAN, 1 x 2.5 Giga LAN, up to 6 x COM, up to 6 x USB 2.0, and up to 6 x USB 3.2. Rich I/O design can fulfill expansion requirements.
• Manageability at the edge
  • GMB-AW48000 with Intel® Active Management Technology (Intel® AMT), a feature of the Intel vPro® platform, enables IT to access, maintain, and manage edge devices that are off-site or difficult to physically access—even when the device, hardware, or operating system are powered off or malfunctioning.
