GMB-IQ67010

Overview / Features

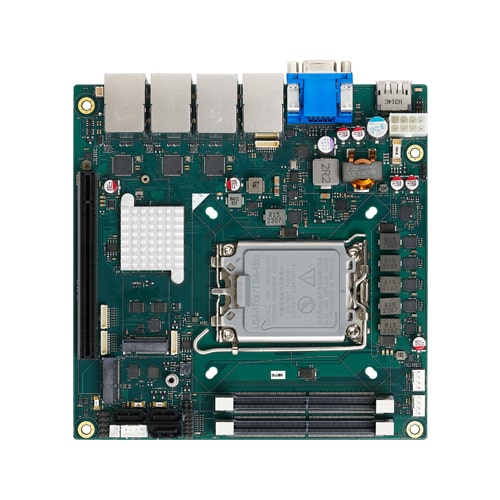

This product is a Mini-ITX form factor industrial mainboard, built around 12th & 13th Intel® Core™ Processors that leverage advanced 7nm process technology with an energy-efficient architecture. The GMB-IQ67010 boasts two DDR5 SO-DIMM sockets, accommodating 64GB of memory. Designed to meet the board demands of factory automation applications. Furthermore, GMB-IQ67010 stands out as a high-performance, toptier solution within our Industrial Motherboard product line, aligning with our Alder Lake-S & Raptor Lake-S platform architecture. With this mainboard, you can expect smooth and efficient operation, making it an ideal choice for industrial settings where reliability and performance are paramount.

• Intel® 12th / 13th Gen. Alder Lake-S / Raptor Lake-S Platform
  • This product is equipped with the 12th / 13th generation Intel® Core™ processors, utilizing an embedded-type CPU for stable supply.
• Supports up to DDR5-4800 SO-DIMM Max 64GB (Non-ECC)
  • 2 x DDR5-4800MHz SO-DIMM Up to 64GB(Non-ECC).
• Dual display supported

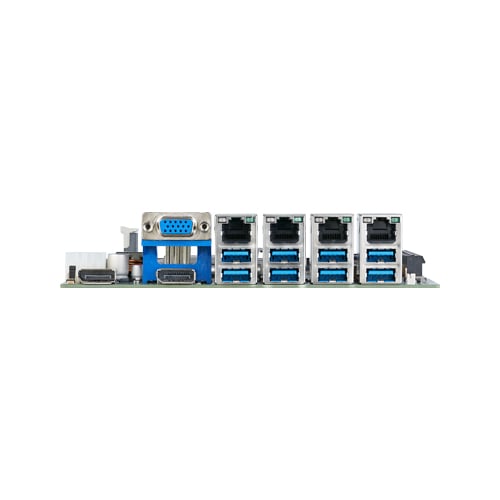

  • 2 x Display port 1.2 (3840 x 2160 @60Hz) and 1 x VGA (1920 x 1080 @60Hz) on rear I/O are available.
• Supports 4 x RJ45 Gigabit LAN ports
  • 1 x 10/100/1000 BASE-T(Intel®i219LM), and 3 x 10/100/1000 BASE-T(Intel®i210AT).
• Equipped with rich interfaces
  • Dual Display Port 1.2 + VGA + 8 x USB3.2 + 2 x USB2.0 ports and 3 x SATAIII (supports RAID 0, 1, 5, 10).
• DC-In power range from 12 to 24VDC
  • DC-In 12 to 24 VDC power connector.
