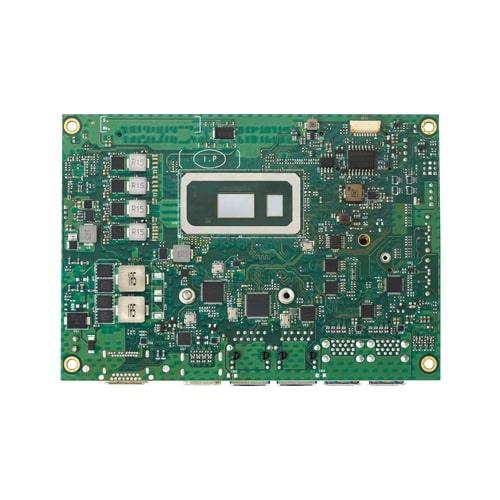

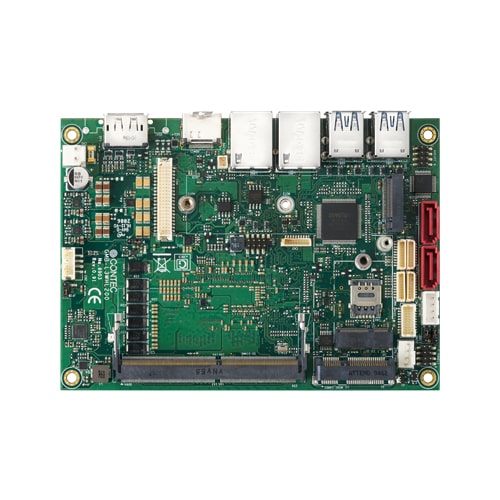

The industrial-grade GMB-L3WHL300, with size of 146mm(5.75in) x 102mm(4.02in), has high computing power, triple-display capability, and various expansion slots make it well-suited for factory automation, intelligent transportation, digital signage, self-service kiosks, and medical applications. The GMB-L3WHL300 supports one 260-pin DDR4-2400 SO-DIMM socket for up to 16GB of memory. To meet customer various needs, it also equipped with one Full-sized Mini PCIe slot, M.2 Key M with mSATA support, and M.2 Key E with SIM socket. In addition, it utilizes Intel UHD graphics 620 to provide and feature triple-display capability through HDMI, DisplayPort and LVDS interfaces which enable multi-display in a limited space. Moreover, it has one RS-232/422/485 port, three RS-232 ports, two gigabit ethernet ports with Intel i219LM and i210AT controllers, four USB3.2 Gen.2 ports, two USB2.0 ports, audio interface (Mic-in and Line-out), one 16-bit GPIO port, one HDMI, one DisplayPort, and one LVDS port. GMB-L3WHL300 can operates in temperature range from 0°C to 60°C (32 to 140°F) and has 12 to 24VDC power supply input.This product is in compliant with the following standards: CE, FCC and VCCI.
Medical application
Factory automation
Self-service kiosks
Digital signage
| Type | 3.5-inch |
|---|
| Supported OS | Windows 10 IoT Enterprise 2019 LTSC 64-bit |
|---|
| CPU Generation (Development code) | 8th Gen. (Whiskey Lake-U) |
|---|---|
| Processor | Core i5-8365UE |
| CPU socket | – |
| Memory | up to 64GB |
| RAS | Hardware monitor (Fan speed / Temperature / Voltage); Watchdog timer |
| GPU | – |
| AI Performance | – |
| Security | TCG TPM 2.0 |

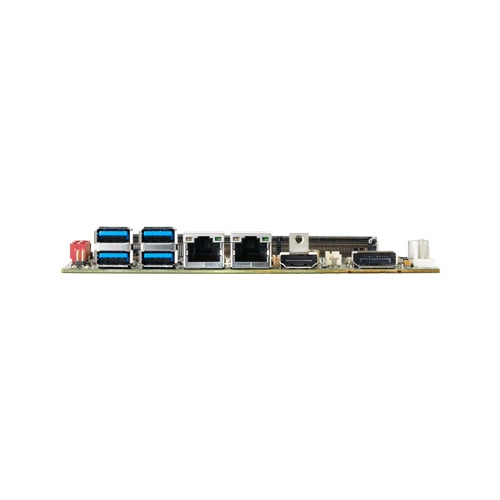

| Video | 1x DisplayPort; 1x HDMI; 1x LVDS |
|---|---|
| LAN | 2x 2500BASE-T |
| Wireless | – |
| Audio | – |
| I/O | 4x USB3.2 Gen2 |
| Memory card | – |
| Video | 1x DisplayPort |
|---|---|
| LAN | 1x 100BASE-TX |
| Audio | 1x Line out; 1x Mic-in |
| I/O | 2x USB2.0; 2x RS-232C; 1x RS-232C/422A/485 |
| Power connector | – |
| Expansion bus | 1x M.2 Key E (2230); 1x M.2 Key M (2280); 1x Mini PCI Express |
|---|---|
| Drive bay | – |
| Input voltage | 12 to 24VDC |
|---|
| Operating temperature | 0 to 60°C (32 to 140°F) w/ 0.7m/s airflow |
|---|---|
| Storage temperature | -10 to 70°C (14 to 158°F) |
| Standards & Certifications | CE; FCC Class A |
| Model | Description | Certification |
|---|---|---|
| GMB-L3WHL310 | 3.5-inch SBC, Intel® Whiskey Lake-U Core™ i5-8365UE Processor, DDR4 SDRAM |
|
