GMB-PTGL

Overview / Features

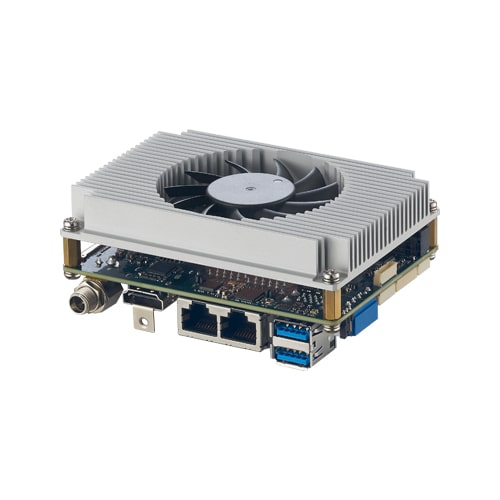

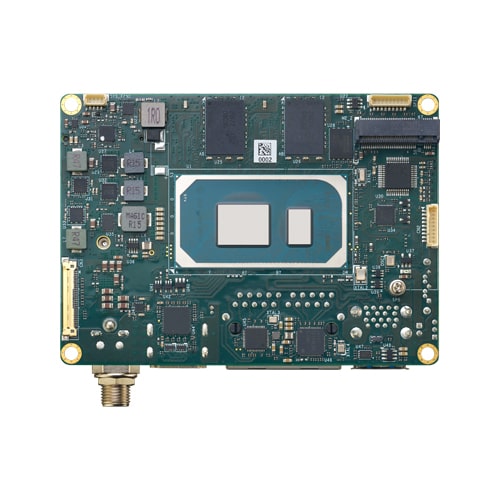

This product is a 2.5-inch Pico-ITX form factor industrial mainboard which based on Intel Tiger Lake UP3 platform by Core i3-1115G4E/Core i5-1145G7E/Core i7-1185G7E Processor with Windows 10 IoT Enterprise 2021 (4 languages) supported. The industrial-grade GMB-PTGL200/300/400, with size of 100mm x 72mm, has high computing power, and various expansion slots make it well-suited for factory automation, intelligent transportation, digital signage, self-service kiosks, and medical applications. The Product supports On Board DDR memory up to 16GB To meet customer various needs, it also equipped with one M.2 key M Slot with NVMe support, and M.2 key E slot for Wi-Fi/ Bluetooth module. In addition, it utilizes Intel Iris Xe Graphics by to provide and feature capability through HDMI, Moreover, it has one RS-232/422/485 port, and RS-232 ports, two ethernet ports with Intel i219LM and i225iT controllers, two USB3.1 ports, two USB2.0 ports, audio interface(Mic-in, Line-in, and Line-out), one 4-bit GPIO port, one HDMI, and one eDP port. The product can operates in temperature range from 0°C to 60°C (32°F to 140F°C)and has +12 to 24V DC power supply input.

Usage Examples

Medical application

Factory automation

Self-service kiosks

Digital signage

• Intel 11th Generation Core Processor (Tiger Lake UP3 SoC)
  • The heart of the GMB-PTGL Series is the Intel Tiger Lake UP3 platform core processor. Renowned for its advanced processing capabilities, including multiple cores and threads, and improved graphics performance, it sets a new standard for efficiency and performance in embedded systems.
• Memory and Storage Options
  • Onboard 16GB memory by LPDDR4x-3200 provides ample memory for processing, while the storage options, including M.2 key M & SATA interfaces, allow for flexible configurations using SSD or HDD storage.
• Versatile Connectivity

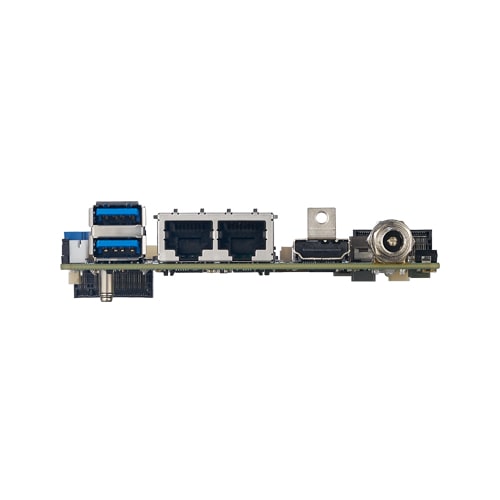

  • Featuring a range of connectivity options, including Ethernet ports, USB ports, HDMI video output, and Dual RJ-45 LAN interface supporting 2.5GbE & one GbE port, the GMB-PTGL Series ensures seamless integration into various environments.
• Versatile in various applications
  • From revolutionizing real-time monitoring in industrial automation to powering vibrant digital signage experiences and serving as the computing core for advanced medical devices, the GMB-PTGL Series redefines possibilities in diverse applications.
• Security by TPM2.0 & Wide range DC input
  • Wide range DC input 12 to 24 VDC ±10%
