GPC-700_img1GPC-700_img1

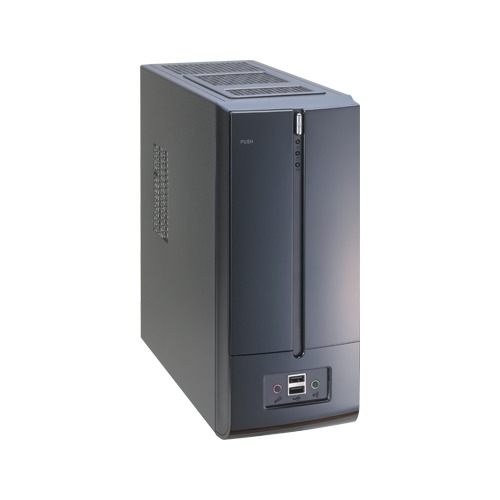

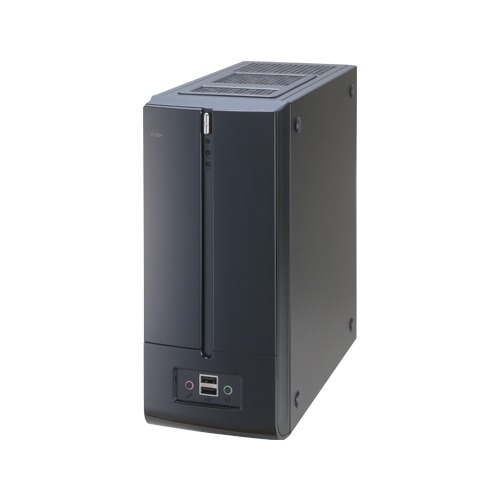

GPC-700

  • Equipped with Powerful 6th Gen. Intel® Core™ processor for edge computing
  • 3 independent Gigabit LAN ports to connect different network segments
  • Built-in GPU supports 4K resolution and output to three screens
  • Equipped with one expansion slot that can house Low Profile PCI Express(x16) card
  • Conforming to 21 global standards

Data Sheet PDF

SKU: GPC-700 Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

This product is a high-performance embedded-type personal computer equipped with the 6th-generation Intel ® Core ™ processor.It has extension interfaces such as DVI-I, HDMI, DisplayPort, 1000BASE-T, USB 3.1 Gen1 (USB3.0), serial and Audio. These Units are ideal for a wide range of embedded applications, such as control devices and information terminals based on general-purpose PC OSes.Embedded-type chipset and CPU have been adopted. The use of readily available parts ensures the ease of the use of the product.

  • Equipped with Powerful 6th Gen. Intel® Core™ processor for edge computing
    • The product is equipped with the 6th-generation Intel ® Core ™ Core i5-6500 (Skylake) processor and greatly realizes lower-power consumption while ensuring fine performance of operation tasks and drawing. Adopting embedded-type CPU contributes to a stable supply.
  • 3 independent Gigabit LAN ports to connect different network segments
    • Three Gigabit LAN ports are equipped. It is ideal for IoT gateway applications that interconnect different network hierarchies such as field buses in the factory, controllers, and higher information system networks.
  • Built-in GPU supports 4K resolution and output to three screens
    • Support Intel HD Graphics 530. High definition video of 4K quality can also be played smoothly. It supports 3 screen outputs by DVI-I, DisplayPort and HDMI.
  • Equipped with one expansion slot that can house Low Profile PCI Express(x16) card
    • An expansion slot that can mount one Low Profile PCI Express (x16) card is equipped.
  • Conforming to 21 global standards
    • This product is conforming to the below standards
      Japan (VCCI), United States of America (FCC, CSA), Canada (CSA), Mexico (NOM), Argentina (IRAM), Europe (CE), Great Britain (UKCA), Ukraine (Ukr Sepro), Moldova (INSM), Israel (IEC / Israel 60950), China (CCC), South Korea (KC), Taiwan (BSMI), Oceania (RCM), Singapore (PSB), South Africa (NRCS LOA), Cambodia (KS Compliance), Kenya (PVoC), Nigeria (SONCAP), Serbia (KVALITET), India (BIS)
      (This is the information as of May 2023.)

Specifications

Specifications
Mechanical Design
Mounting Desktop
Software Support
Supported OS Windows 10 IoT Enterprise 2019 LTSC 64-bit; Windows 10 IoT Enterprise 2019 LTSC 64-bit with Microsoft Edge (Chromium); Windows 10 IoT Enterprise LTSB 2016 64-bit
Core System
CPU Generation (Development code) 6th Gen. (Skylake-S)
Processor Core i5-6500
CPU socket LGA1151
Memory 16GB; 8GB
RAS Hardware monitor (Temperature / Voltage); Remote power-on
GPU –
AI Performance –
Security TCG TPM 2.0
Interface

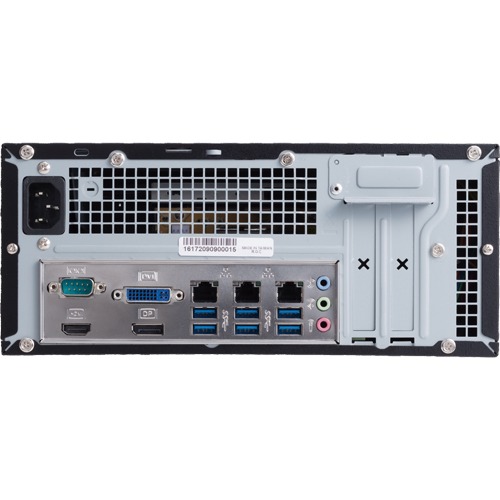

Video 1x DisplayPort; 1x HDMI; 1x DVI-I
LAN 3x 1000BASE-T
Wireless
Audio 1x Line out; 1x Line in; 1x Mic-in
I/O 6x USB3.2 Gen1 (USB3.0); 2x USB2.0; 1x RS-232C/422A/485
Memory card –
Expansion Slot
Expansion bus 1x PCI Express(x16)
Drive bay 2x 2.5-inch bay (SATA)
Power
Input voltage 100 to 240VAC
Environment
Operating temperature 5 to 40°C (41 to 104°F)
Storage temperature -20 to 60°C (-4 to 140°F)
Standards & Certifications BIS; BSMI; CCC; CE; CSA; FCC Class B; IEC/Israel 60950; INSM; IRAM; KC; KS Compliance; KVALITET; NOM; NRCS LOA; PSB; PvoC; RCM; SONCAP; UKCA; Ukr Sepro; VCCI Class B

Ordering Informations

Ordering Information
Model Description Certification
GPC-700 [Limited Stock] [End of Repair Service : July 24, 2031] BTO Model (Core i5-6500 3.2GHz Processor) / 21 Standards
  • CCC compliant
  • CE marking
  • FCC compliant
  • RCM
  • VCCI
BTO model

This product is ordered by BTO (Build to Order) method. Please inform the dealer about the BTO menu and request a quotation.

Memory
  • 8GB (1 x 8GB)
  • 16GB (2 x 8GB)
optical drive
  • None
  • DVD super multi drive
Storage
  • 1 x 500GB HDD(Last Order: 13 Dec, 2024)
  • 2 x 500GB HDD(Last Order: 13 Dec, 2024)
  • 1 x 240GB SSD(MLC)
  • 2 x 240GB SSD(MLC)
RAID configuration
  • None
  • Software-RAID
OS
  • Windows 10 IoT Enterprise LTSB 2016 64bit (English/Chinese/Japanese/Korean)
  • Windows 10 IoT Enterprise 2019 LTSC 64-bit with Microsoft Edge (Chromium) (English/Chinese/Japanese/Korean)
  • Windows 10 IoT Enterprise 2019 LTSC 64bit (English/Chinese/Japanese/Korean)
AC cable *1
  • None
  • Japanese Model AC Cable
  • Global Model AC Cable *2

* There are combinations that cannot be configured. Please inquire in detail.
*1 It is possible to select both the AC cable for Japan and a global Model AC cable together. *2 Global Model AC Cable can be selected from “North America, EU, Argentina, Mainland China, Australia/New Zealand, Brazil, South Korea/Russia, South Africa, Israel, Switzerland, United Kingdom, Taiwan.”
