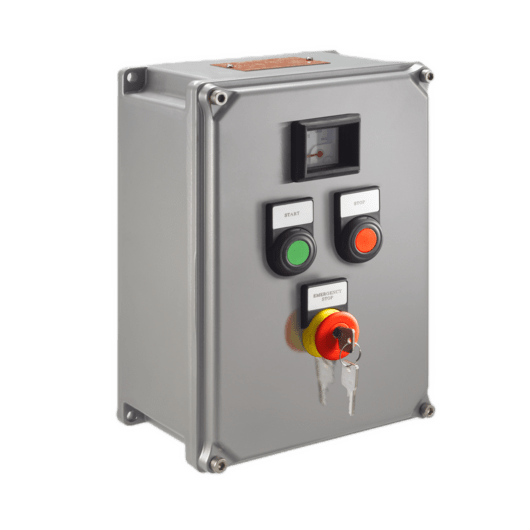

Increased safety Ex ed Control stations BARTEC ESACS.. and ESXCS.. series are designed to be installed in industrial plants, where potential hazardous atmos-pheres occur.These areas are either classified as zone 1 and 2 or as zone 21 and 22.The protection mode are:
ATEX:(Ex II 2 G) Ex d e ia/ib mb IIC T6 orT5 or T4 Gb(Ex II 2 D) Ex tb IIIC T85°C or T100°C or T135°C Db IP65/IP66(Ex II 3 GD) Ex ec ia/ib IIB or IIC T6 orT5 or T4 Gc(Ex II 3 GD) Ex tc IIIC T85°C or T100°C or T135°C Dc IP65/IP66IECEx:Ex d e ia/ib ia ib mb IIC T6 / T5 / T4 / T3 GbEx tb IIIC T85°C / T100°C / T135°C / T200°C Db IP65/IP66Ex ec ia/ib/ic IIB or IIC T6 / T5 / T4 /T3 GbEx tc IIIC T85°C / T100°C / T135°C / T200°C Db IP65/IP66
-60 °C to +60 °C (standard)
| Protection class | IP 66 (IEC/EN 60529) |
|---|---|
| Material | Copper free aluminium light alloy Stainless steel AISI 316L |
| Weight | see data sheet |
| Dimensions | see data sheet |
