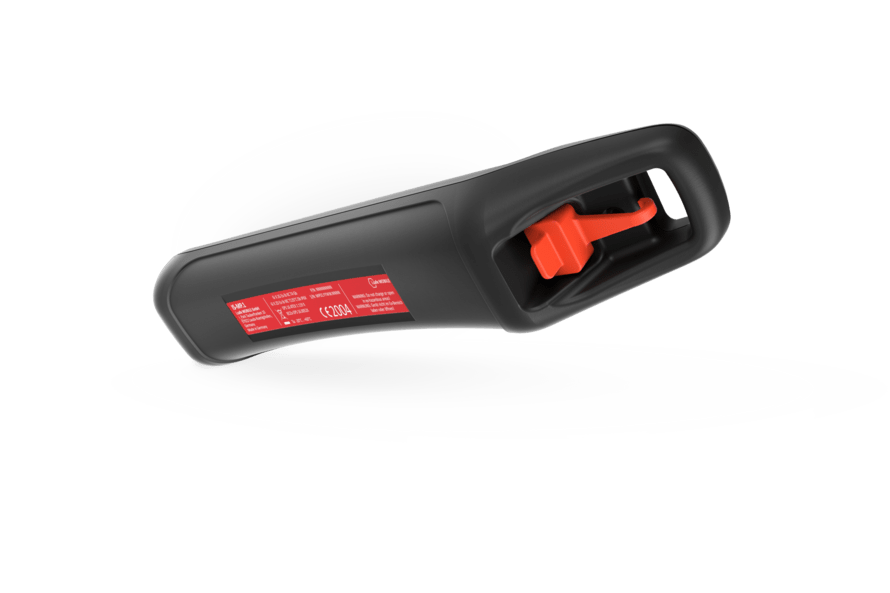

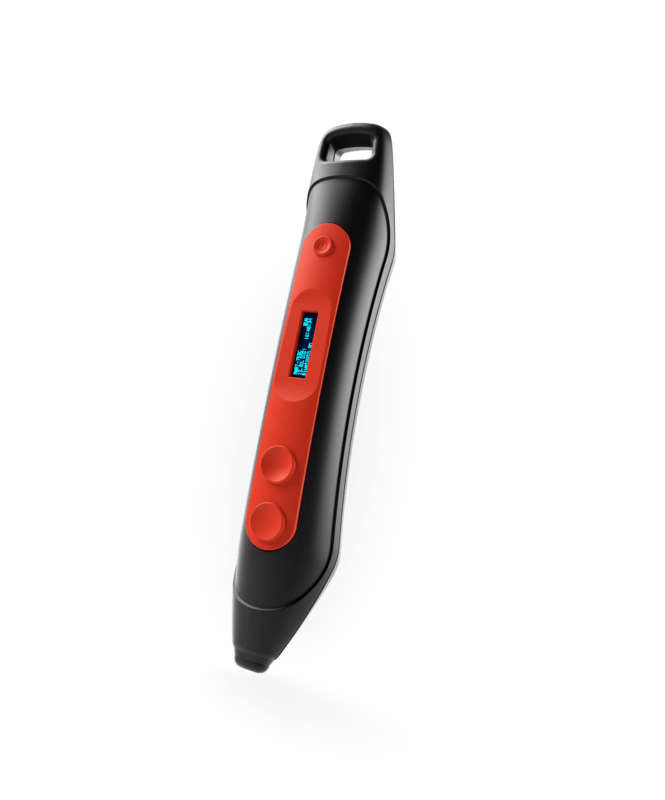

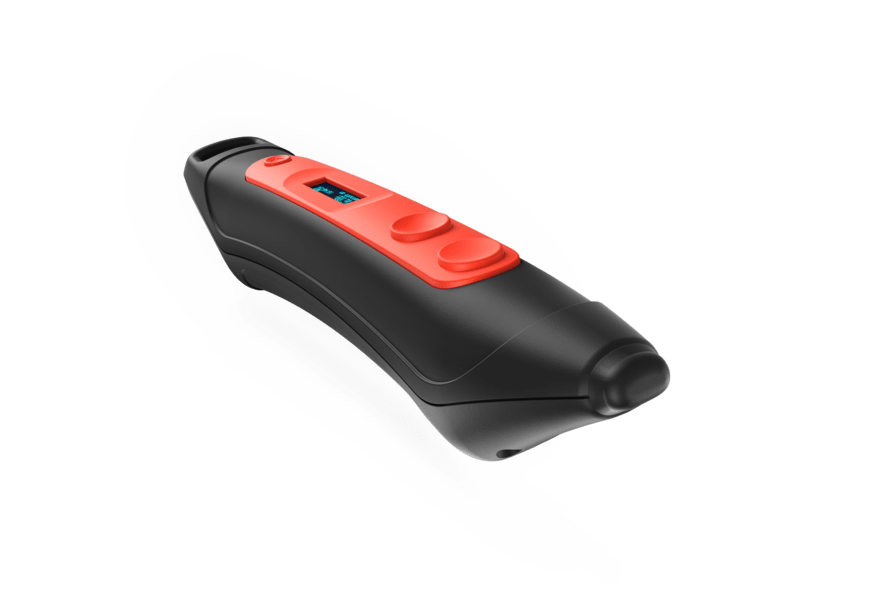

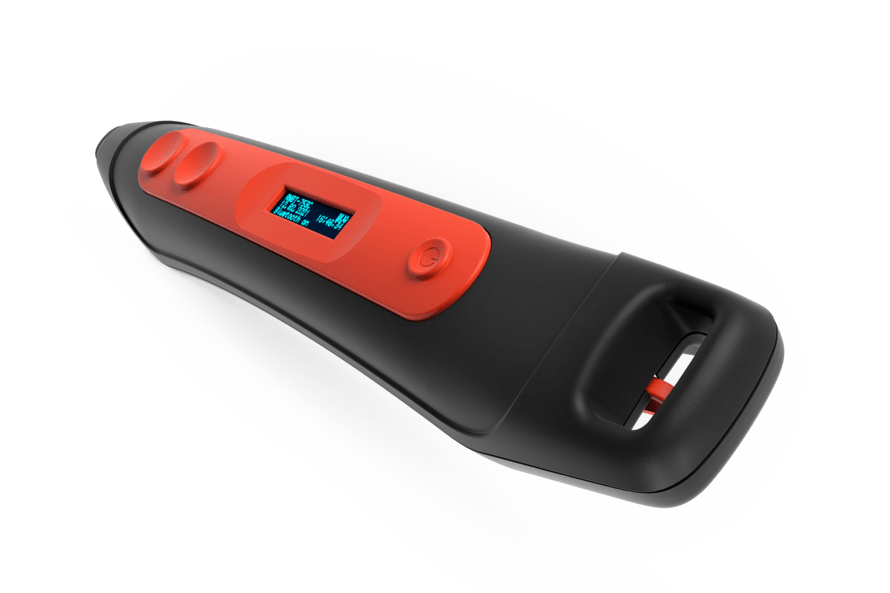

The Handheld Reader facilitates the uncomplicated and efficient reading of RFID/NFC tags with different frequency range combinations, especially in hard-to-reach places. The RFID/NFC tag information can be read directly on the OLED display, transmitted via Bluetooth® or read out via USB. Due to its easy handling, the IS-MP.1 supports process optimization in the areas of maintenance, inventory, guard control systems and logistical processes.
| Dimensions | Size: 189,1 x 34,8 x 37,6 mm Weight: 146 g |
|---|---|
| Battery | 1000 mAh |
| Connectivity | Bluetooth® 4.0 |
| Types of protection | IP64 Usable from -20 °C to +60 °C |
| RFID frequency | LF: 125 kHz … 135 kHz / HF: 13,56 MHz / UHF: 868 MHz |
 ATEX |
Europe | II 2G Ex ib IIC T4 Gb II 2D Ex ib IIIC T135°C Db IP6X |
 IECEx |
International | Ex ib IIC T4 Gb Ex ib IIIC T135°C Db IP6X |
 |
Datasheet IS-MP.1 (English) | Download (PDF, 831 KB) |
 |
Manual IS-MP.1 | Download (PDF, 607 KB) |
 |
DoC IS-MP.1 | Download (PDF, 243 KB) |
 |
ATEX IS-MP.1 | Download (PDF, 880 KB) |
 |
IECEx IS-MP.1 | Download (PDF, 1 MB) |
