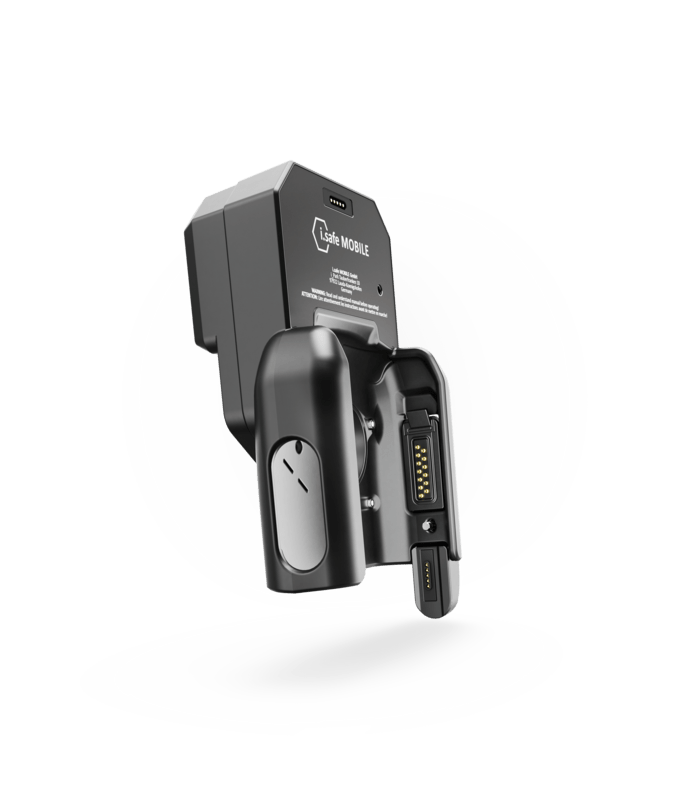

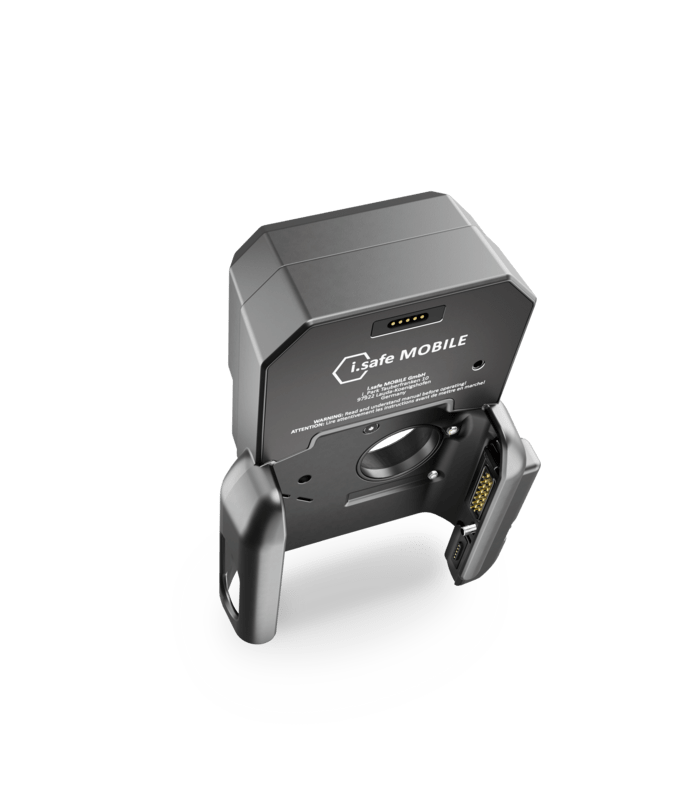

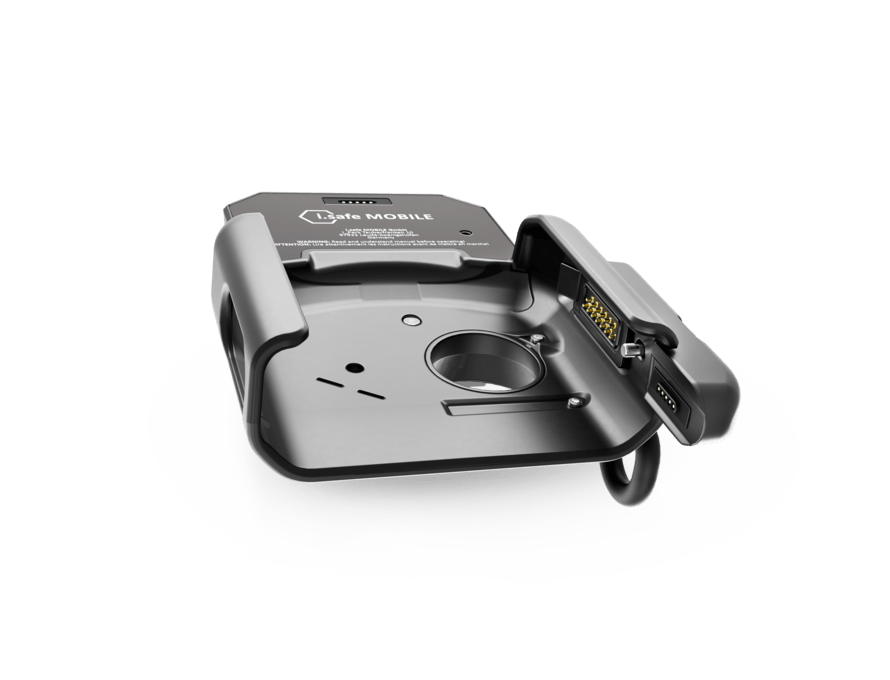

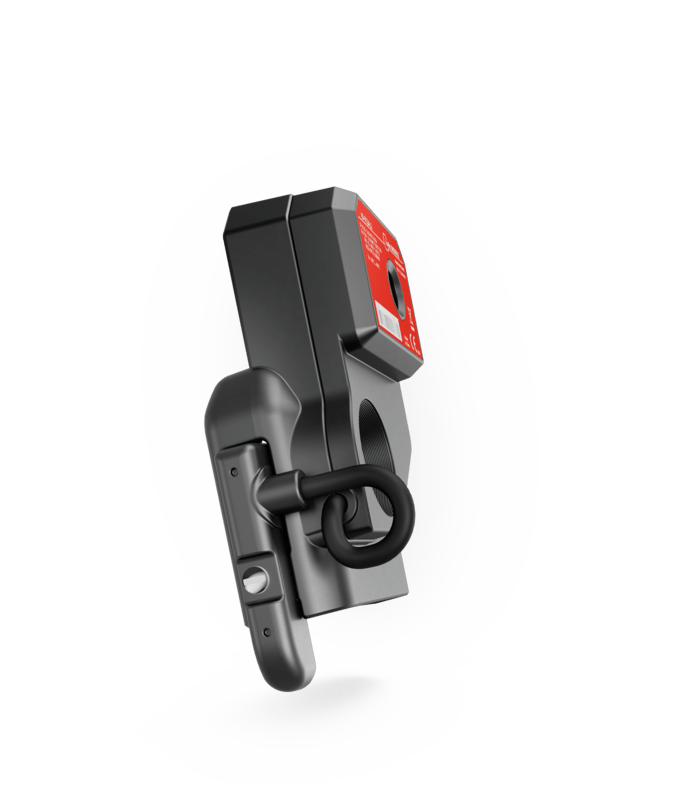

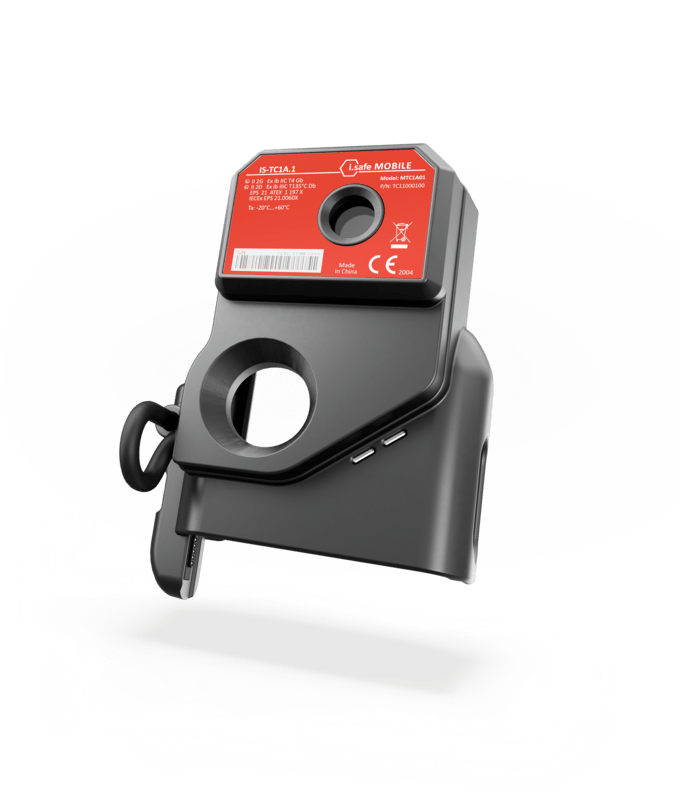

The thermal camera IS-TC1A.1, in combination with the industrial smartphone IS530.1 detects temperatures in the Ex-hazardous area from -40 °C to 330 °C in a matter of seconds via the Seek Thermal app (free download in Google Play Store). The thermal images and videos are processed and documented directly via the ISM interface of the IS530.1 smartphone.
| Sensor resolution | 200 (h) x 150 (v) 30000 pixel FixFocus Digital zoom via App |
|---|---|
| Sensor sensitivity | 65 mK (typical) |
| Frame rate | <9 Hz bis 32 Hz |
| Scene dynamic range | -40 °C bis 330 °C |
| Temperature accuracy | ±7 °C and 7 % (at 5 °C to 140 °C) ±10 °C and 10 % (at 140 °C to 330 °C) |
| Field of view | 35° (HFOV) 26° (VFOV) |
| Detection range | up to 300 m |
| Recognition range | up to 75 m |
| Identification range | up to 25 m |
| Dimensions | Size: 112,0 x 82,0 x 50 mm Weight: 195 g |
| Types of protection | IP68 dust-/waterproof MIL-STD 810H Usable from -20 °C to +55 °C |
 ATEX |
Europe | II 2G Ex ib IIC T4 Gb II 2D Ex ib IIIC T135°C Db |
 IECEx |
International | Ex ib IIC T4 Gb Ex ib IIIC T135°C Db |
 NEC500 |
North America | Class I Div. 1 Groups A, B, C, D, T4 Class II Div. 1 Groups E, F, G, T135°C Class III Div. 1 |
 INMETRO |
Brazil | Ex ib IIC T4 Gb Ex ib IIIC T135°C Db |
|
