IS-TH1ER.1

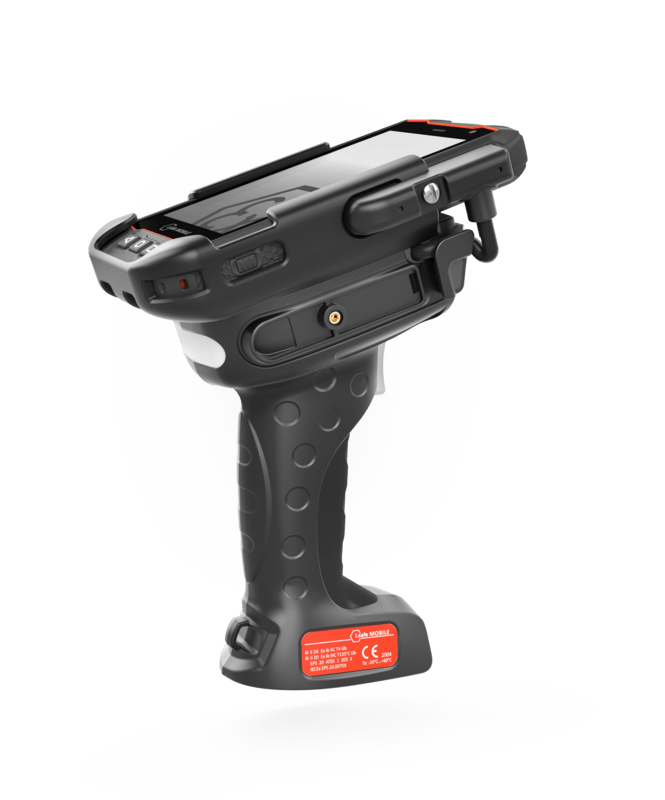

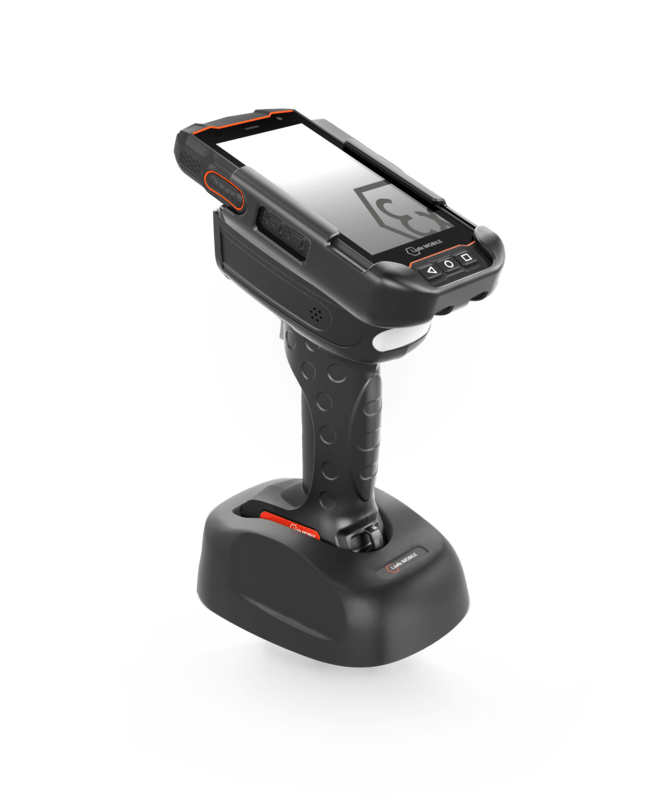

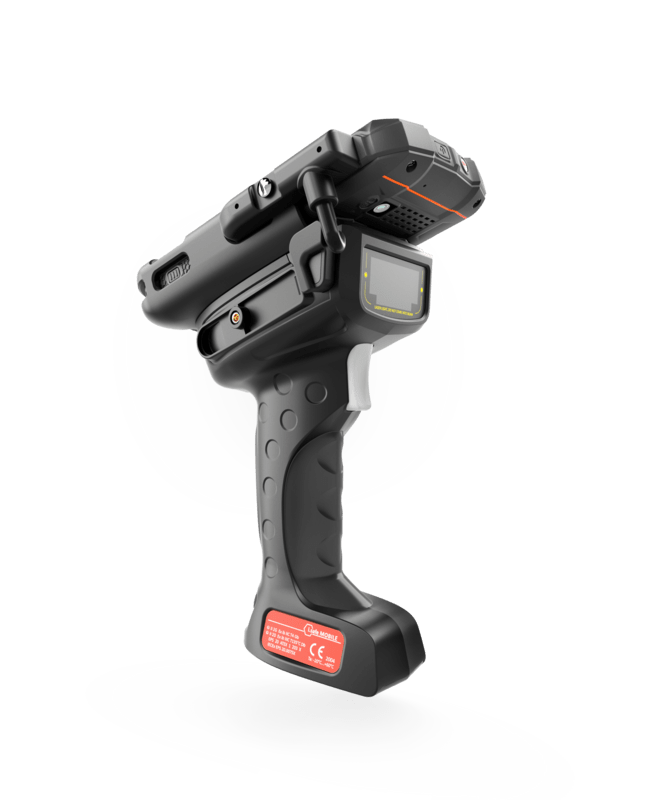

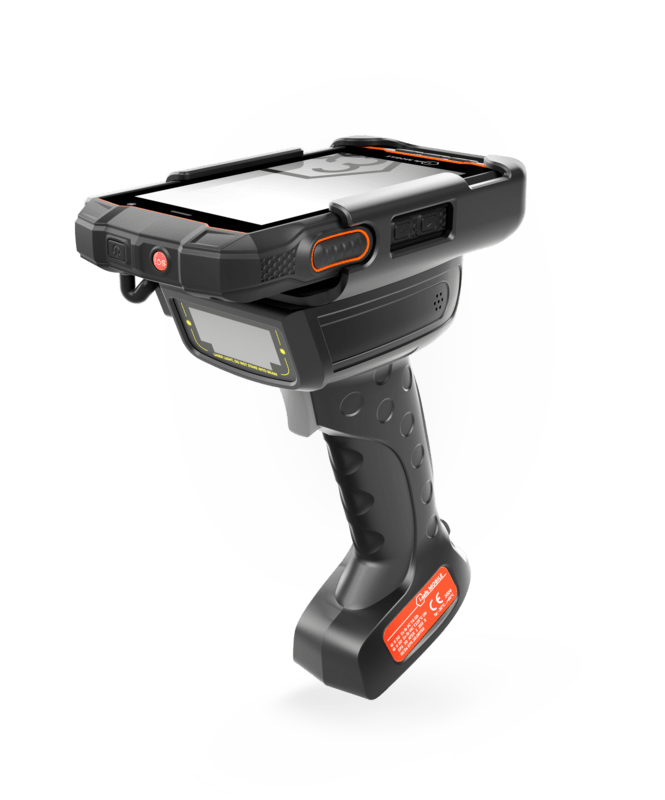

The mobile multifunctional set consisting of a Trigger Handle (hand-held barcode scanner) and an industrial smartphone IS530.x is a flexible combination for reliable data acquisition in industrial areas. The HID-active, ready-to-use high-performance scanner captures any 1D or 2D barcodes up to 18 meters via the reliable Zebra OEM imager scan engines . The data is further processed directly via the IS530.x smartphone connected via the ISM interface.

Category: Products Zone 1/21

Description

Advantages

Further Features

Approvals

Contents

Downloads

Dimensions	Size: 202 x 90,4 x 127 mm Weight: 377,1 g
Types of protection	IP68 dust-/waterproof MIL-STD 810H Usable from -20 °C to +60 °C
Scan type options	ER (extended range) Zebra SE4850 ER (~18 m)

Advantages

Reliable data acquisition and processing for 1D or 2D barcodes
Also for long distances of up to 18 meters
Direct data transfer via multifunctional (ISM) interface
Power supply via the connected device, therefore no battery necessary
Direct interface connection with the device, no Bluetooth® necessary

Further Features

Power supply over the connected mobile device

Barcode scanner

Multifunctional, lateral ISM interface for a quick and safe connection of additional devices

Download Datasheet

Approvals

ATEX	Europe	II 2G Ex ib op is IIC T4 Gb II 2D Ex ib op is IIIC T135°C Db
IECEx	International	Ex ib op is IIC T4 Gb Ex ib op is IIIC T135°C Db
NEC500	North America	Class I Div. 1 Groups A, B, C, D, T4 Class II Div. 1 Groups E, F, G, T135°C Class III Div. 1
INMETRO	Brazil	Ex ib op is IIC T4 Gb Ex ib op is IIIC T135°C Db
Japan-Ex	Japan	Ex ib op is IIC T4 Gb Ex ib op is IIIC T135°C Db
IA	South Africa	Ex ib op is IIC T4 Gb Ex ib op is IIIC T135°C Db

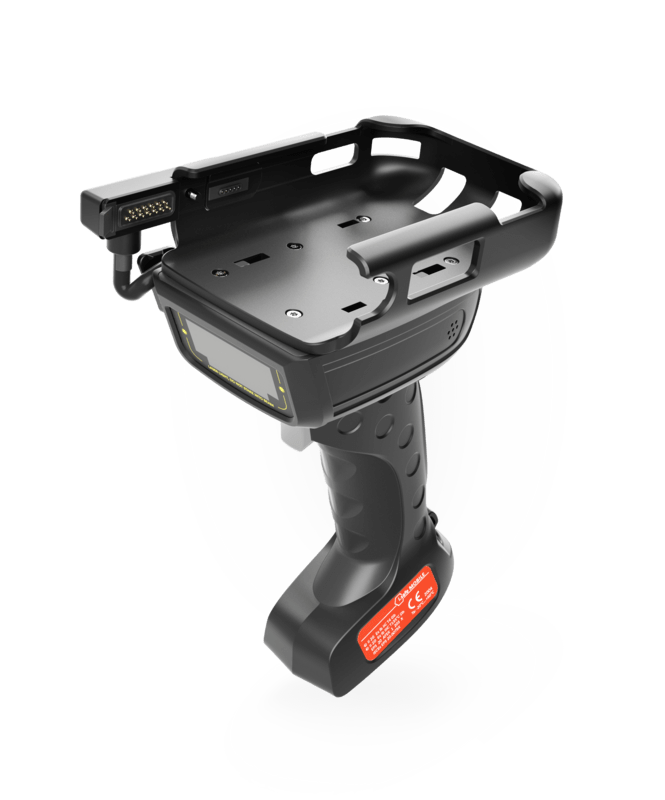

Trigger Handle
Screwdriver
Safety Instructions
Quick Start Manual

Downloads

Datasheet

Datasheet IS-TH1xx.1 (English)

Download (PDF, 1 MB)

Manual

	Manual IS-TH1xx.1	Download (PDF, 2 MB)
	Manual IS-DCTH1.1	Download (PDF, 356 KB)
	Manual IS-MCTH1.1	Download (PDF, 325 KB)

Certificates

	ATEX IS-TH1xx.1	Download (PDF, 794 KB)
	IECEx IS-TH1xx.1	Download (PDF, 998 KB)
	NEC IS-TH1xx.1	Download (PDF, 957 KB)
	INMETRO IS-TH1xx.1	Download (PDF, 329 KB)
	Japan-Ex, CML IS-TH1xx.1	Download (PDF, 365 KB)
	Japan-Ex, CML IS-TH1xx.1	Download (PDF, 386 KB)
	IA South Africa (MTEx) IS-TH1xx.1	Download (PDF, 392 KB)
	DoC IS-TH1xx.1	Download (PDF, 247 KB)
	DoC IS-DCTH1.1	Download (PDF, 240 KB)
	DoC IS-MCTH1.1	Download (PDF, 239 KB)
