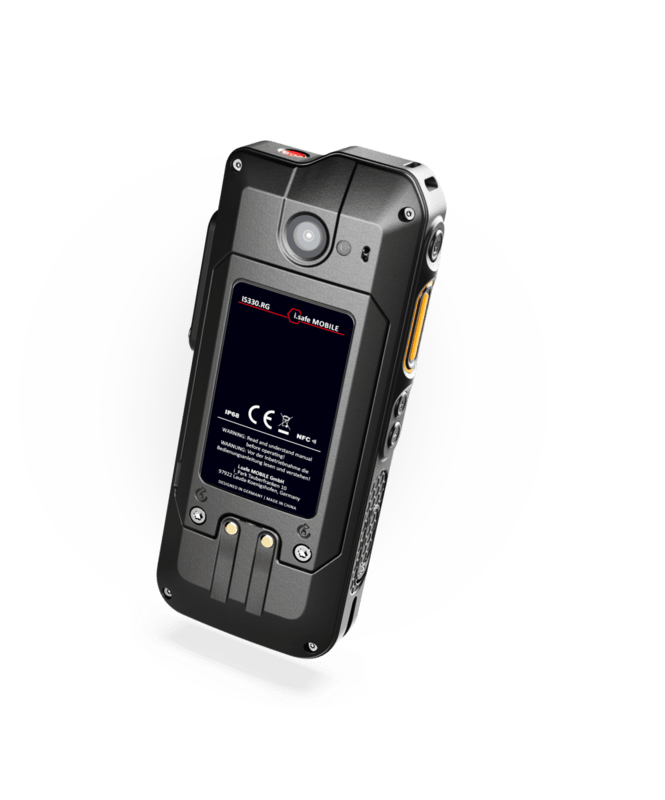

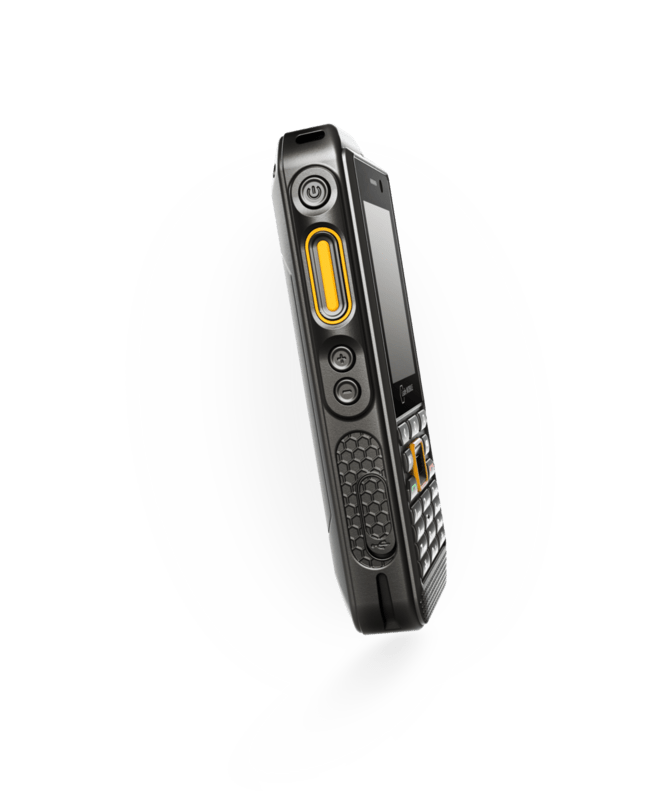

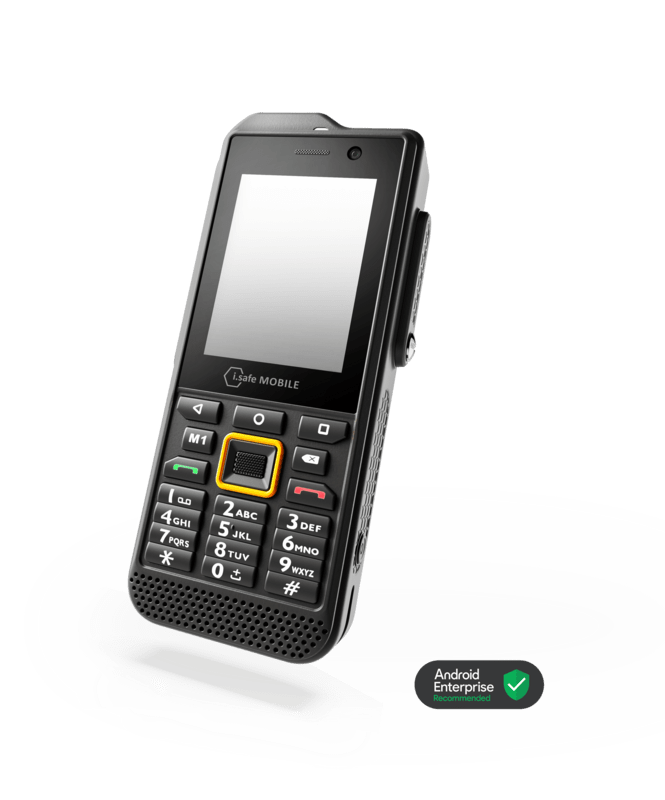

IS330.RG

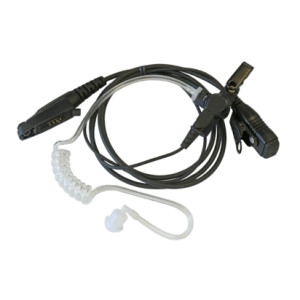

Thanks to the ISM interface, the professional PTT mobile phone for robust industrial use can be used like a radio device for connecting an RSM or PTT headsets. The Android Enterprise Recommended device is zero-touch capable and can be managed via an MDM system. The particularly powerful loudspeaker and battery complete the highlights of this ultra-robust mobile device, which also has a good feel.

Category: Products Industrial

Description

Advantages

Further Features

Contents

Downloads

Operating system	Android™ 10
Processor	Qualcomm® Snapdragon SDM660 Octa Core
Memory	4 GB RAM 64 GB internal memory microSD to 128 GB
Frequencies	2G GSM 850/900/1800/1900 MHz 3G WCDMA B1/2/4/5/8 4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28A/B28B/B29/B30/B66 4G LTE-TDD: B38/B39/B40/B41 4G LTE-TD: B34/B38
Dimensions	Size: 152,6 x 64 x 26,7 mm Weight: 318,0 g
Display	2,6″ (6,604 cm) Corning® Gorilla® Glass V3 usable with gloves
Battery	4050 mAh, 3,7 V replaceable
Camera	13 MP AF rear 5 MP FF front
Connectivity	Wi-Fi® 2.4 GHz + Wi-Fi® 5.0 GHz: IEEE 802.11 a/b/g/n/ac/e/k/r/h with hotspot Bluetooth® 5 GPS, A-GPS, Glonass, Beidou, Galileo Near Field Communication
Types of protection	IP68 dust-/waterproof MIL-STD 810G Usable from -20 °C to +60 °C

Advantages

Professional radio function for harsh industrial environments
Push-to-talk key for uncomplicated team communication
Universal, 13-pin ISM (multifunctional) interface for connecting additional devices for a wide range of applications
High-performance battery for long work shifts
Android Enterprise Recommended
Zero-touch capable
Management via MDM system

Further Features

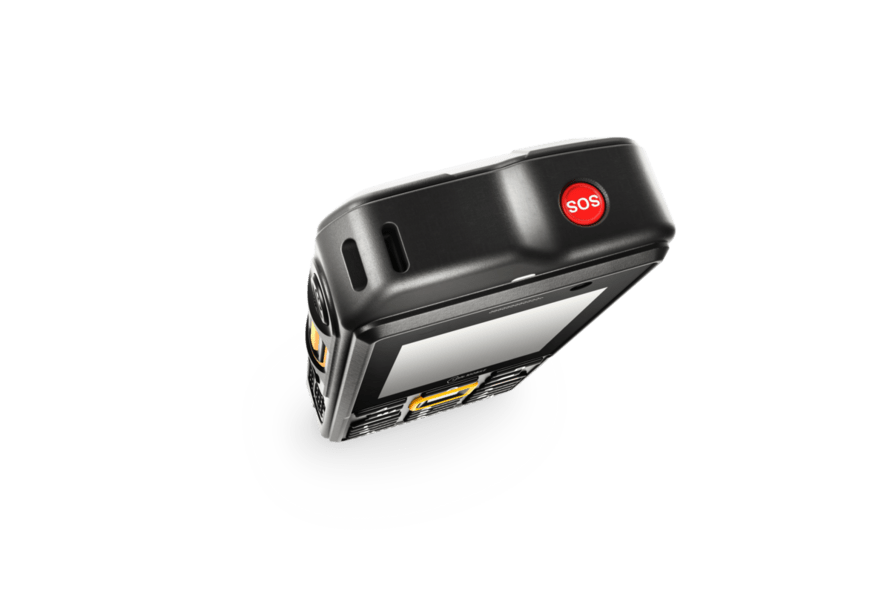

SOS key for loneworker protectionLWP ready (third party application required, based on country specific regulations)

Push-To-Talk keyPTT ready (third party application required, based on country specific approvals)

Amplified loudspeaker

Accelerometer, Gyroscope, Light, Magnetic, Proximity, Pressure sensors

Dual-Nano-SIM

USB-C, Desktop Charger

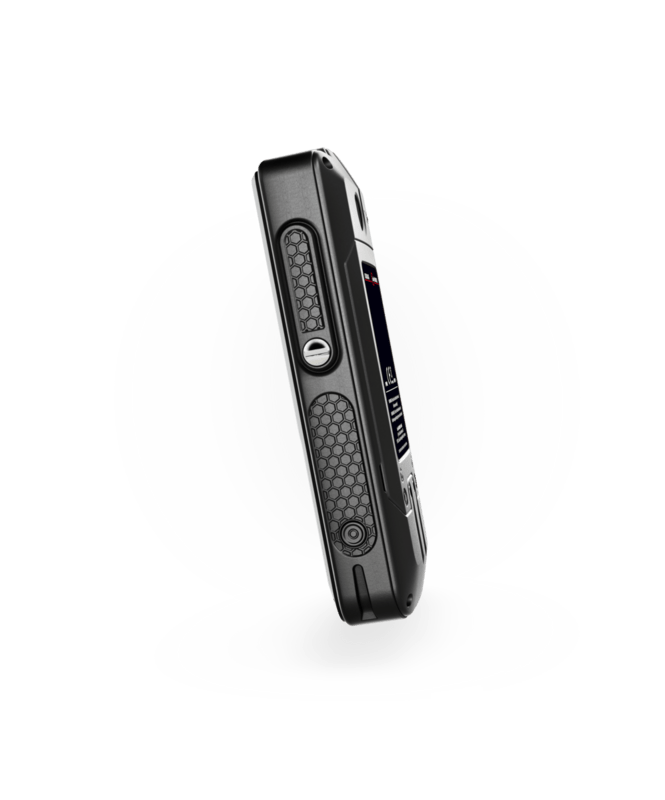

Multifunctional, lateral ISM interface for a quick and safe connection of additional devices

Download Datasheet

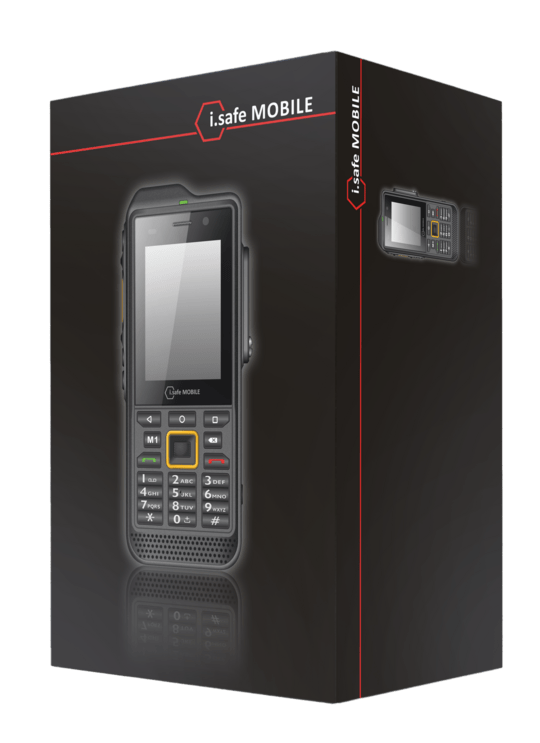

Mobile Phone

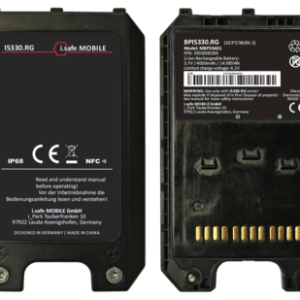

Battery
Power Adapter universal
Screwdriver
Safety Instructions
Quick Start Manual

Downloads

Datasheet

Datasheet IS330.RG (English)

Download (PDF, 1 MB)

Manual

	Operating Manual IS330.RG	Download (PDF, 3 MB)
	Safety Instructions IS330.RG	Download (PDF, 1 MB)
	Quick Start Manual IS330.RG	Download (PDF, 2 MB)
	FCC Statement IS330.x	Download (PDF, 274 KB)
	IC Statement IS330.x	Download (PDF, 145 KB)

Certificates

	DoC IS330.RG	Download (PDF, 241 KB)

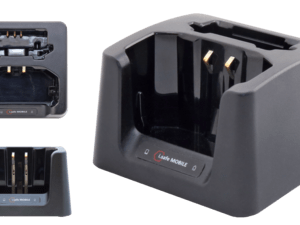

	DoC IS-DC330.1	Download (PDF, 237 KB)
