IS440.2

The 5G radio ensures secure and failure-free PoC communication via public or campus networks (4G or 5G) or Wi-Fi® in Ex-Zone 2/22. A gateway makes the IS440.2 interoperable with previous radio technologies and enables a seamless integration into existing systems. The 5G radio offers a user-orientated look & feel, a replaceable battery, large buttons for PTT, SOS, talkgroup selection, a powerful front speaker, an ISM interface and a functional fixing clip. You can download selected apps that are compatible with the device directly from the pre-installed App World and update them regularly. The App World contains product-related, selected push-to-talk and MDM solutions.

Category: Products Zone 2/22

Description

Advantages

Energy Labelling

Further Features

Approvals

Contents

Downloads

Operating system	ISM-OS 14
Processor	Qualcomm® QCM6490 Octa Core
Memory	4 GB RAM 64 GB internal memory
Frequencies	4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28/B29/B30/B66/B71/B68 4G LTE-TDD: B38/B39/B40/B41/B42/B43/B48 5G NR: n1/n2/n3/n5/n7/n8/n12/n14/n20/n25/n28/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79
Dimensions	Size: 136,6 x 70 x 32 mm Weight: 307 g
Display	2,4″ (6,096 cm) Corning® Gorilla® Glass V3

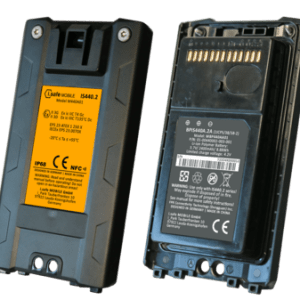

Battery	2400 mAh replaceable
Camera	8 MP AF front
Connectivity	Wi-Fi® 6: IEEE 802.11 a/b/g/n/ac/e/k/r/ax/v with hotspot Bluetooth® 5.2 GPS, A-GPS, Glonass, Beidou, Galileo, NavIC, QZSS, SBAS Near Field Communication
Types of protection	IP68 dust-/waterproof MIL-STD 810H Usable from -20 °C to +55 °C

Advantages

Channel selector e.g. for PTT applications
Programmable red key (e.g. for lone worker protection/SOS)
Programmable side key (e.g. for PoC/PTT)
Additional programmable buttons, M1 & M2, assignable via Button App
8-pin ISM interface for optional audio accessories
Powerful 4800 mAh battery for extreme runtime as an optional accessory
Amplified loudspeaker for noisy work environments
Integrated belt clip for safe carrying

Energy Labelling

EPREL Product Information Sheet

Download (PDF)

Further Features

Push-To-Talk keyPTT ready (third party application required, based on country specific approvals)

Function key red (function key assignable for different 3rd party application; e.g. loneworker protection)

Amplified loudspeaker

Accelerometer, Gyroscope, Magnetic, Pressure sensors

Dual-SIM (Nano-SIM + eSIM)

USB-C, Desktop Charger, Multi Charger

Download Datasheet

Approvals

ATEX	Europe	II 3G Ex ic IIC T4 Gc II 3D Ex ic IIIC T135°C Dc
IECEx	International	Ex ic IIC T4 Gc Ex ic IIIC T135°C Dc
NEC500	North America	Class I Div. 2 Groups A, B, C, D, T4 Class II Div. 2 Groups F, G, 135 °C Class III

5G Radio
Battery
USB-C Cable
Power Adapter universal
Safety Instructions
Screwdriver
Belt Clip
Display Protection Foil

Downloads

Datasheet

Datasheet IS440.2 (English)

Download (PDF, 264 KB)

Manual

	Operating Manual IS-DC440.1	Download (PDF, 2 MB)
	Safety Instructions IS-DC440.1	Download (PDF, 951 KB)
	Safety Instructions IS440.2	Download (PDF, 2 MB)
	Operating Manual IS440.2	Download (PDF, 5 MB)

Certificates

	ATEX IS440.2	Download (PDF, 1 MB)
	IECEx IS440.2	Download (PDF, 2 MB)
	NEC IS440.2	Download (PDF, 189 KB)
	DoC IS440.2	Download (PDF, 310 KB)
