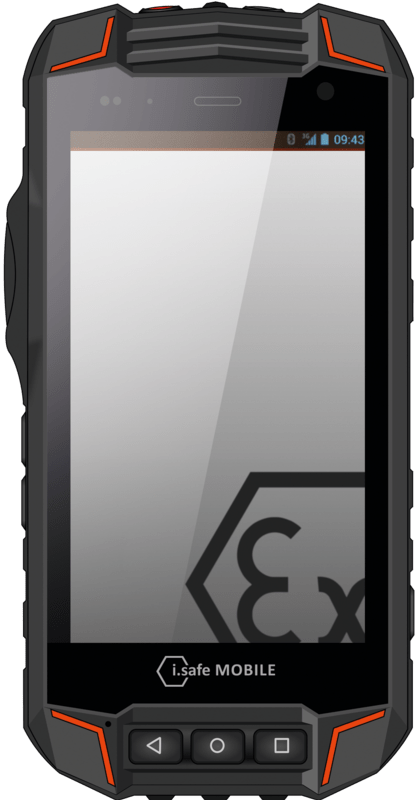

csm_i.safe_MOBILE_IS520.1_Front_e8140db863

IS520.1

The IS520.1 is an industrial smartphone with current technology. It combines modern design, updated technology and robustness of an industrial product.

Category: Products Zone 1/21

Description

Advantages

Further Features

Approvals

Contents

Downloads

Operating system	Android™ 7.1
Processor	Qualcomm® Snapdragon MSM8953 Octa Core
Memory	3 GB RAM 32 GB internal memory microSD to 32 GB
Frequencies	2G GSM 850/900/1800/1900 MHz 3G WCDMA 850/900/1900/2100 MHz 4G LTE-FDD: B1/B3/B7/B20/B28 4G LTE-TDD: B38/B39/B40/B41 4G LTE-TD: B34/B39
Dimensions	Size: 155,3 x 76,7 x 25 mm Weight: 325,0 g
Display	4,5″ (11,43 cm) Corning® Gorilla® Glass V3 usable with gloves
Battery	3600 mAh, 3,8 V replaceable
Camera	8 MP AF rear 5 MP FF front
Connectivity	Wi-Fi® 2.4 GHz + Wi-Fi® 5.0 GHz: IEEE 802.11 b/g/n/ac/r with hotspot Bluetooth® 4.1 BLE GPS, A-GPS, Glonass, Beidou Near Field Communication
Types of protection	IP68 dust-/waterproof MIL-STD 810G Usable from -20 °C to +60 °C

Advantages

Amplified loudspeaker for noisy work environments
Push-to-talk key for uncomplicated team communication

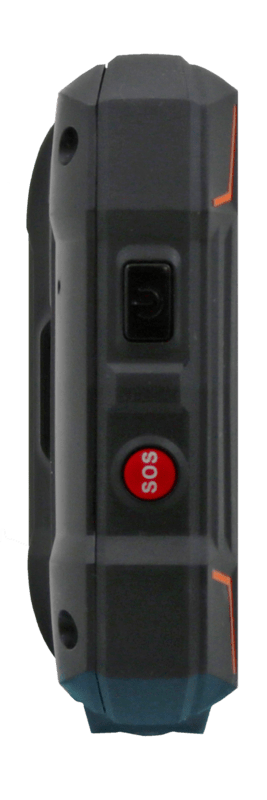

SOS key for loneworker protection
Dual micro SIM
Display can be operated with gloves
Replaceable battery for long shift operations

Further Features

SOS key for loneworker protectionLWP ready (third party application required, based on country specific regulations)

Push-To-Talk keyPTT ready (third party application required, based on country specific approvals)

Amplified loudspeaker

Gyroscope, Light, Magnetic, Proximity sensors

Freely programmable key

Dual-Micro-SIM

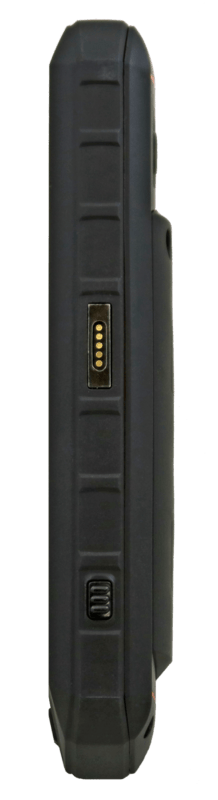

Magnetic charger port

Download Datasheet

Approvals

ATEX	Europe	II 2G Ex ib IIC T4 Gb II 2D Ex ib IIIC T135°C Db IP6X
IECEx	International	Ex ib IIC T4 Gb Ex ib IIIC T135°C Db IP6X
NEC500	North America	Class I Div. 1 Groups A, B, C, D T4 Class II Div. 1 Groups E, F, G Class III Div. 1
EAC	Russia	1Ex ib IIC T4 Gb X Ex ib IIIC T135°C Db X IP64
KCs	South Korea	Ex ib IIC T4 Ex ib IIIC T135°C
INMETRO	Brazil	Ex ib IIC T4 Gb Ex ib IIIC T135°C Db IP6X
PCEC	China	Ex ib IIC T4 Gb Ex ibD 21 T135°C
ATEX Mining	Europe	I M1 Ex ia I Ma IP64
IECEx Mining	International	Ex ia I Ma IP64

Smartphone
Battery
i.safe PROTECTOR 2.0
i.safe PROTECTOR 3.0
Power Adapter universal
Display Protection Foil
Safety Instructions
Quick Start Manual

Downloads

Datasheet

Datasheet IS520.1 (English)

Download (PDF, 278 KB)

Manual

	Manual IS520.1	Download (PDF, 2 MB)
	Quick Start Manual IS-DC530.1	Download (PDF, 530 KB)
	Quick Start Manual IS-MC530.1	Download (PDF, 720 KB)

Certificates

	ATEX IS520.1	Download (PDF, 877 KB)
	IECEx IS520.1	Download (PDF, 1 MB)
	NEC IS520.1	Download (PDF, 176 KB)
	EAC IS520.1	Download (PDF, 1 MB)
	EAC IS520.1	Download (PDF, 1 MB)
	KCs IS520.1	Download (PDF, 31 KB)
	KCs IS520.1	Download (PDF, 30 KB)
	INMETRO IS520.1	Download (PDF, 716 KB)
	PCEC IS520.1	Download (PDF, 486 KB)
	IECEx IS520.M1	Download (PDF, 961 KB)
	DoC IS520.1	Download (PDF, 250 KB)
