IS520.2

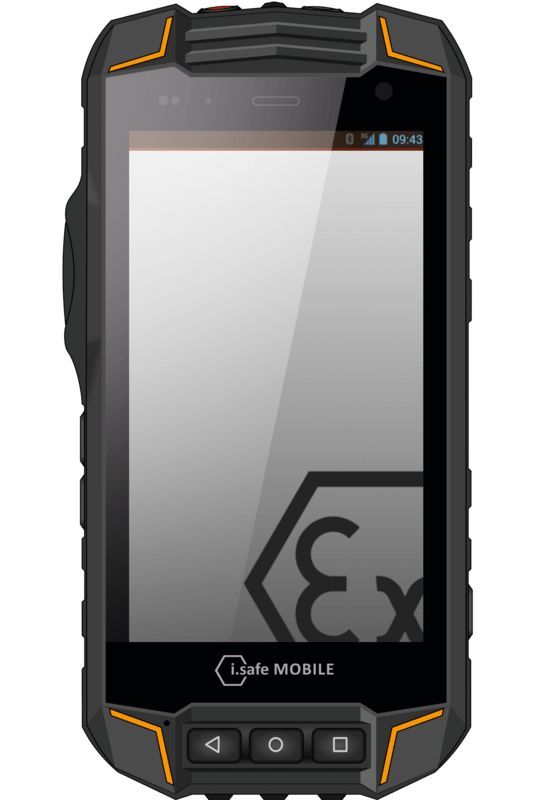

The IS520.2 is an industrial smartphone with current technology. It combines modern design, updated technology and robustness of an industrial product.

Category: Products Zone 2/22

Description

Advantages

Further Features

Approvals

Contents

Downloads

Operating system	Android™ 7.1
Processor	Qualcomm® Snapdragon MSM8953 Octa Core
Memory	3 GB RAM 32 GB internal memory microSD to 32 GB
Frequencies	2G GSM 850/900/1800/1900 MHz 3G WCDMA 850/900/1900/2100 MHz 4G LTE-FDD: B1/B3/B7/B20/B28 4G LTE-TDD: B38/B39/B40/B41 4G LTE-TD: B34/B39
Dimensions	Size: 155,3 x 76,7 x 25 mm Weight: 325,0 g
Display	4,5″ (11,43 cm) Corning® Gorilla® Glass V3 usable with gloves
Battery	3600 mAh, 3,8 V replaceable
Camera	8 MP AF rear 5 MP FF front
Connectivity	Wi-Fi® 2.4 GHz + Wi-Fi® 5.0 GHz: IEEE 802.11 b/g/n/ac/r with hotspot Bluetooth® 4.1 BLE GPS, A-GPS, Glonass, Beidou
Types of protection	IP68 dust-/waterproof MIL-STD 810G Usable from -20 °C to +60 °C

Advantages

Amplified loudspeaker for noisy work environments
Push-to-talk key for uncomplicated team communication
SOS key for loneworker protection
Dual micro SIM
Display can be operated with gloves
Replaceable battery for long shift operations

Further Features

SOS key for loneworker protectionLWP ready (third party application required, based on country specific regulations)

Push-To-Talk keyPTT ready (third party application required, based on country specific approvals)

Amplified loudspeaker

Freely programmable key

Gyroscope, Light, Magnetic, Proximity sensors

Dual-Micro-SIM

USB-C, Magnetic charger port, Desktop Charger

Download Datasheet

Approvals

ATEX	Europe	II 3G Ex ic IIC T4 Gc IP64 II 3D Ex ic IIIC T135°C Dc IP64
IECEx	International	Ex ic IIC T4 Gc IP64 Ex ic IIIC T135°C Dc IP64

Smartphone
Battery
Power Adapter universal
Display Protection Foil
Safety Instructions
Quick Start Manual
USB-C Cable
Magnetic Charger Cable

Downloads

Datasheet

Datasheet IS520.2 (English)

Download (PDF, 705 KB)

Manual

	Manual IS520.2	Download (PDF, 2 MB)
	Quick Start Manual IS-DC530.1	Download (PDF, 530 KB)
	Quick Start Manual IS-MC530.1	Download (PDF, 720 KB)

Certificates

	ATEX IS520.2	Download (PDF, 820 KB)
	ATEX IS520.2	Download (PDF, 772 KB)
	IECEx IS520.2	Download (PDF, 835 KB)
