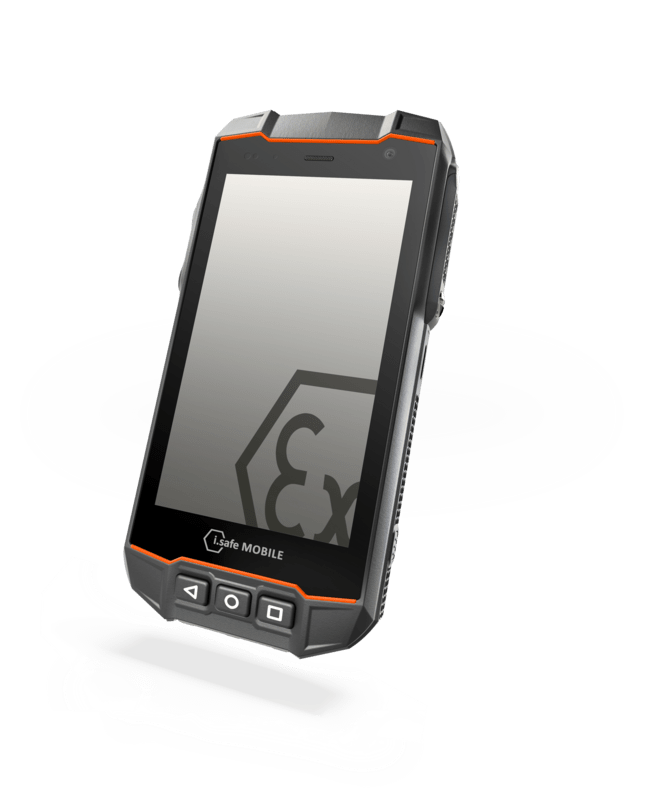

IS530.M1

The powerful, particularly dust-proof industrial smartphone for the mining industry can be used in a variety of ways thanks to the ISM interface. Additional modules such as the Push to talk headset IS-HS1.1 or the professional barcode scanner IS-TH1xx.M1 make the IS530.M1 a high-performance multifunctional device. The smartphone is Android™ Enterprise Recommended, zero-touch capable and MDM compatible.

Category: Products Mining

Description

Advantages

Further Features

Approvals

Contents

Downloads

Operating system	Android™ 13
Processor	Qualcomm® Snapdragon SDM660 Octa Core
Memory	4 GB RAM 64 GB internal memory microSD to 128 GB
Frequencies	2G GSM 850/900/1800/1900 MHz 3G WCDMA B1/2/4/5/8 4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28A/B28B/B29/B30/B66 4G LTE-TDD: B38/B39/B40/B41 4G LTE-TD: B34/B39
Dimensions	Size: 155,3 x 76,7 x 25 mm Weight: 325 g
Display	4,5″ (11,43 cm) Corning® Gorilla® Glass V3 usable with gloves
Battery	3600 mAh, 3,8 V replaceable
Camera	13 MP AF rear 5 MP FF front
Connectivity	Wi-Fi® 2.4 GHz + Wi-Fi® 5.0 GHz: IEEE 802.11 a/b/g/n/ac/e/k/r/h with hotspot Bluetooth® 5 GPS, A-GPS, Glonass, Beidou, Galileo Near Field Communication
Types of protection	IP68 dust-/waterproof MIL-STD 810H Usable from -20 °C to +60 °C

Advantages

Android™ 13
Very high level of safety in the mining sector with the risk of firedamp
Universal, 13-pin ISM (multifunctional) interface for connecting additional devices for a wide range of applications
Android Enterprise Recommended
Zero-touch capable
MDM compatible

Further Features

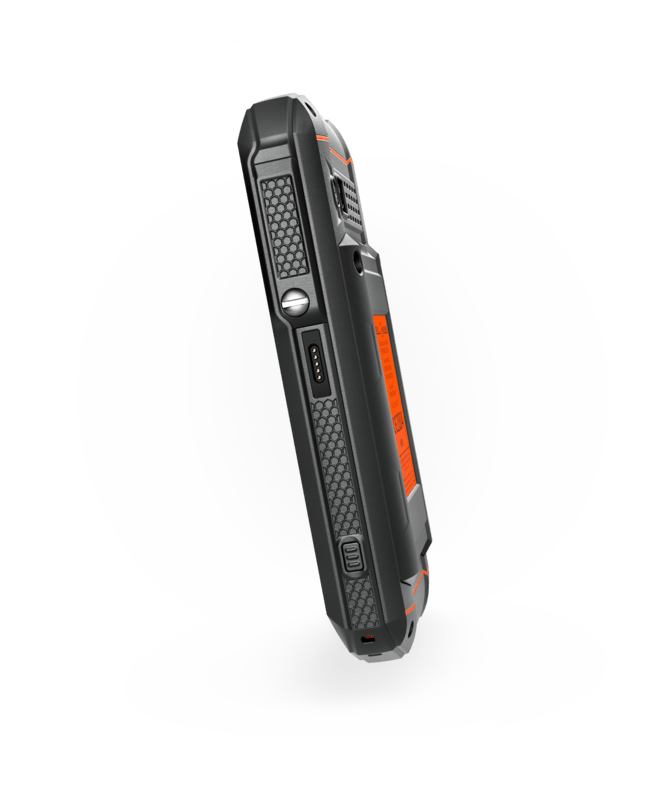

Multifunctional, lateral ISM interface for a quick and safe connection of additional devices

SOS key for loneworker protectionLWP ready (third party application required, based on country specific regulations)

Push-To-Talk keyPTT ready (third party application required, based on country specific approvals)

Amplified loudspeaker

Accelerometer, Gyroscope, Light, Magnetic, Proximity, Pressure sensors

Dual-Micro-SIM

Magnetic charger port, Desktop Charger, Multi Charger

Download Datasheet

Approvals

ATEX Mining	Europe	I M1 Ex ia I Ma IP64
IECEx Mining	International	Ex ia I Ma IP64
ANZEx Mining	Australia	Ex ia I Ma
SANS Mining	South Africa	Ex ia I Ma IP64
EAC Mining	Russia	PB Ex ib I Mb X

Smartphone

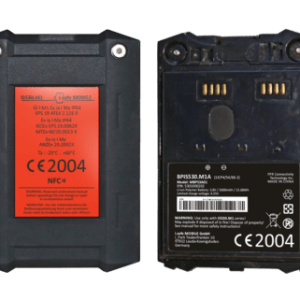

Battery
i.safe PROTECTOR 2.0
i.safe PROTECTOR 3.0
Power Adapter universal
Screwdriver
Display Protection Foil
Safety Instructions
Quick Start Manual

Downloads

Datasheet

Datasheet IS530.M1 (English)

Download (PDF, 1 MB)

Manual

	Operating Manual IS530.M1	Download (PDF, 4 MB)
	Safety Instructions IS530.M1	Download (PDF, 1 MB)
	Quick Start Manual IS530.M1	Download (PDF, 2 MB)
	FCC Statement IS530.x	Download (PDF, 162 KB)
	IC Statement IS530.x	Download (PDF, 82 KB)
	Operating Manual IS530.M1 Mining +GD	Download (PDF, 4 MB)
	Quick Start Manual IS530.M1 Mining +GD	Download (PDF, 2 MB)
	Safety Instructions IS530.M1 Mining +GD	Download (PDF, 1 MB)
	Quick Start Manual IS-DC530.1	Download (PDF, 530 KB)
	Quick Start Manual IS-MC530.1	Download (PDF, 720 KB)

Certificates

	DoC IS530.M1	Download (PDF, 249 KB)
	ATEX IS530.M1	Download (PDF, 1 MB)
	IECEx IS530.M1	Download (PDF, 1 MB)
	ANZEx IS530.M1	Download (PDF, 302 KB)
	SANS IS530.M1	Download (PDF, 409 KB)
	EAC IS530.M1	Download (PDF, 2 MB)
	DoC IS-DC530.1	Download (PDF, 237 KB)
	DoC IS-MC530.1	Download (PDF, 237 KB)
