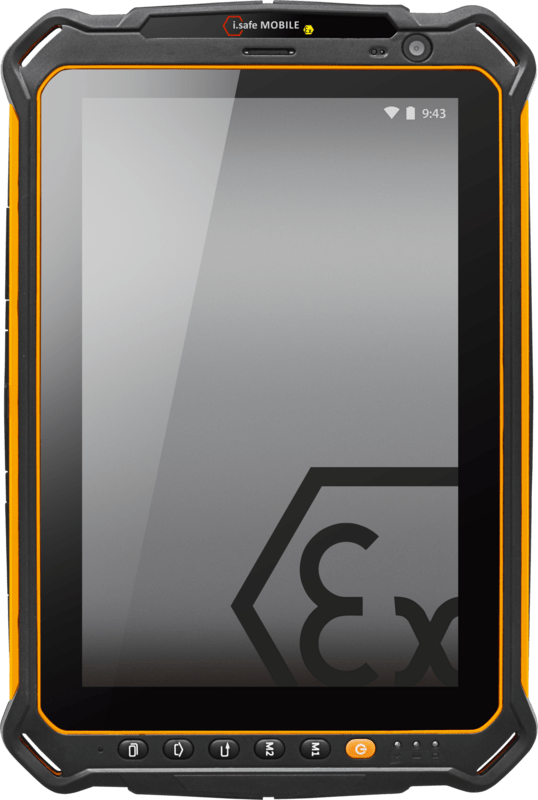

IS910.2

The IS910.2 is the tablet for use in ATEX zones 2/22. The 8“ tablet is highly robust, powerful and o ers many technical advantages: 6.000mAh Battery, Qualcomm®Snapdragon, NFC, Android™ 8.0 etc.

Category: Products Zone 2/22

Description

Advantages

Further Features

Approvals

Contents

Downloads

Operating system	Android™ 8.0, Android™ 7.1
Processor	Qualcomm® Snapdragon MSM8953 Octa Core
Memory	3 GB RAM 32 GB internal memory microSD to 32 GB
Frequencies	2G GSM 850/900/1800/1900 MHz 3G WCDMA 850/900/1900/2100 MHz 4G LTE-FDD: B1/B3/B7/B20/B28 4G LTE-TDD: B38/B39/B40/B41 4G LTE-TD: B34/B39
Dimensions	Size: 237 x 156 x 22 mm Weight: 695 g
Display	8,0″ (20,32 cm) usable with gloves
Battery	8160 mAh, 3,7 V
Camera	8 MP AF rear 5 MP FF front
Connectivity	Wi-Fi® 2.4 GHz + : IEEE 802.11 b/g/n with hotspot Bluetooth® 4.1 BLE GPS, A-GPS, Glonass, Beidou Near Field Communication
Types of protection	IP68 dust-/waterproof MIL-STD 810G Usable from -20 °C to +60 °C

Advantages

Display can be operated with gloves
Charging contacts for Desktop and Multi Charger
NFC access control
SOS key for loneworker protection

Further Features

SOS key for loneworker protectionLWP ready (third party application required, based on country specific regulations)

Accelerometer, Gyroscope, Light, Magnetic, Proximity sensors

Micro-SIM

USB-C, Magnetic charger port, Docking Station

Download Datasheet

Approvals

ATEX	Europe	II 3G Ex ic IIC T4 Gc IP64 II 3D Ex ic IIIC T135°C Dc IP64
IECEx	International	Ex ic IIC T4 Gc IP64 Ex ic IIIC T135°C Dc IP64

Tablet with integrated battery
Power Adapter universal
Hand Strap
Display Protection Foil
Safety Instructions
Quick Start Manual

Downloads

Datasheet

Datasheet IS910.2 (English)

Download (PDF, 298 KB)

Manual

	Manual IS910.2	Download (PDF, 1 MB)
	Quick Start Manual IS-DS930.1	Download (PDF, 626 KB)
	Quick Start Manual IS-MC930.1	Download (PDF, 726 KB)

Certificates

IECEx IS910.2

Download (PDF, 802 KB)
