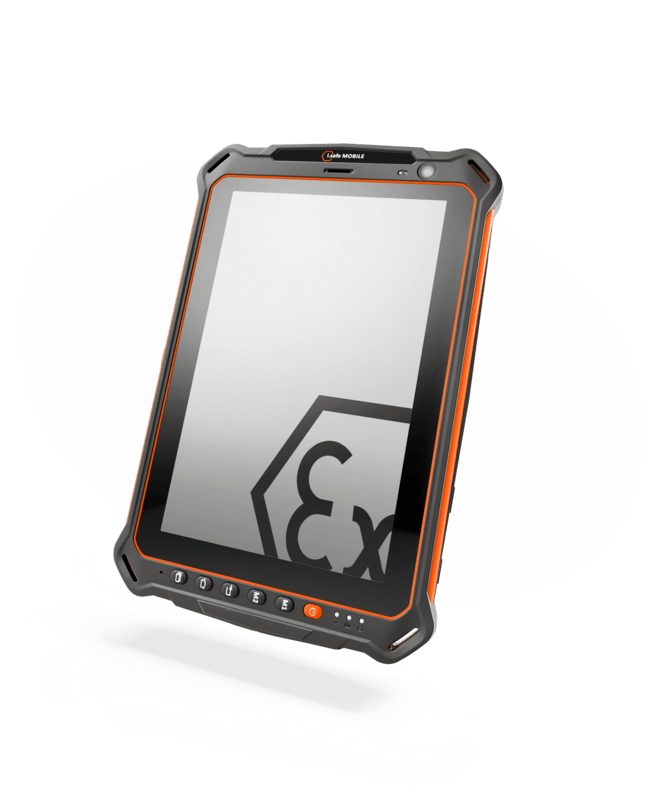

IS930.1

The robust and powerful tablet of the Industry 4.0 generation is Android™ Enterprise Recommended and, thanks to its zero-touch functionality, can be used quickly and is ideally suited for maintenance applications in the IoT environment. The 8-inch display, two freely programmable buttons, a long-life battery, a practical hand strap and a separate leather bag with a shoulder/belt or carry strap system are further highlights.

Category: Products Zone 1/21

Description

Advantages

Further Features

Approvals

Contents

Downloads

Operating system	Android™ 13
Processor	Qualcomm® Snapdragon SDM660 Octa Core
Memory	4 GB RAM 64 GB internal memory microSD to 512 GB
Frequencies	2G GSM 850/900/1800/1900 MHz 3G WCDMA B1/2/4/5/8 4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28A/B28B/B29/B30/B66 4G LTE-TDD: B38/B39/B40/B41 4G LTE-TD: B34/B39
Dimensions	Size: 237 x 156 x 22 mm Weight: 890 g
Display	8,0″ (20,32 cm) usable with gloves
Battery	8160 mAh, 3,7 V
Camera	13 MP AF rear 5 MP FF front
Connectivity	Wi-Fi® 2.4 GHz + Wi-Fi® 5.0 GHz: IEEE 802.11 a/b/g/n/ac/e/k/r/h with hotspot Bluetooth® 5 GPS, A-GPS, Glonass, Beidou Near Field Communication
Types of protection	IP68 dust-/waterproof MIL-STD 810H Usable from -20 °C to +60 °C

Advantages

Android™ 13
Ideal for IoT maintenance applications
Android Enterprise Recommended
Zero-touch capable
High-performance device, ideal for Industry 4.0 applications
Easy to use and easy to carry and hold thanks to the hand strap
Individually programmable keys
Display can be operated with gloves

Further Features

SOS key for loneworker protectionLWP ready (third party application required, based on country specific regulations)

Amplified loudspeaker

Accelerometer, Gyroscope, Magnetic, Temperature and Humidity, Proximity sensors

Micro-SIM

USB-C, Magnetic charger port, Docking Station, Multi Charger

Download Datasheet

Approvals

ATEX	Europe	II 2G Ex ib IIC T4 Gb II 2D Ex ib IIIC T135°C Db IP6X
IECEx	International	Ex ib IIC T4 Gb Ex ib IIIC T135°C Db IP6X
NEC500	North America	Class I Div. 1 Groups A, B, C, D, T4 Class II Div. 1 Groups E, F, G, T135°C Class III Div. 1
EAC	Russia	1Ex ib IIC T4 Gb X Ex ib IIIC T135°C Db X
KCs	South Korea	Ex ib IIC T4 Ex ib IIIC T135°C
INMETRO	Brazil	Ex ib IIC T4 Gb Ex ib IIIC T135°C Db IP6X
Japan-Ex	Japan	Ex ib IIC T4 Gb Ex ib IIIC T135°C Db IP6X
IA	South Africa	Ex ib IIC T4 Gb Ex ib IIIC T135°C Db IP6X
PESO	India	Ex ib IIC T4 Gb

Tablet with integrated battery
Hand Strap
Power Adapter universal
Earphone
i.safe PROTECTOR 2.0
i.safe PROTECTOR 3.0
Display Protection Foil
Safety Instructions
Quick Start Manual

Downloads

Datasheet

	Datasheet IS930.1 (English)	Download (PDF, 1 MB)
	Datasheet IS-DS930.1 (English)	Download (PDF, 387 KB)

Manual

	Operating Manual IS930.1	Download (PDF, 4 MB)
	Quick Start Manual IS930.1	Download (PDF, 2 MB)
	Safety Instructions IS930.1	Download (PDF, 2 MB)
	FCC Statement IS930.x	Download (PDF, 146 KB)
	IC Statement IS930.x	Download (PDF, 74 KB)
	Quick Start Manual IS-DS930.1	Download (PDF, 626 KB)
	Quick Start Manual IS-MC930.1	Download (PDF, 726 KB)

Certificates

	ATEX IS930.1	Download (PDF, 838 KB)
	IECEx IS930.1	Download (PDF, 1,009 KB)
	NEC IS930.1	Download (PDF, 222 KB)
	EAC IS930.1	Download (PDF, 2 MB)
	KCs IS930.1	Download (PDF, 748 KB)
	INMETRO IS930.1	Download (PDF, 367 KB)
	Japan-Ex, CSA IS930.1	Download (PDF, 114 KB)
	Japan-Ex, CSA IS930.1	Download (PDF, 114 KB)
	IA South Africa (MTEx) IS930.1	Download (PDF, 406 KB)
	DoC IS930.1	Download (PDF, 264 KB)
	DoC IS-MC930.1	Download (PDF, 243 KB)
	DoC IS-DS930.1	Download (PDF, 244 KB)
