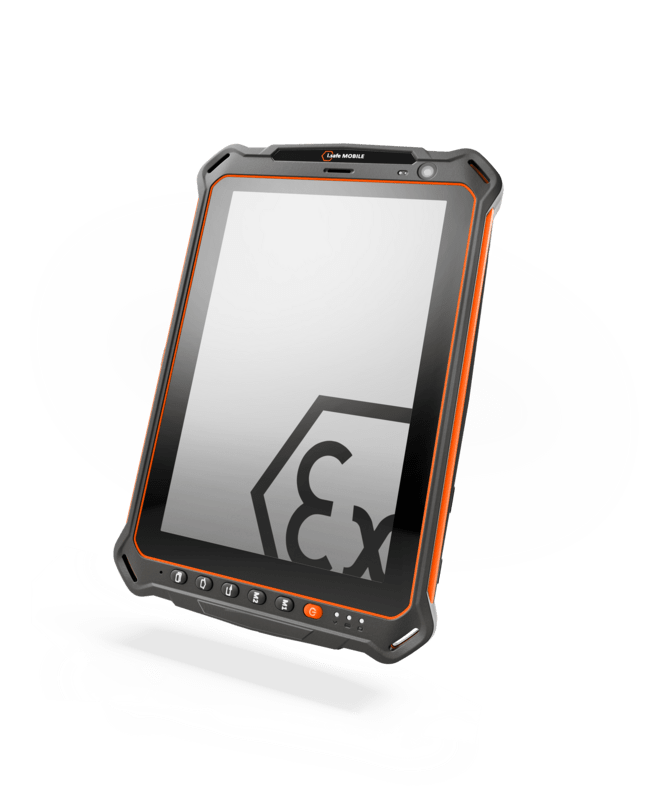

csm_PHO_PRO_FRO_IS930.M1-Front__SALL__AIN__V6_4efb86893f

IS930.M1

The robust, powerful and particularly dust-proof tablet of the Industry 4.0 generation is ideal for use in the mining industry. The Android Enterprise Recommended device can be used immediately thanks to its zero-touch functionality and is ideally suited for maintenance applications in the IoT environment. The 8-inch display, two freely programmable buttons, a long-life battery, a practical hand strap, leather bag with a shoulder/belt or carry strap system are further highlights.

Category: Products Mining

Description

Advantages

Further Features

Approvals

Contents

Downloads

Operating system	Android™ 13
Processor	Qualcomm® Snapdragon SDM660 Octa Core
Memory	4 GB RAM 64 GB internal memory microSD to 512 GB
Frequencies	2G GSM 850/900/1800/1900 MHz 3G WCDMA B1/2/4/5/8 4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28A/B28B/B29/B30/B66 4G LTE-TDD: B38/B39/B40/B41 4G LTE-TD: B34/B39
Dimensions	Size: 237 x 156 x 22 mm Weight: 866 g
Display	8,0″ (20,32 cm) Corning® Gorilla® Glass V3 usable with gloves
Battery	8160 mAh, 3,7 V
Camera	13 MP AF rear 5 MP FF front
Connectivity	Wi-Fi® 2.4 GHz + Wi-Fi® 5.0 GHz: IEEE 802.11 a/b/g/n/ac/e/k/r/h with hotspot Bluetooth® 5 GPS, A-GPS, Glonass, Beidou, Galileo Near Field Communication
Types of protection	IP68 dust-/waterproof MIL-STD 810H Usable from -20 °C to +60 °C

Advantages

Android™ 13
Very high level of safety in the mining sector with the risk of firedamp
Tough, high-performance device
Easy to use and easy to carry and hold thanks to the hand strap
Individually programmable keys
Android Enterprise Recommended
Zero-touch capable
Ideal for IoT maintenance applications
Display can be operated with gloves

Further Features

SOS key for loneworker protectionLWP ready (third party application required, based on country specific regulations)

Amplified loudspeaker

Accelerometer, Gyroscope, Light, Magnetic, Proximity, Pressure sensors

Micro-SIM

USB-C, Magnetic charger port, Docking Station, Multi Charger

Download Datasheet

Approvals

ATEX Mining	Europe	I M1 Ex ia I Ma IP64
IECEx Mining	International	Ex ia I MA IP64
ANZEx Mining	Australia	Ex ia I Ma
SANS Mining	South Africa	Ex ia I Ma IP64
EAC Mining	Russia	PB Ex ib I Mb X

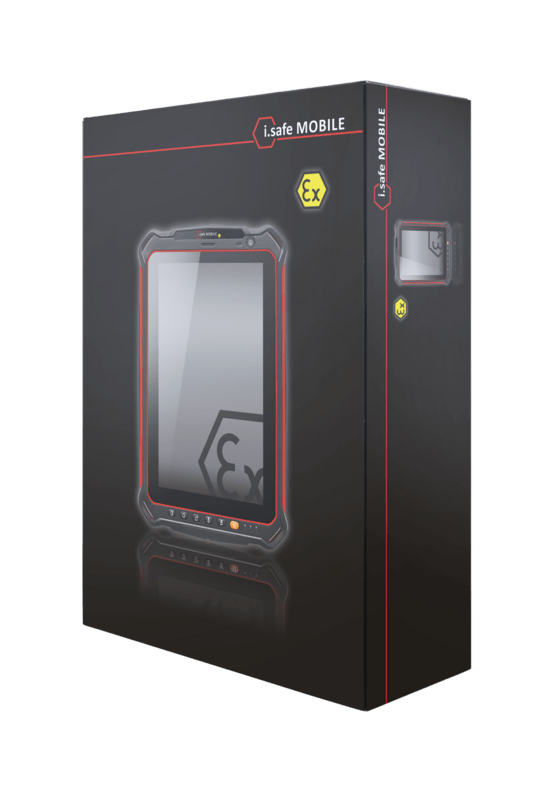

Tablet with integrated battery

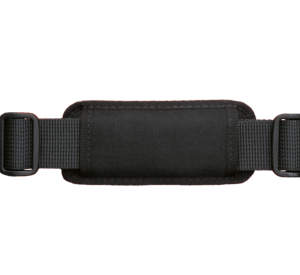

Hand Strap
Power Adapter universal
Earphone
i.safe PROTECTOR 2.0
i.safe PROTECTOR 3.0
Display Protection Foil
Safety Instructions
Quick Start Manual

Downloads

Datasheet

Datasheet IS930.M1 (English)

Download (PDF, 1 MB)

Manual

	Operating Manual IS930.M1	Download (PDF, 4 MB)
	Quick Start Manual IS930.M1	Download (PDF, 2 MB)
	Safety Instructions IS930.M1	Download (PDF, 1 MB)
	FCC Statement IS930.x	Download (PDF, 146 KB)
	IC Statement IS930.x	Download (PDF, 74 KB)
	Quick Start Manual IS930.M1 Mining +GD	Download (PDF, 2 MB)
	Safety Instructions IS930.M1 Mining +GD	Download (PDF, 1 MB)
	Operating Manual IS930.M1 Mining +GD	Download (PDF, 3 MB)
	Quick Start Manual IS-DS930.1	Download (PDF, 626 KB)
	Quick Start Manual IS-MC930.1	Download (PDF, 726 KB)

Certificates

	DoC IS930.M1	Download (PDF, 247 KB)
	ATEX IS930.M1	Download (PDF, 865 KB)
	IECEx IS930.M1	Download (PDF, 1 MB)
	ANZEx IS930.M1	Download (PDF, 302 KB)
	SANS IS930.M1	Download (PDF, 408 KB)
	EAC IS930.M1	Download (PDF, 2 MB)
	DoC IS-MC930.1	Download (PDF, 243 KB)
	DoC IS-DS930.1	Download (PDF, 244 KB)
