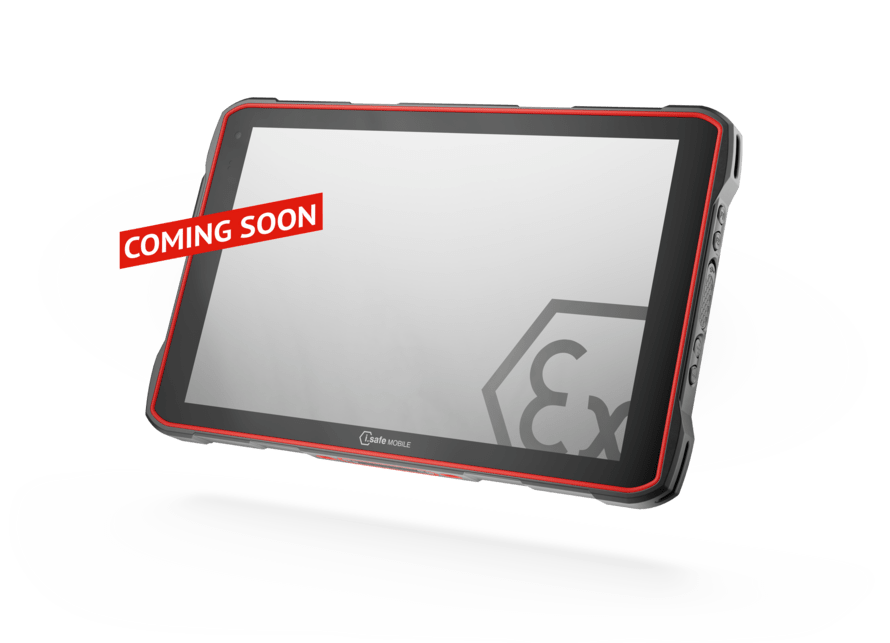

IS945.1

The 10.1-inch 5G Windows tablet for data communication in the process industry and in automation integrates seamlessly into the existing system landscape with 4G/5G campus networks or Wi-Fi 6. It is equipped with a powerful, IIoT-optimised chipset from Qualcomm® Technologies, Inc. Other highlights of the robust and easy-to-handle tablet include a 16-pin ISM interface, 12-pin ISM interface for Docking Station, Wi-Fi 6, Bluetooth 5.2 and NFC support, a replaceable, long-lasting battery, freely programmable buttons and main and front cameras.

Category: Products Zone 1/21

Description

Advantages

Further Features

Approvals

Contents

Downloads

Operating system	Windows® 11 IoT Enterprise for Arm64
Processor	Qualcomm® QCM6490 Octa Core
Memory	8 GB RAM 128 GB internal memory microSD to 512 GB
Frequencies	4G LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12 MFBI/B13/B14/B17/B20/B25/B26/B28A/B28B/B29/B30/B66/B71/B68 4G LTE-TDD: B38/B39/B40/B41/B42/B43/B48 5G NR: n1/n2/n3/n5/n7/n8/n12/n14/n20/n25/n28/n30/n38/n40/n41/n48/n66/n71/n77/n78/n79
Dimensions	Size: 266,17 x 168,46 x 19,82 mm Weight: 1059 g
Display	10,1″ (25,654 cm) Corning® Gorilla® Glass V3 usable with gloves
Battery	8160 mAh, 3,7 V replaceable
Camera	12 MP AF rear 5 MP FF front
Connectivity	Wi-Fi® 6: IEEE 802.11 a/b/g/n/ac/e/k/r/ax/v with hotspot Bluetooth® 5.2 GPS, A-GPS, Glonass, Beidou, Galileo Near Field Communication
Types of protection	IP68 dust-/waterproof MIL-STD 810H Usable from -20 °C to +55 °C

Advantages

Windows operating system
Processor with long-term support: Qualcomm® QCM6490 Octa Core
Large memory with 8 GB RAM, 128 GB internal memory expandable with microSD memory up to 512 GB
Clear 10.1″ display with Corning® Gorilla® Glass 3rd generation
Replaceable, powerful battery
Camera on the front and back
Wireless communications such as Wi-Fi® , Bluetooth®, Near Field Communication (NFC), GPS, A-GPS, Glonass, A-Glonass, Beidou, Galileo
Programmable red key (e.g. for lone worker protection/SOS)
Additional programmable side buttons (assignable via “Button App”)
Mounting VESA 100
Amplified loudspeaker for noisy work environments
Type of protection: IP68 waterproof/dustproof
MIL-STD-810H
Can be used from -20 °C to +55 °C

Further Features

SOS key for loneworker protectionLWP ready (third party application required, based on country specific regulations)

Amplified loudspeaker

Accelerometer, Gyroscope, Light, Magnetic, Proximity, Pressure sensors

Function key red (function key assignable for different 3rd party application; e.g. loneworker protection)

Dual-SIM (Nano-SIM + eSIM)

Freely programmable key

USB-C, Docking Station

Download Datasheet

Approvals

ATEX	Europe	II 2G Ex ib IIC T4 Gb II 2D Ex ib IIIC T135°C Db
IECEx	International	Ex ib IIC T4 Gb Ex ib IIIC T135°C Db
NEC500	North America	Class I Div. 1 Groups A, B, C, D, T4 Class II Div. 1 Groups E, F, G, T135 °C Class III
IA	South Africa	Ex ib IIC T4 Gb Ex ib IIIC T135°C Db
PCEC	China	Ex ib IIC T4 Gb Ex ib IIIC T135°C Db
INMETRO	Brazil	Ex ib IIC T4 Gb Ex ib IIIC T135°C Db
Japan-Ex	Japan	Ex ib IIC T4 Gb Ex ib IIIC T135°C Db

Tablet
Battery
Hand Strap
i.safe PROTECTOR 2.0
Power Adapter universal
Display Protection Foil
Screwdriver
Safety Instructions

Downloads

Datasheet

Datasheet IS945.1 (English)

Download (PDF, 213 KB)

Manual

Quick Start Manual IS-MC930.1

Download (PDF, 726 KB)

Certificates

	ATEX IS945.1 (English)	Download (PDF, 1 MB)
	NEC IS945.1	Download (PDF, 192 KB)
	IA Southern Afrika (MTEx) IS940.1-IS.945.1	Download (PDF, 166 KB)
	PCEC IS940.1 / IS945.1	Download (PDF, 198 KB)
	INMETRO IS940.1 / IS945.1	Download (PDF, 305 KB)
	Japan-Ex, CSA IS940.1-IS945.1	Download (PDF, 1 MB)
