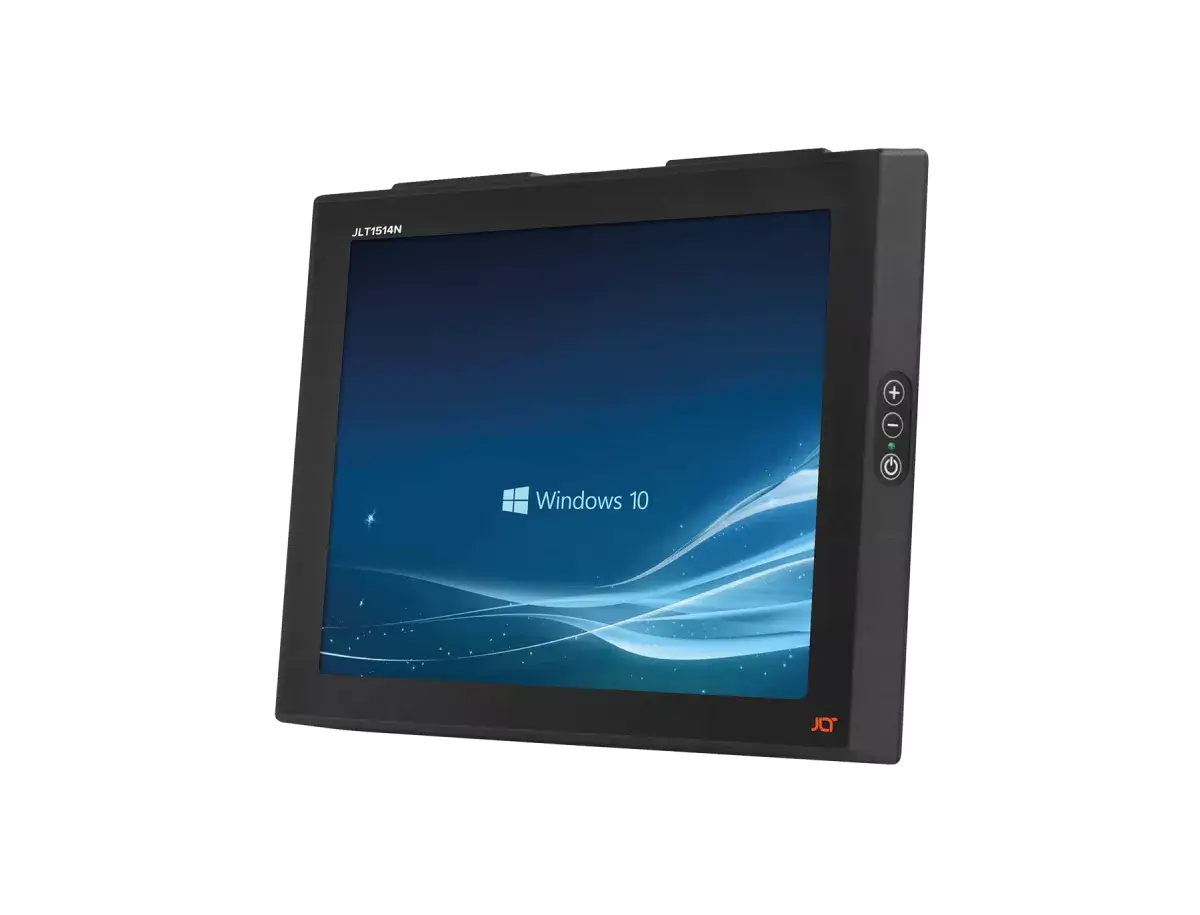

The JLT1514N is the large screen logistics computer from JLT. With proven reliability and the latest processor technology, they deliver the lowest total cost for a wide variety of logistics applications where large screens are needed. They have an integrated un-isolated 9-36 VDC or isolated 18-60 VDC power supply to enable use with almost any vehicle.
If you’re looking for a reliable computer with a large 15-inch monitor to be used in your warehouse vehicle, port crane, or simply mounted on the wall, take a look at the JLT1514N fixed-mount computer. It’s based on the JLT-series of 10- and 12-inch logistics computers that has been proven in thousands of customer applications around the world.
It delivers the reliability and value required for a wide range of logistics applications where a large display size is a requirement. The JLT1514N comes with an Intel® x6012E processor, Windows operating system and all essential features required for a simple, quick, and cost-effective installation. As with the rest of the JLT logistics computer series, the JLT1514N is constructed from the bottom up for maximum reliability and long life.
370 mm (w) x 305 mm* (h) x 67 mm (d)
14.6 inch (w) x 12 inch* (h) x 2.6 inch (d)
*antenna domes incl.
5.3 kg, 11.7 LB
Intel® x6012E
8GB DDR3
CFast 60GB, 120GB, 240GB
15” XGA LED 800 NIT
15” XGA LED 500 NIT
Resistive 4-wire touch screen
Windows 11 IoT Enterprise LTSC
Windows 10 IoT LTSC
v4.2
A-GPS/GLONASS/BEIDOU (optional)
Dualband WLAN 802.11 ac, MU-MIMO supported
4G (LTE) up to 100 Mbps download speed (optional)
User configurable external or internal WLAN and Bluetooth antennas
WLAN dual diversity antennas (PIFA)
-30°C to 55°C / -22°F to 131°F
-35°C to 75°C / -31°F to 167°F
Roxtec sealing cable protection (optional)
10–95% RH
IP65 – IEC 60529:2001
5–500 Hz/0,04 m/s2 XYZ – IEC 60068-2-64 Fh
30g for 11ms XYZ – IEC 60068-2-27
810G in applicable areas
HD audio
Waterproof stereo speakers
LED dimming +/-

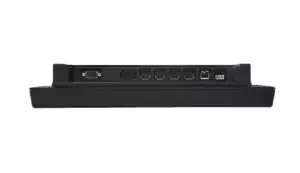

Power
1x Ethernet 10/100/1000
1x RS232 with 5V
4x USB 2.0
Internal battery for graceful shut down at unexpected power outages
9-36 VDC unisolated
18-60 VDC isolated
