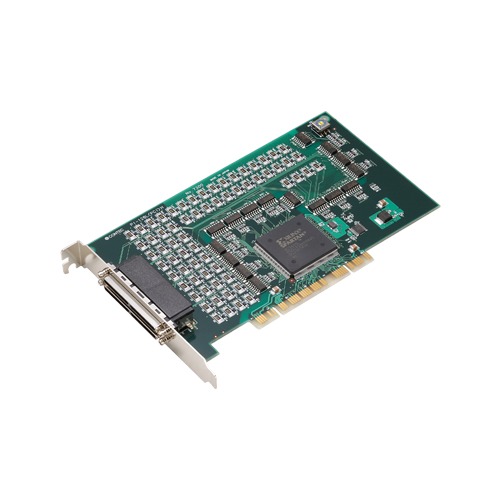

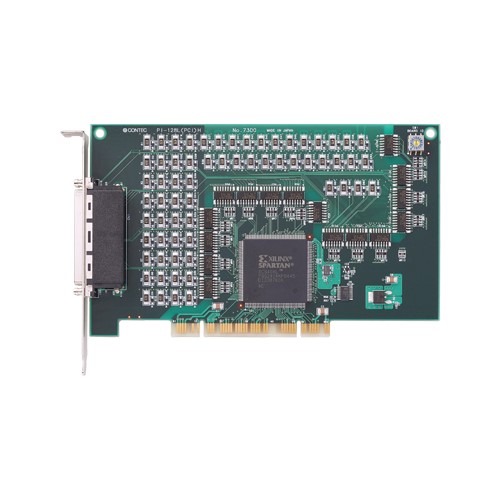

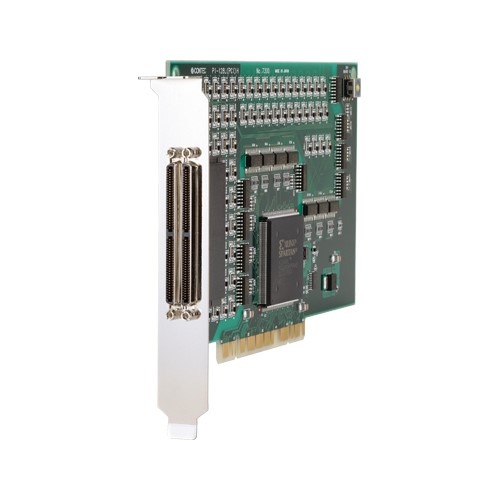

PI-128L(PCI)H

  • A different external power supply can be used for each common pin as it is shared by 16 channels.
  • Opto-coupler used to electrically isolated input signal interface from the PCI bus, offering good noise immunity.
  • Capable of using up to 16 channels of input signals as interrupt inputs. You can also select the interrupt trigger edge of the input signal.
  • Digital filtering that prevents input signal noise and chattering.

Data Sheet PDF

SKU: PI-128L(PCI)H Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

This board is a PCI-compliant interface board for input/output of digital signals. This board can input the digital signal of 12 – 24VDC. PI-128L(PCI)H can input up to 128 channels. With the Windows version, the Linux version driver (API-PAC(W32)).

  • A different external power supply can be used for each common pin as it is shared by 16 channels.
  • Opto-coupler used to electrically isolated input signal interface from the PCI bus, offering good noise immunity.
  • Capable of using up to 16 channels of input signals as interrupt inputs. You can also select the interrupt trigger edge of the input signal.
  • Digital filtering that prevents input signal noise and chattering.

Specifications

Specifications
Add-on Module
Series
Bus Specification PCI
Size Short Size
Used Connector 2x 0.8mm-pitch 100-pin (Female)
Digital I/O
Input Channels 128-ch
Output Channels –
Bi-directional I/O Channels –
Response Time (Input) 200μsec (max.)
Response Time (Output) –
Operating Voltage (Input) 12 to 24VDC
Operating Voltage (Output) –
Input Circuit Opto-isolated input (for sink current output)
Output Circuit –
Built-in Power Supply –
Supported OS
Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
  • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

Ordering Informations

Ordering Information
Model Description Certification
PI-128L(PCI)H Digital input PCI card 128ch (isolated 12 – 24VDC)
  • CE marking
  • VCCI
Options
Device Drivers
Item Item Name
API-DIO(98/PC) Windows version Digital I/O Driver
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver
API-TIMER(WDM) Windows Driver for Timer Driver
IO-LIB(WDM) Windows General-purpose I/O Driver
Development Support Tools
Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN LabVIEW Data Acquisition Library
VI-DAQ VI Library of data acquisition for LabVIEW
Expansion Accessory Module
Item Item Name
CM-64L Signal monitor Accessory for Digital I/O
Cable
Item Item Name
PCA100P 100pin 0.8mm-pitch Connector to Open-Ended, Flat Cable
PCB10096PS 96pin 1.27mm Pitch Conversion Shield Cable for 100pin 0.8mm Pitch Connector
PCB100PS Both sides with connector shield cable for 100 pin 0.8mm pitch connectors
PCB100WS 37pin D-SUB x2 Distribution Shield Cable for 100pin 0.8mm Pitch Connector
Terminal
Item Item Name
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
DTP-64A Screw Terminal (M3 x 96)
EPD-100A Screw Terminal (M3 x 100)
EPD-37 Screw Terminal (M3.5 x 37)
EPD-96 Screw Terminal (M3.5 x 96)
EPD-96A Screw Terminal (M3 x 96)
Other Accessories
Item Item Name
CCB-96 Connector conversion card
Extended Warranty Service
Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
