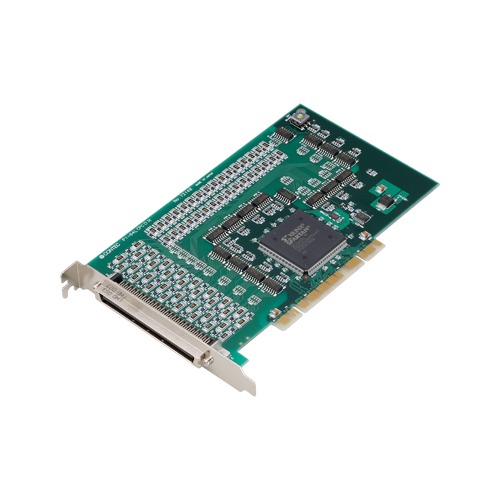

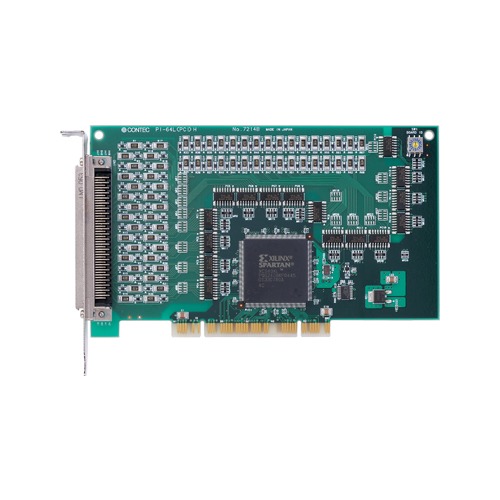

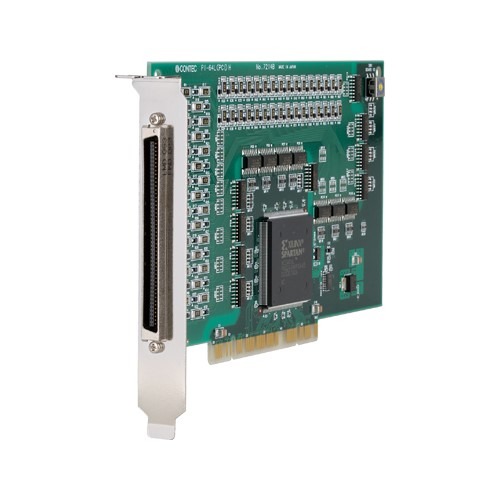

PI-64L(PCI)H

  • It can respond to a common independently different external power supply because of the common composition of a 16-point unit.
  • Since the PCI bus (personal computer) and the input-and-output interface are isolated by the photo-coupler, it excels in noise-protection nature.
  • 32 points of an input signal can be used as an interruption input. Moreover, the edge of the input signal which generates interruption can also be chosen.
  • It has the digital filter function for preventing the incorrect input by the noise or the chattering.
  • PI-64L(PCI)H and PI-64L(PCI) are connector pin compatibles.

Data Sheet PDF

SKU: PI-64L(PCI)H Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

This product is a PCI bus-compliant interface board for input of digital signals. This product can input digital signals at 12 – 24VDC. PI-64L(PCI)H features 64 opto-coupler isolated inputs (supporting current sink output). You can use 32 input signals as interrupt inputs. In addition, the digital filter function to prevent wrong recognition of input signals is provided.Windows/Linux device driver is supported with this product.

  • It can respond to a common independently different external power supply because of the common composition of a 16-point unit.
  • Since the PCI bus (personal computer) and the input-and-output interface are isolated by the photo-coupler, it excels in noise-protection nature.
  • 32 points of an input signal can be used as an interruption input. Moreover, the edge of the input signal which generates interruption can also be chosen.
  • It has the digital filter function for preventing the incorrect input by the noise or the chattering.
  • PI-64L(PCI)H and PI-64L(PCI) are connector pin compatibles.

Specifications

Specifications
Add-on Module
Series
Bus Specification PCI
Size Short Size
Used Connector 1.27mm-pitch 96-pin (Male)
Digital I/O
Input Channels 64-ch
Output Channels –
Bi-directional I/O Channels –
Response Time (Input) 200μsec (max.)
Response Time (Output) –
Operating Voltage (Input) 12 to 24VDC
Operating Voltage (Output) –
Input Circuit Opto-isolated input (for sink current output)
Output Circuit –
Built-in Power Supply –
Supported OS
Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
  • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

Ordering Informations

Ordering Information
Model Description Certification
PI-64L(PCI)H Digital input PCI card 64ch (isolated 12 – 24VDC)
  • CE marking
  • VCCI
Options
Device Drivers
Item Item Name
API-DIO(98/PC) Windows version Digital I/O Driver
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver
API-TIMER(WDM) Windows Driver for Timer Driver
IO-LIB General I/O Driver
IO-LIB(WDM) Windows General-purpose I/O Driver
Development Support Tools
Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN LabVIEW Data Acquisition Library
VI-DAQ VI Library of data acquisition for LabVIEW
Expansion Accessory Module
Item Item Name
CM-32L Signal monitor Accessory for Digital I/O
CM-64L Signal monitor Accessory for Digital I/O
Cable
Item Item Name
PCA96P A one end connector flat cable for 96 pin Half-Pitch connector
PCA96PS-P A one end connector shield cable for 96 pin Half-Pitch connector (Mold type)
PCB96P Flat Cable with Connectors on both sides for 96-pin Half Pitch Connectors
PCB96PS-P Both sides with connector shield cable for 96 pin Half-Pitch connector(Mold type)
PCB96WS-P 96pin Half-Pitch to 2 x 37pin D-type(M), Shield Cable
Terminal
Item Item Name
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
DTP-64A Screw Terminal (M3 x 96)
EPD-37 Screw Terminal (M3.5 x 37)
EPD-96 Screw Terminal (M3.5 x 96)
Other Accessories
Item Item Name
CCB-96 Connector conversion card
Extended Warranty Service
Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
