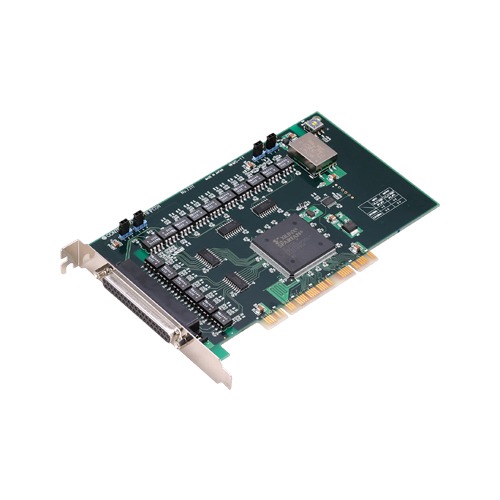

PIO-1616TB(PCI)H_img1PIO-1616TB(PCI)H_img1

PIO-16/16TB(PCI)H

  • Noise-protection nature is improving by Opto-isolated input and output
  • Signal arrangement of a connector is same as PIO-16/16TB(PCI), and compatibility
  • It can input 16 points TTL level digital signal.
  • It can output 16 points TTL level digital signal
  • All the 16 input signals can be used as an interruption input. Moreover, the edge of the input signal which generates interruption can also be chosen. It has the digital filter function in which the noise and chattering of an input signal can be prevented
  • The power supply for a photo-coupler drive is built in. Moreover, selection of a built-in power supply (5VDC, 600mA) / external power supply is possible

Data Sheet PDF

SKU: PIO-16/16TB(PCI)H Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

PIO -16/16TB(PCI)H is the interface board of the PCI bus conformity which outputs and inputs a TTL level digital signal. The board is capable up to 16 input and 16 output. The driver (API-PAC(W32)) for Windows and Linux appending.

  • Noise-protection nature is improving by Opto-isolated input and output
  • Signal arrangement of a connector is same as PIO-16/16TB(PCI), and compatibility
  • It can input 16 points TTL level digital signal.
  • It can output 16 points TTL level digital signal
  • All the 16 input signals can be used as an interruption input. Moreover, the edge of the input signal which generates interruption can also be chosen. It has the digital filter function in which the noise and chattering of an input signal can be prevented
  • The power supply for a photo-coupler drive is built in. Moreover, selection of a built-in power supply (5VDC, 600mA) / external power supply is possible

Specifications

Specifications
Add-on Module
Series
Bus Specification PCI
Size Short Size
Used Connector D-SUB 37-pin (Female)
Digital I/O
Input Channels 16-ch
Output Channels 16-ch
Bi-directional I/O Channels –
Response Time (Input) 1μsec (max.)
Response Time (Output) 1μsec (max.)
Operating Voltage (Input) 5VDC-TTL
Operating Voltage (Output) 5VDC-TTL
Input Circuit Opto-isolated TTL level input (Negative logic)
Output Circuit Opto-isolated TTL level output (Negative logic)
Built-in Power Supply 5VDC
Supported OS
Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
  • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

Ordering Informations

Ordering Information
Model Description Certification
PIO-16/16TB(PCI)H Digital I/O PCI card 16ch/16ch (5VDC on-board power supply high-speed isolated 5VDC-TTL)
  • CE marking
  • VCCI
Options
Device Drivers
Item Item Name
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver
API-TIMER(WDM) Windows Driver for Timer Driver
IO-LIB(WDM) Windows General-purpose I/O Driver
Development Support Tools
Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN LabVIEW Data Acquisition Library
Expansion Accessory Module
Item Item Name
CM-32L Signal monitor Accessory for Digital I/O
Cable
Item Item Name
PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37P 37pin D-type(M) at Each End, Flat Cable
PCB37PS-P 37pin D-type(M) at Each End, Shield Cable
Terminal
Item Item Name
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
EPD-37 Screw Terminal (M3.5 x 37)
Extended Warranty Service
Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
