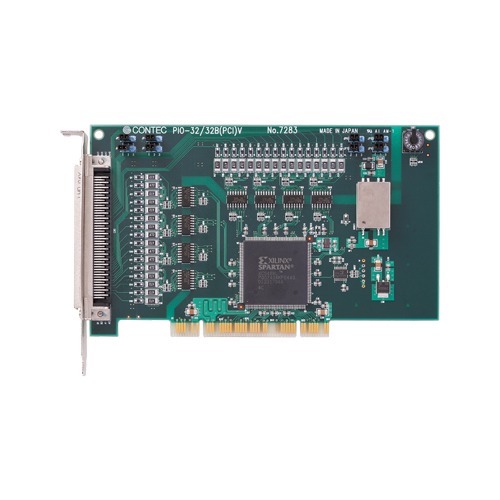

PIO-32/32B(PCI)V

  • A different external power supply can be used for each common pin as it is shared by 16 channels
  • The PCI bus (personal computer) and the I/O interface are isolated from each other by an opto-coupler, offering good noise immunity
  • You can use 31 channels of the input signals as interrupt events. You can also select the interrupt trigger edge of the input signal
  • The board has a digital filter feature to prevent noise or chatter from causing erroneous inputs
  • Up to 35VDC, 100mA per output signal, max
  • An on-board isolated supply(12VDC, 250mA) is equipped. You can select to use either this on board supply or external power supply for driving photo-isolation circuits

Data Sheet PDF

SKU: PIO-32/32B(PCI)V Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

PIO-32/32B(PCI)V is a PCI bus-compliant interface board for input/output of digital signals. It can be inputted by switch and relay. PIO-32/32B(PCI)V can input and output up to 32 channels. And this board is the equivalent of PIO-32/32B(PCI)H. With the Windows version, the Linux version driver (API-PAC(W32)).

  • A different external power supply can be used for each common pin as it is shared by 16 channels
  • The PCI bus (personal computer) and the I/O interface are isolated from each other by an opto-coupler, offering good noise immunity
  • You can use 31 channels of the input signals as interrupt events. You can also select the interrupt trigger edge of the input signal
  • The board has a digital filter feature to prevent noise or chatter from causing erroneous inputs
  • Up to 35VDC, 100mA per output signal, max
  • An on-board isolated supply(12VDC, 250mA) is equipped. You can select to use either this on board supply or external power supply for driving photo-isolation circuits

Specifications

Specifications
Add-on Module
Series
Bus Specification PCI
Size Short Size
Used Connector 1.27mm-pitch 96-pin (Male)
Digital I/O
Input Channels 32-ch
Output Channels 32-ch
Bi-directional I/O Channels –
Response Time (Input) 200μsec (max.)
Response Time (Output) 200μsec (max.)
Operating Voltage (Input) 12 to 24VDC
Operating Voltage (Output) 12 to 24VDC
Input Circuit Opto-isolated input (for sink current output)
Output Circuit Opto-isolated open-collector output (current sink type)
Built-in Power Supply 12VDC
Supported OS
Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2022; Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
  • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

Ordering Informations

Ordering Information
Model Description Certification
PIO-32/32B(PCI)V Digital I/O PCI card 32ch/32ch (12VDC on-board power supply isolated 12 – 24VDC)
  • CE marking
  • VCCI
Options
Device Drivers
Item Item Name
API-DIO(98/PC) Windows version Digital I/O Driver
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver
API-TIMER(WDM) Windows Driver for Timer Driver
IO-LIB(WDM) Windows General-purpose I/O Driver
Development Support Tools
Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN LabVIEW Data Acquisition Library
VI-DAQ VI Library of data acquisition for LabVIEW
Expansion Accessory Module
Item Item Name
CM-32L Signal monitor Accessory for Digital I/O
CM-64L Signal monitor Accessory for Digital I/O
Cable
Item Item Name
PCA96P A one end connector flat cable for 96 pin Half-Pitch connector
PCA96PS-P A one end connector shield cable for 96 pin Half-Pitch connector (Mold type)
PCB96P Flat Cable with Connectors on both sides for 96-pin Half Pitch Connectors
PCB96PS-P Both sides with connector shield cable for 96 pin Half-Pitch connector(Mold type)
PCB96WS-P 96pin Half-Pitch to 2 x 37pin D-type(M), Shield Cable
Terminal
Item Item Name
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
DTP-64A Screw Terminal (M3 x 96)
EPD-37 Screw Terminal (M3.5 x 37)
EPD-37A Screw Terminal (M3 x 37)
EPD-96 Screw Terminal (M3.5 x 96)
EPD-96A Screw Terminal (M3 x 96)
Other Accessories
Item Item Name
CCB-96 Connector conversion card
Extended Warranty Service
Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
