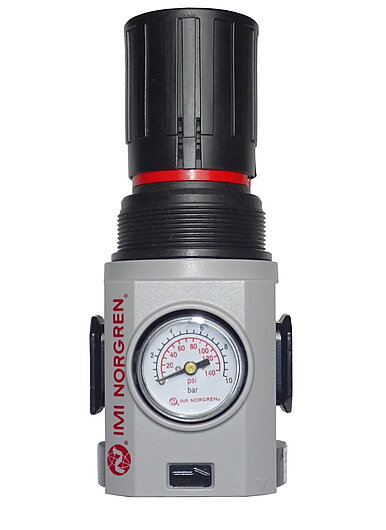

This upstream connecting pressure reducer is a diaphragm pressure regulator with secondary venting for lowering the pressure of externally supplied compressed air.The settings are made by means of a handwheel. The set reduced pressure can be read on a pressure gauge.
ATEX:Ex II 2G Ex h IIC T6 GbEx II 2D Ex h IIIC T85°C Db
Operating temperature-20 °C to +65 °C(-4 °F to 149 °F)
| Material | Body: Die cast aluminium Bottom covers: Acetal Bonnet: POM / Aluminium Valve: PP Elastomers: NBR |
|---|---|
| Pressure | Max. input pressure (p1): 20 bar Pressure regulation range (p2): 0.3 to 10 bar, infinitely variable |
| Installation | The mounting position is optional, pay attention to the flow direction marking (arrow) on the enclosure; Mounting in cabinet borehole dia. 21 mm |
| Weight | With pressure gauge approx. 0.6 kg |
| Connection | Air connection G 1/2″ |
