| Mounting | Panel Mount |
|---|
| Supported OS | Windows 10; Windows 8.1; Windows 7 |
|---|
| CPU Generation (Development code) | Bay Trail |
|---|---|
| Processor | Atom E3845 |
| CPU socket | – |
| Memory | up to 8GB |
| RAS | – |
| GPU | – |
| AI Performance | – |
| Security | – |
| LCD size | 15-inch |
|---|---|
| LCD resolution | 1024 x 768 (XGA) |
| Touch panel resolution | – |
| Detection method | Projected capacitive touch (PCAP) |
| Video | 1x DVI-I |
|---|---|
| LAN | 2x 1000BASE-T |
| Wireless | – |
| Audio | 1x Line out; 1x Mic-in |
| I/O | 1x USB3.2 Gen1 (USB3.0); 6x USB2.0; 3x RS-232C; 1x RS-232C/422A/485 |
| Memory card | 2x CFast slots; 1x CFast slot |
| Expansion bus | – |
|---|---|
| Drive bay | 1x 2.5-inch bay (SATA) |
| Input voltage | 12 to 24VDC |
|---|
| Operating temperature | 0 to 50°C (32 to 122°F) (w/ Extended temp. HDD/SDD); 0 to 40°C (32 to 104°F), (w/ HDD) |
|---|---|
| Storage temperature | -10 to 60°C (14 to 140°F) |
| Standards & Certifications | CE; FCC Class A |
| Model | Description | Certification |
|---|---|---|

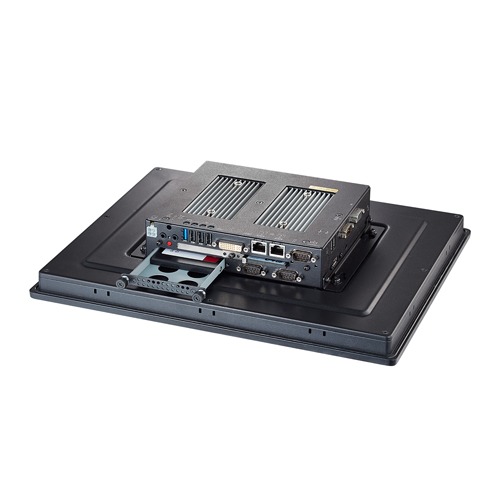

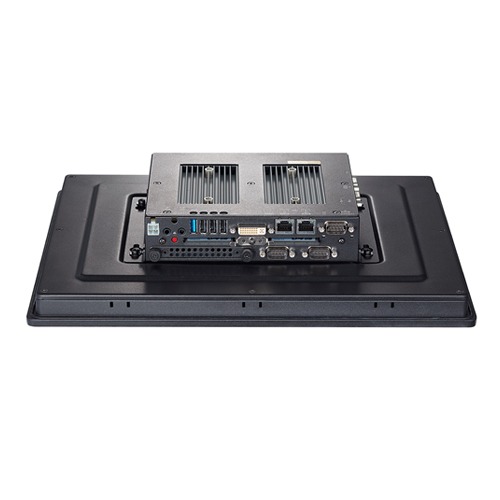

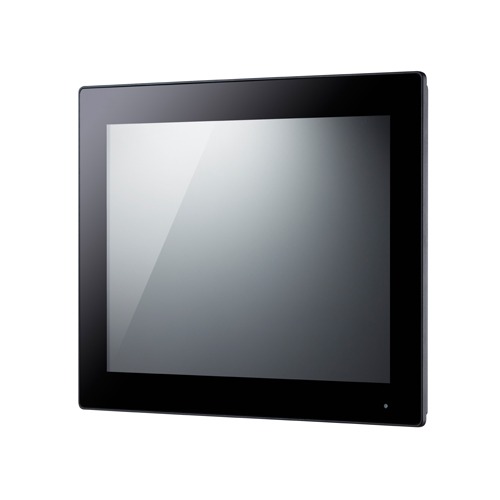

| PT-S959SDHXC-DC7000 [Limited Stock] | [End of Repair Service : December 31, 2030] 15″ capacitive PANEL PC w/Atom E3845, 4GB DDR3L memory |
|
| PT-S959SDHXF2C-DC7000 [Limited Stock] | [End of Repair Service : December 31, 2030] 15″ capacitive PANEL PC w/Atom E3845, 4GB DDR3L memory, support 2x CFast |
|
