csm_product-image_radox-MFH_bd106e20eacsm_product-image_radox-MFH_bd106e20ea

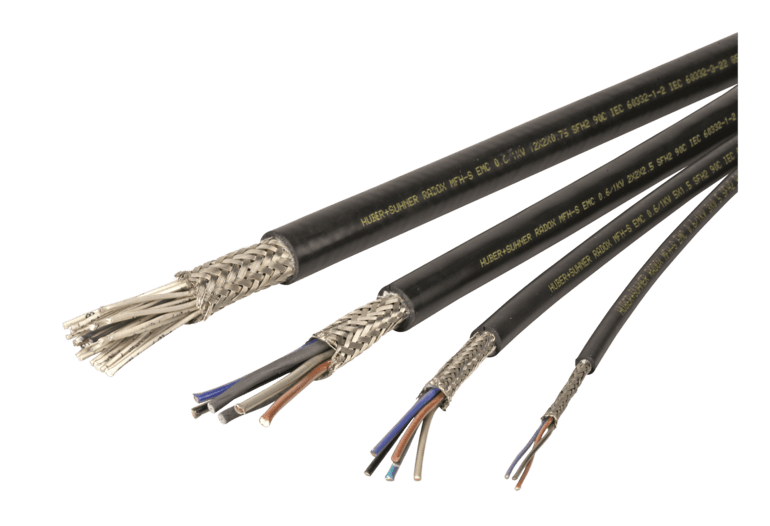

RADOX MFH S-B offshore power cable

Multicore, 600/1000V, 0,5 to 6mm2, DNV certified, NEK606 compliant
Can replace RFOU power cable up to 6mm2
  • Up to 1/3 of the size compared to RFOU
  • Extremely flexible – fine stranded class 5
  • MUD resistant acc. to NEK606
  • DNV certified
  • High resistance to heat, cold, oil, abrasion, ozone and weathering
  • Temperature range -50°C to +120°C
  • Resistant to hydraulic and turbine oils
  • Flame retardant IEC 60332
  • Tested for 1mill cycles in drag chain – also available as instrument cable
  • Stock in Norway – mostly 0,75 and 1,5mm up to 24 cores
  • Can be sold world wide
Category:
Description
Technical Data
Other
Data Sheets

Halogen free offshore cable for harsh environments. DNV approved and meets the mud resistant requirements in NEK TS 606:2022. Temperature range -50°C to +120°C. Tin plated copper braid, coverage density +90%. Sheath: RADOX Elastomer SHF2 acc. to IEC 60092-360. Standard colour black.

Marking

IEC 60332IEC 60092- 360, An. DNEK TS 606:2022

Ambient Temperature

Temperature range -50°C to +120°C

Technical Data

Structure Cross sections: from 0,5 to 6mm2

Number of conductors: Up to 80

Other

Current rating document RADOX MFH-SB
Drag chain test RADOX MFH-SB
DNV type approval certificate RADOX MFH-SB

Data Sheets

Data Sheet for RADOX MFH S-B
