RRY-16C-PE_img1RRY-16C-PE_img1

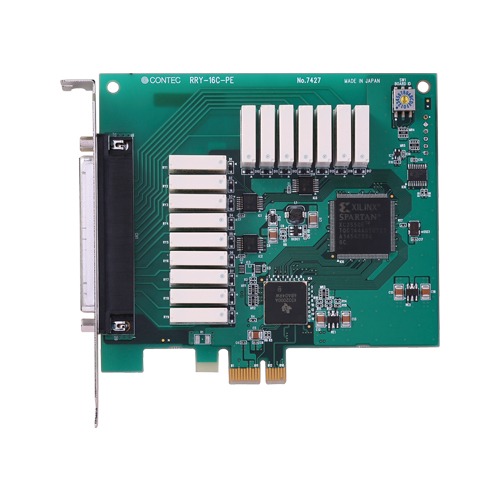

RRY-16C-PE

  • 16 independent common reed relay contact outputs (with a single make contact)
  • Functions and connectors are compatible with PCI compatible card RRY-16C(PCI)H.
  • Windows/Linux compatible driver libraries are attached.
  • LabVIEW is supported by a plug-in of dedicated library VI-DAQ.

Data Sheet PDF

SKU: RRY-16C-PE Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

This product is PCI Express bus-compliant interface card that output signals to reed relay contacts. It is equipped with 16 points of independent common reed relay output. It can support a different outside power supply by one point of (one common) unit for independent common. The output rating is designed in greatest 2A 125V (AC) or 2A 30V (DC) for per channel.

  • 16 independent common reed relay contact outputs (with a single make contact)
    • This product has 16 reed relay outputs with a single make contact. Independent common terminal provided per channel, capable of supporting a different external power supply. High-capacity output rating is designed to be a maximum of 2A 125V (AC), 2A 30V (DC) per channel.
  • Functions and connectors are compatible with PCI compatible card RRY-16C(PCI)H.
    • The functions same with PCI compatible card RRY-16C(PCI)H are provided. In addition, as there is compatibility in terms of connector shape and pin assignments, it is easy to migrate from the existing system.
  • Windows/Linux compatible driver libraries are attached.
    • Using the attached driver library API-PAC(W32) makes it possible to create applications of Window/Linux. In addition, a diagnostic program by which the operations of hardware can be checked is provided.
  • LabVIEW is supported by a plug-in of dedicated library VI-DAQ.
    • Using the dedicated library VI-DAQ makes it possible to make a LabVIEW application.

Specifications

Specifications
Add-on Module
Series
Bus Specification PCI Express
Size Short Size
Used Connector D-SUB 37-pin (Female)
Digital I/O
Input Channels –
Output Channels 16-ch
Bi-directional I/O Channels –
Response Time (Input) –
Response Time (Output)
Operating Voltage (Input) –
Operating Voltage (Output) to 125VAC / to 30VDC
Input Circuit –
Output Circuit Reed relay contact output
Built-in Power Supply –
Supported OS
Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
  • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

Ordering Informations

Ordering Information
Model Description Certification
RRY-16C-PE Reed relay contact output PCI Express card 16ch (isolated – 125VAC – 30VDC)
  • CE marking
  • VCCI
Options
Device Drivers
Item Item Name
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
API-TIMER(W32) Timer Driver
Development Support Tools
Item Item Name
ACX-PAC(W32) ActiveX components sets for measurement system development
DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN LabVIEW Data Acquisition Library
VI-DAQ VI Library of data acquisition for LabVIEW
Cable
Item Item Name
PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37P 37pin D-type(M) at Each End, Flat Cable
PCB37PS-P 37pin D-type(M) at Each End, Shield Cable
Terminal
Item Item Name
DTP-3C General Purpose Terminal
DTP-4C Screw Terminal
EPD-37 Screw Terminal (M3.5 x 37)
Extended Warranty Service
Item Item Name
ESP-F6 Extended warranty service package (6 years service course) (Japan only)
