RRY-16CX-USB_img1RRY-16CX-USB_img1

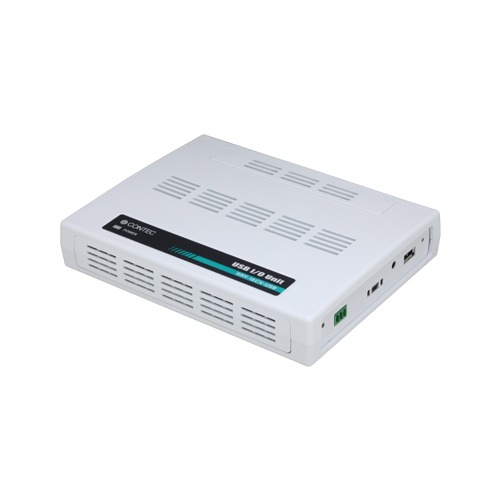

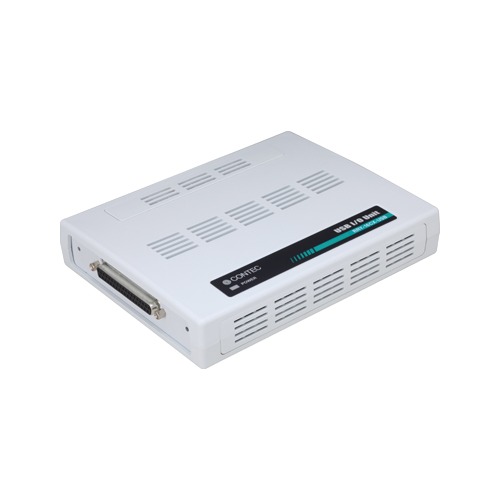

RRY-16CX-USB

  • 16 independent common reed relay contact outputs (with a single make contact)
  • Connectors are compatible with PCI/PCI Express bus-compatible board
  • USB HUB function
  • Windows compatible driver libraries are attached.

Data Sheet PDF

SKU: RRY-16CX-USB Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

This product is an USB2.0-compliant digital output unit that output signals to reed relay contacts. This product provides up to 16 independent common reed relay contact outputs. Independent common terminal provided per channel, capable of supporting a different external power supply. High-capacity output rating is designed to be a maximum of 2A 125V (AC), 2A 30V (DC) per channel. As there is compatible with PCI bus-compatible board RRY-16C(PCI)H and PCI Express bus-compatible board RRY-16C-PE in terms of connector shape and pin assignments, it is easy to migrate from the existing system. Windows driver is bundled with this product. Possible to be used as a data recording device for LabVIEW, with dedicated libraries.

  • 16 independent common reed relay contact outputs (with a single make contact)
    • This product has 16 reed relay outputs with a single make contact. Independent common terminal provided per channel, capable of supporting a different external power supply. High-capacity output rating is designed to be a maximum of 2A 125V (AC), 2A 30V (DC) per channel.
  • Connectors are compatible with PCI/PCI Express bus-compatible board
    • As there is compatible with RRY-16C(PCI)H and RRY-16C-PE in terms of connector shape and pin assignments, it is easy to migrate from the existing system. If the system of this product is created by the digital I/O driver API-DIO(98/PC), it is required to replace it with API-DIO(WDM).
  • USB HUB function
    • This product has the USB HUB function. Max. 4 RRY-16CX-USB can be used in 1 USB port of PC. When you use 4 or more RRY-16CX-USB, you can do by connecting RRY-16CX-USB to the another USB port of PC side. Also, you can connect the CONTEC’s USB device other than RRY-16CX-USB to the USB port of RRY-16CX-USB.
  • Windows compatible driver libraries are attached.
    • Using the attached digital I/O driver API-DIO(WDM) makes it possible to create applications of Windows. In addition, a diagnostic program by which the operations of hardware can be checked is provided.

Specifications

Specifications
Add-on Module
Series USB X(Mass connector)
Bus Specification USB
Size X Type
Used Connector D-SUB 37-pin (Female)
Digital I/O
Input Channels –
Output Channels 16-ch
Bi-directional I/O Channels –
Response Time (Input) –
Response Time (Output) ON: 7msec (max.) / OFF: 6msec (max.)
Operating Voltage (Input) –
Operating Voltage (Output) to 125VAC / to 30VDC
Input Circuit –
Output Circuit Reed relay contact output
Built-in Power Supply –
Supported OS
Supported OS Windows 11 (64-bit); Windows 10 IoT Enterprise LTSC 2021 (64-bit); Windows 10 IoT Enterprise 2019 LTSC (64-bit); Windows 10 IoT Enterprise LTSB 2016 (64-bit); Windows 10 (64-bit); Windows 10 (32-bit); Windows 8.1 (64-bit); Windows 8.1 (32-bit); Windows 7 (64-bit); Windows 7 (32-bit); Windows Vista (64-bit); Windows Vista (32-bit); Windows XP (64-bit); Windows XP (32-bit); Windows 2000 (32-bit); Windows Server 2019; Windows Server 2016 ; Windows Server 2012 R2; Windows Server 2008 (64-bit); Windows Server 2008 (32-bit); Windows Server 2003 (64-bit); Windows Server 2003 (32-bit); Linux
  • *The supported OS differs depending on the software used for this product. For more details about supported OS and distribution, please refer to the software Readme or online help.

Ordering Informations

Ordering Information
Model Description Certification
RRY-16CX-USB Reed relay contact output USB I/O unit 16ch (isolated – 125VAC – 30VDC) – the X series
  • CE marking
  • FCC compliant
  • VCCI
Options
Device Drivers
Item Item Name
API-DIO(LNX) Linux version Digital I/O Driver
API-DIO(WDM) Windows Driver for Digital I/O Driver
Development Support Tools
Item Item Name
DAQ-DNC-FE A collection of .NET components for DAQfast measurement system development.
DAQ-LV-WIN LabVIEW Data Acquisition Library
Cable
Item Item Name
PCA37P 37pin D-type(M) to Open-Ended, Flat Cable
PCA37PS-P A one end connector (Mold type) shield cable for 37 pin D-SUB connector
PCB37P 37pin D-type(M) at Each End, Flat Cable
PCB37PS-P 37pin D-type(M) at Each End, Shield Cable
Terminal
Item Item Name
DTP-3A Screw Terminal (M3 x 37)
DTP-3C General Purpose Terminal
DTP-4A Screw Terminal (M2.6 x 37)
DTP-4C Screw Terminal
EPD-37 Screw Terminal (M3.5 x 37)
Power Supply / AC Adapter
Item Item Name
POW-AD22GY F&eIT series AC-DC Power Supply Unit Input 85-264VAC, Output 5VDC 2A
POW-DD10GY F&eIT series DC-DC Power Supply Unit Input : DC10-30V, Output : DC5V 3A
Other Accessories
Item Item Name
BRK-USB-X USB I/O Unit Bracket for X series
