SR4000

Overview / Features

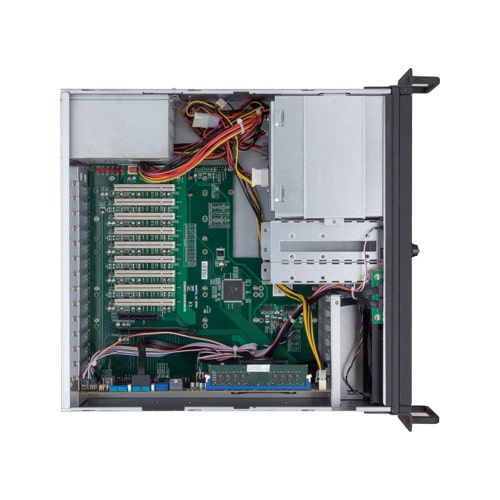

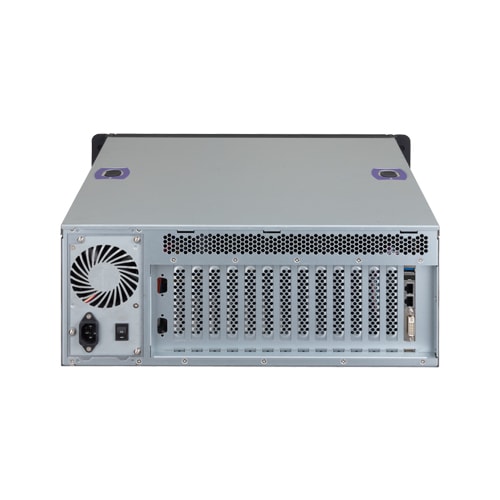

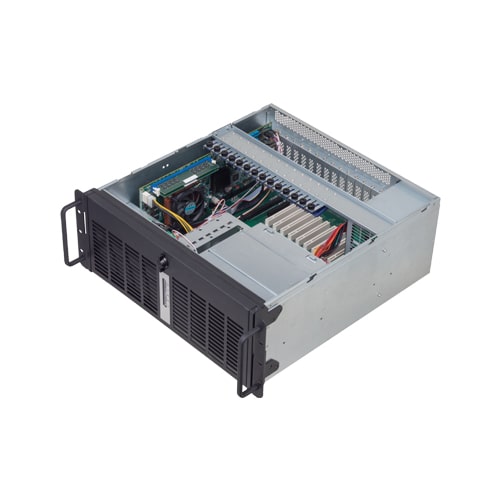

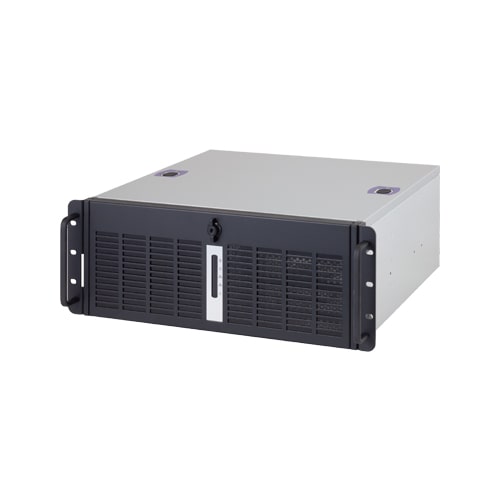

This product is a 19-inch rack-mount industrial-use PC that supports the 8th (Coffee Lake) of Intel® Core ™ series and contains the Q370 chipset. In addition to a wide range of interfaces, the SR4000 series also includes PCI bus expansion slots and PCI Express bus expansion slot.
Solution-ePC is an industrial-use computer that offers BTO (Build to Order) specifications to suit the requests of customers. Only carefully selected components offering high reliability and stable supply are used, making the product suitable for industrial use. Various selections are available to meet customer requests, including OS, CPU, memory, and storage options.

• Compatible with Intel® Core™ processor series
  • Available with a power-saving, high-performance 8th-generation Core processor for advanced computation and drawing performance while minimizing power consumption.
• 19-inch rack-mountable housing
  • The product dimensions are [430mm(W)x465mm(D)×174.8mm(H)] and designed to be mounted in a 19 inch rack.
• CPU and chipset designed for embedded devices
  • The adoption of embedded CPUs and chipsets makes it possible to ensure supply stability.
• Expandable up to 11 slots of PCI and PCI Express
  • The product has a variety of extended interface such as DVI-I x 1, 2.5GBASE-T x 1, 1000BASE-T x 1, USB 3.2 Gen1 (USB 3.0) x 6 (Max.), serial (RS-232C) x 2 (Max.), serial (RS-232C/RS-422A/RS-485) x 2 (Max.).
• Rich variety of interfaces for freely expandable peripherals
  • SR4000 series has a variety of extended interface such as DVI-I x 1, 1000BASE-T x 1, USB 3.0 Gen1 x 6, serial (RS-232C) x 2 (Max.)
• Adapted an industrial single board computer
  • An industrial single board computer is used to achieve high reliability as well as long-term product life.
