SRV-2UN100D_img1SRV-2UN100D_img1

SRV-2UN100D

  • Supports Dual Socket E (LGA 4677) 5th and 4th Gen Intel® Xeon® scalable processors (Codename “Sapphire Rapids”)
  • Memory Capacity with 16 +16 DIMM slots (2DPC)
  • Expansion Capabilities for Graphics and Network Connectivity
  • Additional Storage Support to Enhance System Performance
  • Dual Power Supply for Redundancy and Reliability
  • Remote Management

Data Sheet PDF

SKU: SRV-2UN100D Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

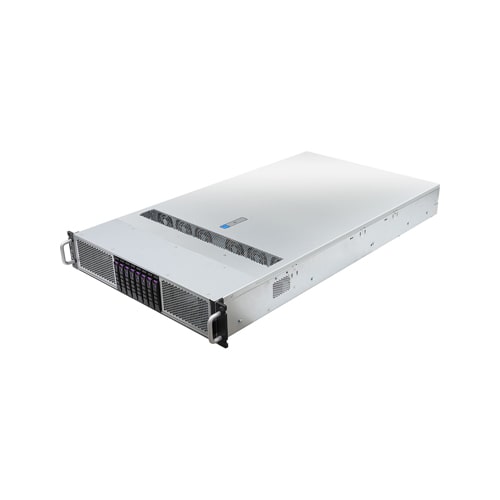

The SRV-2UN100D rackmount server, is designed for workload acceleration with extensive platform innovation, built-in acceleration, and TCO savings. This 2U rackmount server supports Dual Socket (LGA 4677) configurations with 5th and 4th Gen Intel® Xeon® scalable processors. The SRV-2UN100D server is the ideal solution for scalable performance and operational efficiency across diverse workloads in cloud, HPC, AI, deep learning, and networking. This flexible general-purpose server system can support up to 4x single-wide or 2x double-wide graphics cards, 10x hot-swappable drive bays, 16x memory slots (2DPC), and 2x 25GbE with an OCP NIC 3.0 slot option.

  • Supports Dual Socket E (LGA 4677) 5th and 4th Gen Intel® Xeon® scalable processors (Codename “Sapphire Rapids”)
    • Supports 5th and 4th Gen Intel® Xeon® scalable processors,Six types of CPU are lined up. Xeon Gold 6530 Cores 32T Base 2.1GHz Xeon Gold 5520+ Cores 28T Base 2.2GHz Xeon Silver 4516+ Cores 24T Base 2.2GHz Xeon Silver 4514Y Cores 16T Base 2GHz Xeon Silver 4510T Cores 12T Base 2.4GHz Xeon Silver 4509Y Cores 8T Base 2.6GHz
  • Memory Capacity with 16 +16 DIMM slots (2DPC)
    • 16+16 DIMM slot (2DPC)*1, supporting DDR5 RDIMM/RDIMM-3DS, and Intel’s 3rd Generation Optane DC Persistent Memory ‘Crow Pass’ modules for enhanced data processing and storage capabilities.*1 DPC – DIMM per channel.
  • Expansion Capabilities for Graphics and Network Connectivity

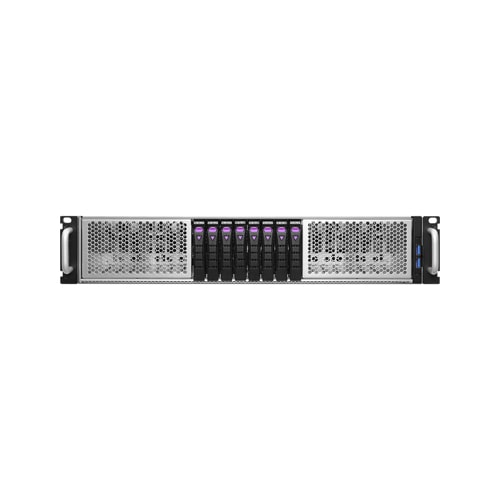

    • Features 4x FHFL single-slot PCIe5.0 x16 or 2x FHFL dual-slot PCIe5.0 x16 slots, along with 2x OCP NIC 3.0 (PCIe5.0 x16) for network expansion and high-speed connectivity. Equipped with 8x hot-swap 2.5″ NVMe (PCIe5.0) drive bays and 2x hot-swap 2.5″ SATA drive bays, ensuring rapid data access and flexibility.
  • Additional Storage Support to Enhance System Performance
    • Supports 2x M.2 (PCIe4.0 x4) slots for additional SSD storage, enhancing overall system performance.
  • Dual Power Supply for Redundancy and Reliability
    • Comes with a 1+1 2700W CRPS power supply for redundancy and reliability.
  • Remote Management
    • Includes IPMI for efficient remote server management and monitoring.

Specifications

Specifications
Form Factor
Type 2U
Software Support
Supported OS Windows Server 2022; Linux Red Hat Enterprise Server; Linux SUSE Enterprise Server; Linux Ubuntu
Virtualization software VMWare ESXi
Core System
CPU Generation (Development code) 5th Gen.Xeon(Emerald Rapids); 4th Gen.Xeon(Sapphire Rapids)
Processor Xeon Gold 6530; Xeon Gold 5520+; Xeon Silver 4516+; Xeon Silver 4514Y; Xeon Silver 4510T; Xeon Silver 4509Y
CPU socket LGA4677
RAS –
GPU –
AI Performance –
Security TCG TPM1(13-pin, SPI)
System Memory
Type DDR5-RDIMM 4800MHz
Slots 16+16
Capacity Up to 96GB per slot
Interface
Video 1x Mini DisplayPort
LAN 2x RJ45(COM)(1 dedcitaed IPMI)
Wireless –
Audio –
I/O 2x USB3.2 Gen1; 2x USB2.0
Memory card –
Internal Interface
Video 1x Analog RGB
LAN –
Audio 1x Monaural speaker
I/O
Power connector –
Expansion Slot
Expansion bus 2x Gen Z 4C (PCI Express 5.0/CXL1.1(x16)); 2x M.2 Key M (22110/2280); 4x PCI Express 5.0(x16) or 2x Dual-slot PCI Express 5.0(x16); 6x MCIO (PCI Express 5.0(x8))
Drive bay 2x Hot-swap 2.5-inch bay (NVMe); 2x Hot-swap 2.5-inch bay (SATA)　
Power
Input voltage 100 to 240VAC
Environment
Operating temperature 10 to 35°C (50 to 95°F )
Storage temperature -40 to 75°C (-40 to 167°F)
Standards & Certifications

Ordering Informations

Ordering Information
Model Description Certification
SRV-2UN100D SRV-2UN100D 2U Rackmount Server / Intel 5th Gen. Dual XEON Processors(Sapphire Rapids)

    –

    BTO Model

    This product is ordered by BTO (Build to Order) method. Please inform your sales contact of your BTO menu selections and request a quotation.

    CPU
    • Xeon Gold 6530 Cores 32T Base 2.1GHz
    • Xeon Gold 5520+ Cores 28T Base 2.2GHz
    • Xeon Silver 4516+ Cores 24T Base 2.2GHz
    • Xeon Silver 4514Y Cores 16T Base 2GHz
    • Xeon Silver 4510T Cores 12T Base 2.4GHz
    • Xeon Silver 4509Y Cores 8T Base 2.6GHz
    Memory
    • 8GB DDR5-4800 RDIMM
    • 16GB DDR5-4800 RDIMM
    • 32GB DDR5-4800 RDIMM
    • 64GB DDR5-4800 RDIMM
    • 96GB DDR5-4800 RDIMM
    OS
    • Window Server 2022 (64-bit)
    • Red Hat Enterprise Linux Server 8.4 (64-bit) / 8.5 (64-bit) / 9.1 (64bit)
    • SUSE Enterprise Linux Server 15 SP3 (64-bit)
    • Ubuntu 2.1.10 (64-bit) / 22.04 (64-bit)
