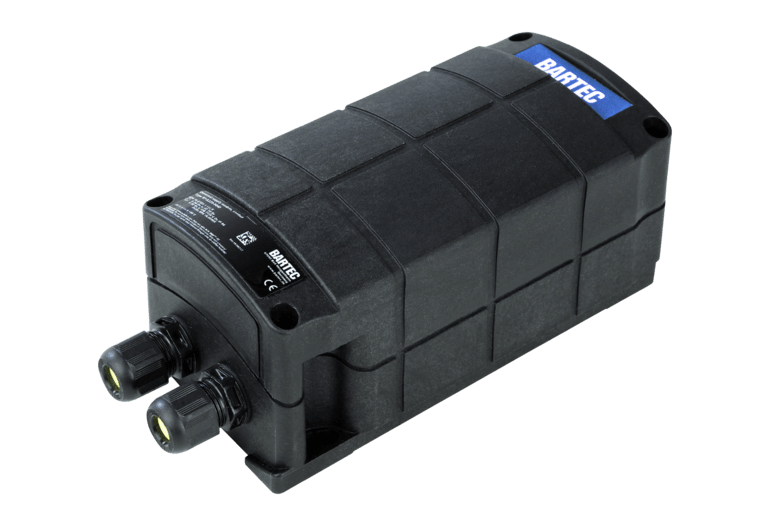

The supply modules are used for an intrinsically safe supply (barrier) of the hand-held scanners and contain a safety barrier (evaluation barrier) for the data lines in a potentially explosive atmosphere.The data lines can be connected from the hazardous area to non-Ex systems, e.g. PCs or PLCs, without an additional barrier/safety barrier.The data interface to be used can be set with a barcode. These adjustment possibilities make it easier for an existing old system to subsequently be converted and modified.
ATEX:Ex II 2(1)G Ex eb ib ma [ia Ga] IIC T4 GbEx II 2(1)D Ex tb ib [ia Da] IIIC T80 °C Db IP64
IECEx:
Ex eb ib ma [ia Ga] IIC T4 GbEx tb ib [ia Da] IIIC T80 °C Db IP64
Operating temperature-20°C to +50°C (-4°F to 122°F)Storage temperature-40°C to +70°C (-40°F to 148°F)
| Dimensions | 81 mm x 222 mm x 88 mm (3.2 inch x 8.7 inch x 3.5 inch) |
|---|---|
| Weight | approx. 1040 g (approx. 2.29 lb) |
| IP Rating (IEC 60529) | IP 65 |
| Connection | One hand-held scanner can be connected to the Supply module Ex i. |
