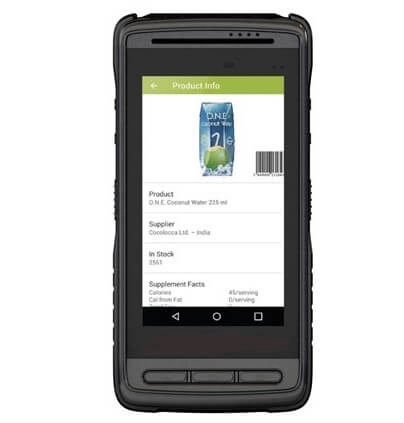

TN500A1-EX

The TN500A1-Ex is an Android LTE enterprise ATEX Zone 2 Certified smartphone designed for today’s demanding business environment. The combination of full functionality and style, it is the ideal device to work efficiently and enhance productivity in any business environment.

With its support of Global LTE it allows fast data connections and efficient working.

With its integrated 1D/2D imaging barcode scanner, it is perfect for all logistics, warehousing, asset management and inspection applications in Business, Industrial and ATEX environments.

As easy to use as a Smartphone with the addition of Automatic Data Capture, this is a rugged, durable device that will withstand intensive use and rough conditions and complies with IP65 rating and ATEX Zone 2 requirements.

With its large display, and its high capacity exchangeable battery, this is the ultimate device that will take your business further.

 Specifications

OS & Processor

• Android™ 8.1 Oreo or 6.0 Marshmallow
• Qualcomm® MSM8909 quad-core 1.1GHz

Display

5″ HD Screen (1280*720), Gorilla Glass 3

Memory/Internal Storage

2GB LPDDR3 SDRAM+16GB eMMC flash

Camera

• 8MP Rear Auto Focus Camera
• F/NO 2.0
• 10cm Macro Capture Support
• 1080P Image Decoding

Wireless

• WLAN 802.11 a/b/g/n @5GHz & 2.4GHz
• Bluetooth 4.0
• NFC

Sensors

• 3-axis accelerometer
• Proximity sensor
• Ambient light sensor
• E-Compass
• Gyroscope
• GPS

Audio

• 1 Speaker
• 2 Microphones
• 1 Receiver

WAN

• LTE B1(2100), B2(1900), B3(1800), B4(1700) B5(850), B7(2600), B8(900), B17(700), B20(800), B26(850) B28(700) B38(2600), B39(1900), B40(2300), B41(2500)
• UMTS: B1(2100), B2(1900), B3(1800), B4(1700), B5(850), B8(900)
• CDMA: BCO BC1 BC6
• TD-SCDMA: B34(2100), B39(1900)
• GSM Quad Band 850/900/1800/1900 MHz

I/O Interfaces

• 1D/2D barcode, OCR
• 1 Micro USB connector OTG
• 1 Micro SD Card Slot
• 1 SIM Card Slot
• 4 pogo pins for charging on docking station

Battery

• 3.7V 4,400 mAHr Battery (exchangeable)

Dimensions

• L 177.4 x W 88.5 x T 22mm
• Weight: 300g (with battery)

Operating Environment

• Operating Temperature – 0°C to + 45°C in charging mode -20°C to + 60°C battery in discharging mode
• Storage Temperature –  -20°C to + 60°C
• Humidity – 5 to 85% non-condensing
• Drop Protection – 1.2M on plywood, 6 drops
• ESD – air ±15KV, contact ±10KV
• Ingress Protection Rating – IP65

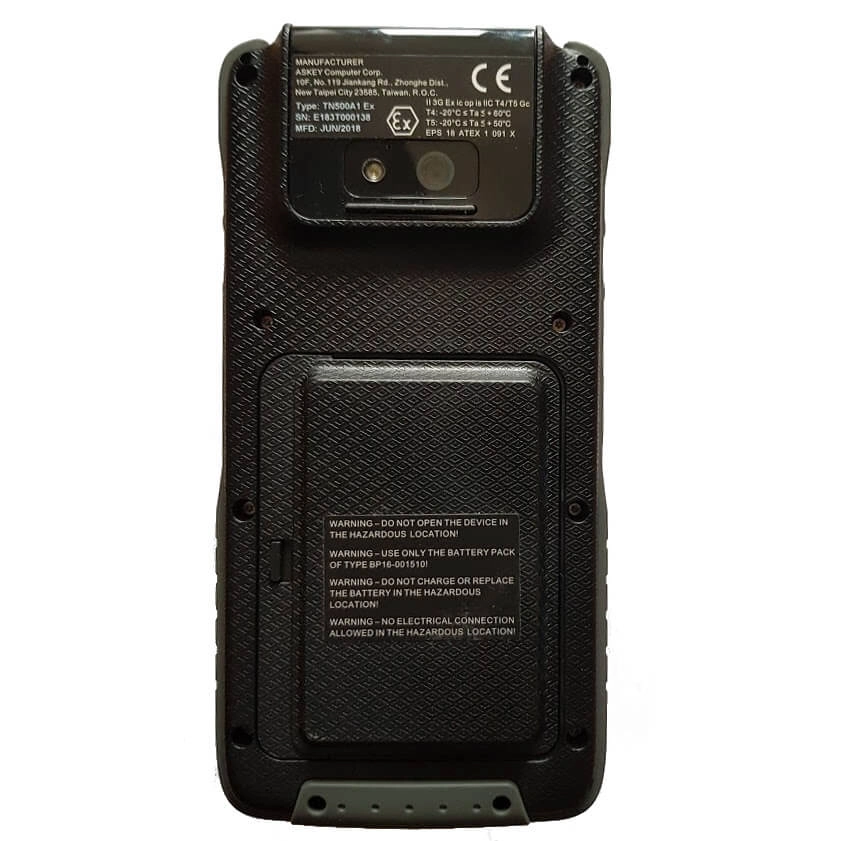

Certifications

• CE, CB, NCC, UN38.3
• II 3G Ex ic op is IIC T4/T5 Gc
• EPS 18 ATEX 1 091 X
