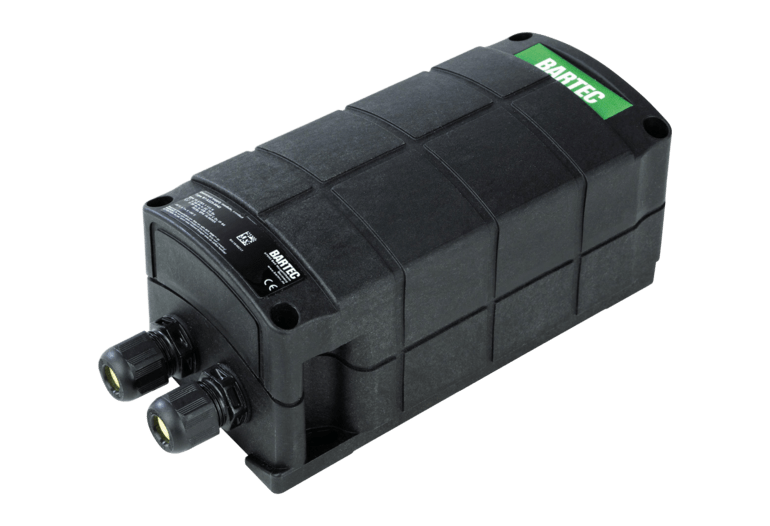

The supply modules are used for an intrinsically safe supply (barrier) of the hand-held scanners and contain a safety barrier (evaluation barrier) for the data lines in a potentially explosive atmosphere.
ATEX:
BCS3608ex-NI
Ex II 3G Ex ec [ic] IIC T4 GcEx II 3G Ex tc [ic] IIIC T80°C Dc IP 64
BCS3678ex-NI
Ex II 3G Ex ec IIC T4 GcEx II 3D Ex tc IIIC T80°C Dc IP 64
IECEx:
BCS3608ex-NI:
Ex ec [ic] IIC T4 GcEx tc [ic] IIIC T80°C Dc IP 64
BCS3678ex-NI:
Ex ec IIC T4 GcEx tc IIIC T80°C Dc IP 64
Operating temperature-20°C to +50°C (-4°F to 122°F)Storage temperature-40°C to +70°C (-40°F to 148°F)
| Dimensions | 81 mm x 222 mm x 88 mm (3.2 inch x 8.7 inch x 3.5 inch) |
|---|---|
| Weight | approx. 1070 g (approx. 2.36 lb) |
| IP Rating (IEC 60529) | IP 65 |
| Connection | One hand-held scanner can be connected to the Universal supply module. |
