VPC-720

Overview / Features

This product is a high-performance embedded-type personal computer equipped with the 13th-generation Intel® Core™ processor. It has extension interfaces such as HDMI, DisplayPort, 2.5GBASE-T, 1.0GBASE-T, USB 3.2 Gen1 (USB 3.0), serial and Audio. These Units are ideal for a wide range of embedded applications, such as control devices and information terminals based on general-purpose PC OSes. Embedded-type chipset and CPU have been adopted. The use of readily available parts ensures the ease of the use of the product.

• Supports Intel® Core™ Processor Series Raptor Lake
  • Equipped with a power-saving, high-performance 13th generation Core processor, it achieves high calculation and drawing capabilities while saving power. The CPU is an embedded type, enabling a stable supply.
• Compact size that can be installed in a small space
  • This is a compact computer that can be installed in a small area, measuring 264 (W) x 264 (D) x 112 (H) mm.

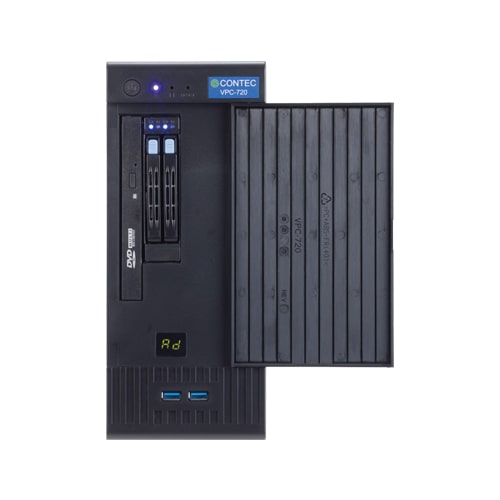

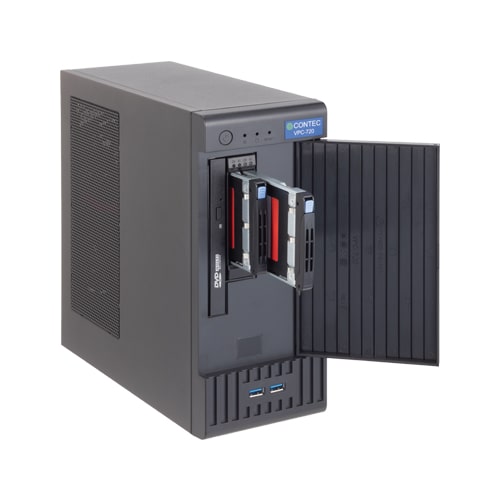

• Adopts removable storage structure
  • It uses front-accessible 2.5-inch SATA storage and also supports RAID functions such as mirroring.
• Supports mirroring (RAID1)
  • Mirroring can be created, making the system redundant. [Hardware RAID].
    By selecting the optional mirror card, it is possible to create hardware mirroring that supports hot swapping.
• Abundant interfaces for freely expanding peripheral devices

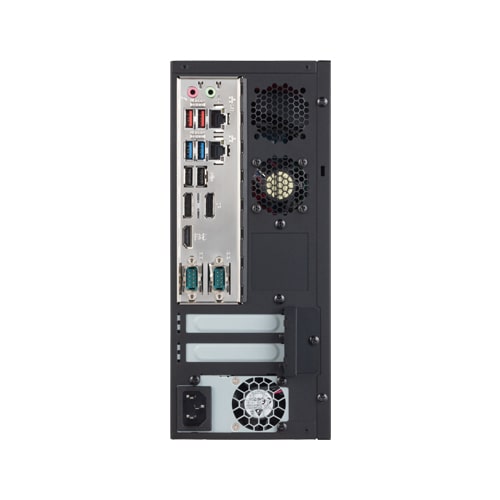

  • It has a variety of extended interface such as PCI Express (×16) x 1slot, HDMI x 1, DisplayPort x 2, 2.5GBASE-T x 1, 1.0GBASE-T x 1, USB 3.2 Gen1 (USB 3.0) x 6, USB 2.0 x 2, serial (RS-232C/RS-422A/RS-485) x 2, Audio. Selectable configuration lets you choose from 2.5GBASE-T × 1 or serial RS-232C × 2 interfaces.

• Compatible with Trellix white listing anti-virus software
  • Some OS pre-installed types have been also installed a Trellix (Former McAfee) white listing software. The whitelist type is a security countermeasure that registers in advance the list of programs and codes that are permitted to execute and blocks execution of unregistered programs and codes. It prevents malicious program execution and protects embedded PC from zero day malware attacks. It is effective for attacks aimed at vulnerabilities before (zero day) when countermeasures and modification programs are offered.
