VPC-9000-G

Overview / Features

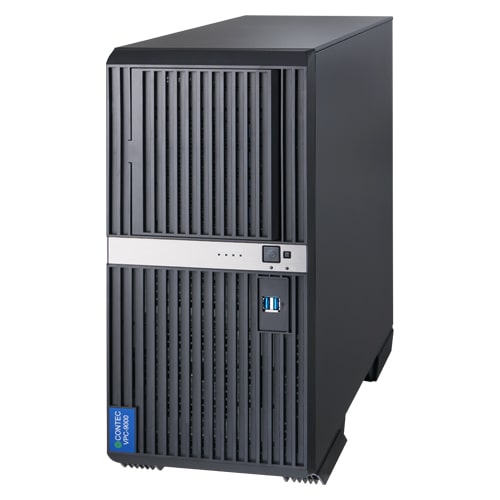

VPC-9000 is designed for server grade high performance industrial computer with dual Intel® 2nd generation Xeon® Processors. It is equipped with Dual CPU up to 20 cores, with 2 slots PCIe x 16, and 3 slots PCIe x8. It’s full tower type factory automation computer with high reliability, long life components, availability and maintainability based on 24-hours operation.
Intel® Xeon® processors with error-correcting code (ECC) memory help safeguard your important data by automatically finding and fixing soft memory errors. The reasons why ECC memory be widely used in serversystem is not because its performance but error-correction capability which keep server stable.
The product offers up to 4 hot-swappable hardware RAID configurations and a choice of 1600W Redundant power supply units (CRPS) for high-end GPU boards. Furthermore, the advanced edge computing environment for Image processing, Machine vision, AI / Deep Learning and more is provided.

Usage Examples

Machine vision

Vision processing

AI / Deep Learning

Automatic Optical Inspection

• Compatible with Intel® Cascade Lake-SP platform

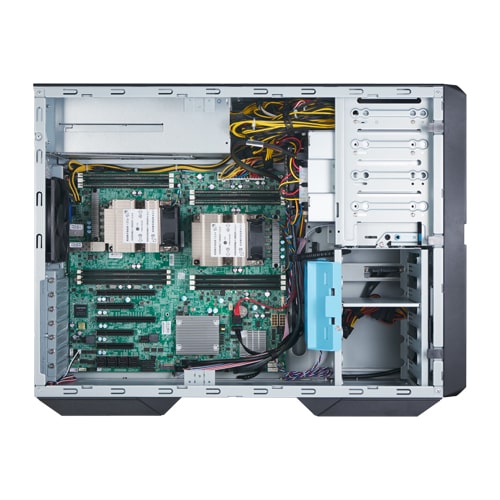

  • This product is equipped with the 2nd generation Intel® Xeon scalable processor by dual.LGA-3647 sockets, two types of CPU are lined up.Dual Intel® Xeon® Gold 6230 CPU (27.5MB Cache, up to 3.90 GHz / 20 Cores)Dual Intel® Xeon® Silver 4210 (13.75MB Cache, up to 3.20 GHz / 10 Cores)
• HPC and GPU computing support
  • A choice of 1600W 80 Plus® SILVER-certified power supply units that are compatible with high-end GPUboards is ideal solution for the high-performance computing (HPC) environment that can be used for Image processing, Machine vision and AI / Deep Learning.
• Adopt Removable Storage

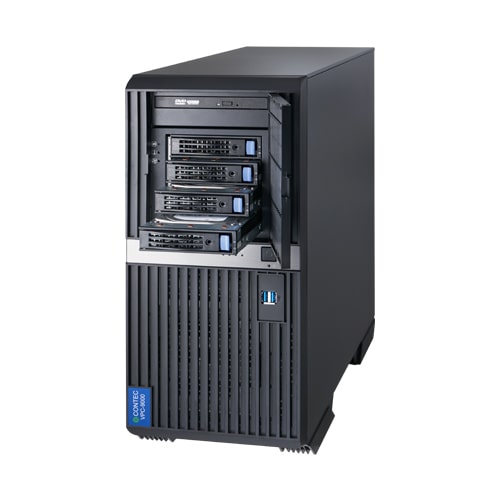

  • The product adopts front accessible 4 x 2.5” or 3.5” SATA storages and support RAID function such as mirroring.
• BMC function
  • ASPEED AST2500, Advanced PCIe Graphics & Remote Management Processor that is onboard support Baseboard Management Controller provides customers with the best performance server management solution for system management and IPMI control.
• Support Windows 10 IoT Enterprise 2019 LTSC and Windows Server IoT 2019
  • The LTSC (Long Term Servicing Channel) version of Windows is installed to discourage unnecessary restartsor unwanted feature updates for operational applications. The product has a lockdown function that is usefulfor the developing secure dedicated terminals. A user can select a language from English, Chinese, Japanese, or Korean in Windows 10 IoT Enterprise 2019 LTSC 64-bit, and can decide to use Windows Server IoT 2019*, which is suitable for edge servers that require server-class multiple processing and network performance. *Coming soon.
