Winmate M101AD-EX ATEX Rugged Tablet

The M101 series is designed to be invincible, yet light enough to carry around. The M101AD-EX rugged tablet is the ATEX certified model in the series, with incredible performance, long battery life and durability in harshest conditions.

Data Sheet

Category:
Description
Additional Features
KEY FEATURES
  • Intel® Core™ i5-1235U Alder Lake processor
  • 10.1” 1920 x 1200 IPS LED Panel with direct optical bonding
  • Sunlight readable with antiglare solution
  • Allows cross-zone operations in hazardous and explosive environments
  • Ex Certificate: Class I Division 2 (CID2), ATEX/IECEx Zone 2
  • USB Type C port support PD 3.0 and ALT mode

DISPLAY

Size 10.1″
Brightness 800
Resolution 1920×1200
Contrast Ratio 800:1
Touch Mode Touch Mode
Touch Projected Capacitive Multi Touch
Bonding Optical Bonding for Sunlight Viewability
Viewability Anti­Glare touch treatment

SYSTEM



Processor Intel Core i5-7200U Kaby Lake 2.5GHz (turbo 3.1GHz)
Storage 256GB SSD
Additional storage available with micro SDXC card slot
512GB SSD (Optional)
Memory 8GB DDR4 SDRAM
Security Trusted Platform Module (TPM) 2.0
Kensington Lock
Operating System Windows 10 IoT Enterprise (64 bit)
BT Bluetooth Support
GNSS GPS, GLONASS
WLAN 802.11 a/b/g/n/ac
WWAN 4G LTE (Optional)
Sensors Light sensor/ g­sensor / Gyro



CAMERAS

Front 2MP Camera
Rear 8MP Rear Camera with auto­focus and LED light

MECHANICAL

Dimensions 271 x 197 x 21 mm
Net Weight (kg) 1.25 Kg
Cooling Fan

IO PORTS

USB Ports

1 x USB 3.0 (Type A), 1 x USB 3.0 (Type-C support Power Delivery 20V In and ALT mode)

SD Card Slot 1 x Micro SDXC slot
SIM Card Slot 1 x Nano SIM card slot
LAN 1 x RJ45-10/100/1000 GigaLAN port
Audio 1 x Audio combo 3.5mm audio combo jack (Mic in or Line Out)
Dual Mic Built­ in Microphone
Single Speaker
Docking Connector 1 x 19­pin docking connector
Indicator 4x LED Indicator for Power, Battery, HDD, RF status

ENVIRONMENT

Operating Humidity 10% to 90% RH, non­condensing
Operating Temperature 10°C to 50°C
Storage Temperature ­30°C to 70°C (­22°F to 158°F)
Shock MIL­STD­810G Method 516.8 Procedure I
Vibration MIL­STD­810G Method 514.8 Procedure I
Drop MIL­STD­810G Method 516.8, 4 ft
IP rating IP65 certified, dustproof and waterproof
Certification CE, FCC
Hazardous Location Safety:
IECEx Class I, Zone 2, Ex ic IIC T4 Gc
ATEX Class I, Zone 2, II 3G Ex ic IIC T4 Gc
Class I, Division 2, Groups A, B, C, D, T4

CONTROL

Button 1 x Power, 1 x Home
2 x volume key
2 x Programmable function Keys

POWER

Battery Hot-swappable 11.55V, typ. 4558 mAh Li-Polymer Battery (3S2P)
Power Rating 12-19VDC
Battery Operating Time Standard. Battery: 8 hours
Adapter 100­-240V, 50­-60Hz / 19V DC

ACCESSORIES

Standard
Optional
Adapter and Power Cord
Capacitive Stylus
Standard Battery
Desk Dock (Optional)
Vehicle Dock (without VGA output) (Optional)
Vehicle Cradle (Optional)
Vehicle Charger (Optional)
High Capacity Battery (Optional)
Battery Charger (Optional)
Hand Strap (Optional)
Shoulder Strap (Optional)
Carry Bag (Optional)

Barcode Scanner

Barcode Scanner

1D/2D Barcode reader (optional)

Hardware scan engine

Or

mobXscan software scanner using camera

Additional Features

Certified for Safe Operations in Hazardous Zones

The M101AD-EX Rugged Tablet is designed to function safely in hazardous and explosive environments. It holds the Ex Certificate for Class I Division 2 (CID2) and ATEX/IECEx Zone 2.This certification ensures the tablet can be used confidently across different hazardous zones.

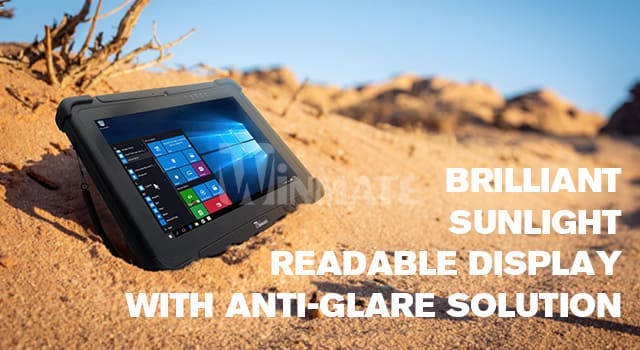

Outstanding Sunlight Visibility with Anti-Glare Technology

The M101AD-EX Rugged Tablet offers exceptional visibility both indoors and outdoors. Its 10.1″ IPS LED panel, paired with a 1920 x 1200 resolution, delivers sharp and clear images. With optical bonding and an anti-glare
touch treatment, you get a superior viewing experience in any lighting condition.

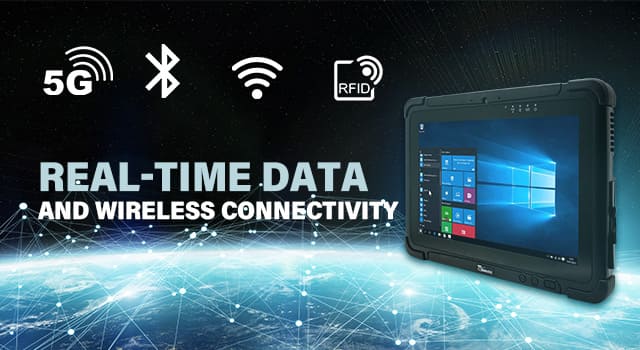

Enhance Efficiency with Real-Time Data Streaming
The M101AD-EX Rugged Tablet delivers real-time data streaming for immediate feedback to your management system. Combined with an Intel processor, optional Barcode and RFID readers, and comprehensive connectivity
options like BT, WIFI, LTE, 5G, and GigaLAN, it ensures your operations run smoothly and efficiently.

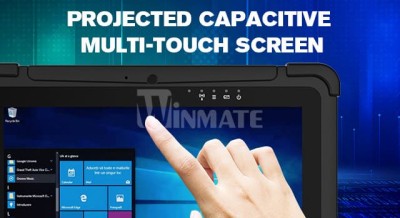

Advanced Multi-Touch Experience

The M101AD-EX Rugged Tablet delivers a smooth and responsive touch experience with its Projected Capacitive (P-CAP) Multi-Touch screen. It’s designed to support various touch modes, including rain, glove, and stylus
modes. This versatility ensures reliable performance in different environments and conditions.

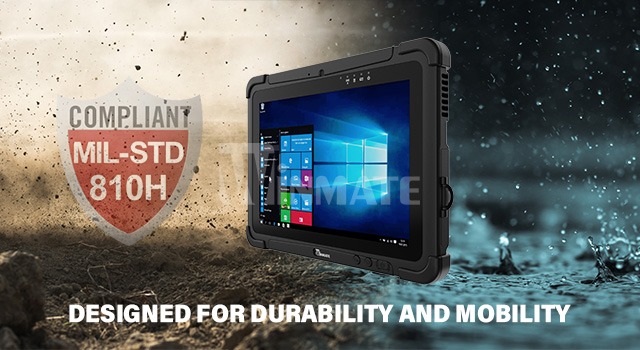

Built Tough for Industrial Mobility

The M101AD-EX Rugged Tablet is engineered to withstand extreme temperatures, drops, shocks, and vibrations. It’s designed for industrial use and meets the MIL-STD-810H standards, making it resilient in challenging environments.
