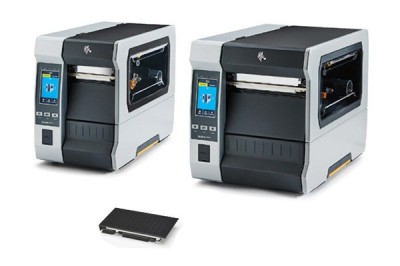

To stay ahead in today’s highly competitive manufacturing or transportation and logistics industries, you need technology solutions that will grow with your business. ZT600 Series printers combine industrial durability and user-friendly features with future-proof adaptability–including a factory–or field-installable RFID encoder–to meet your evolving needs for years to come. Featuring Zebra DNA™ for Printers, a suite of applications, utilities and developer tools–all powered by Link-OS™–these RFID printers are easy to integrate, manage and maintain from any location around the globe. Optimized to accurately and efficiently print and encode labels and tags, the ZT600 Series RFID printers give greater control, and insight, which can lead to significant advantages in a highly competitive environment.
At Zebra, we believe printers should be as intuitive, user-friendly and integrated as the smartphones and other devices that keep us connected outside of work. With intuitive Zebra DNA software, powered by Link-OS, they are. These powerful tools give you unprecedented, real-time visibility and control of your printing systems, on-site or remotely, with cloud-accessible applications that simplify everything from setup to management to troubleshooting.
It only takes five minutes to upgrade the ZT610 and ZT620 to RFID encoding in the field. Once RFID-enabled, these printers are engineered to accurately and efficiently print and encode labels for today’s most advanced item-level tracking applications.
Adaptive encoding enables media flexibility and simple RFID calibration, eliminating complex placement guides. An intuitive menu further reduces setup time. And Zebra’s RFID technology is certified on six continents, providing operational visibility and business insight across complex, multinational supply chains.
Built to deliver outstanding print quality under the most challenging industrial conditions, ZT600 Series printers virtually eliminate operational downtime due to printer failure. Their durable, all-metal designs hold up against extreme temperatures, dust, debris, moisture and worse. Guided instructions and feedback eliminate common errors and reduce manual adjustments for highly consistent printing. And high-quality print mechanisms and internal components deliver superior print quality and speed across the widest range of applications. A field-installable, full-width, guillotine-style cutter with catch tray is ideal for apparel tag applications.
Tags are spaced incredibly close together, with a distance (pitch) of 0.6 in./16 mm or narrower on most RFID inlays–smaller than what other printer/encoders can accommodate. By spacing inlays closer, label converters use less material, which reduces your cost per label, requires fewer media roll changes and gives you faster printer/encoder throughput.
System setup, integration and updates are a snap with virtually every modern connectivity option. Standard connectivity includes serial, USB, Ethernet, USB host and Bluetooth® with optional parallel, 802.11ax, 802.11ac, applicator port, IPv6 and BTLE capabilities. You also get two open media slots for non-standard connectivity options, design failover connections and provisioning for future protocols
Every detail of the ZT600 Series was designed to put time back in your day. Immediately see status at a glance on the 4.3 in. full-color touch display. You can also quickly navigate printer settings with the user friendly icon menu system to change languages, printer settings, connectivity options and more–right from the display. Color-illuminated media and ribbon paths streamline routine maintenance. Adjustable media width and pressure toggles easily accommodate more applications. And onboard sensors, diagnostics and help resources empower you to manage issues without having to call in support.
RFID
|
Standard Features
|
Physical Characteristics
| Dimensions (closed) | ZT610: 19.88 in. L x 10.56 in. W x 15.58 in. H 505 mm L x 268.2 mm W x 395.68 mm H ZT620: 19.88 in. L x 13.44 in. W x 15.58 in. H 505 mm L x 341.45 mm W x 395.68 mm H |
| Weight | ZT610: 50 lbs/22.7 kg ZT620: 57.4 lbs/26 kg |
Printer Specifications
| Operating System | Link-OS |
| Resolution | 203 dpi/8 dots per mm 300 dpi/12 dots per mm (optional) 600 dpi/24 dots per mm (optional for ZT610 only) |
| Memory | 1 GB RAM memory 2 GB on-board linear Flash memory |
| Maximum Print Width |
ZT610: 4.09 in./104 mm ZT620: 6.6 in./168 mm |
| Maximum Print Speed |
ZT610: 14 ips/356 mm per second ZT620: 12 ips/305 mm per second |
| Media Sensors | Dual media sensors: transmissive and reflective |
| Maximum Continuous Print Length |
ZT610: 203 dpi: 150 in./3810 mm 300 dpi: 130 in./3302 mm 600 dpi: 30 in./762 mm ZT620: 203 dpi: 150 in./3810 mm 300 dpi: 100 in./2540 mm |
Media Characteristics
| Media Width | ZT610: • 1.00 in./25.4 mm to 4.5 in./114 mm tear/cutter • 1.00 in./25.4 mm to 4.25 in./108 mm peel/rewind ZT620: • 2.00 in./51 mm to 7.0 in./178 mm tear/cutter • 2.00 in./51 mm to 6.75 in./171 mm peel/rewind |
| Maximum Media Roll Size |
8.0 in./203 mm O.D. on a 3 in./76 mm I.D. core |
| Thickness | 0.0023 in./0.058 mm to 0.010 in./0.25 mm |
| Media Types | Continuous, die-cut, notch, black-mark |
Ribbon Characteristics
| Standard Length | 1476 ft./450 m |
| Width | ZT610: 2.00 in./51 mm to 4.33 in./110 mm ZT620: 2.00 in./51 mm to 6.85 in./174 mm |
| Core | 1.0 in./25.4 mm I.D. |
Operating Characteristics
| Operating Temperatures | Thermal transfer: 40 °F to 104 °F/5 °C to 40 °C Direct thermal: 32 °F to 104 °F/0 °C to 40 °C |
| Operating Humidity | 20% to 85% non-condensing |
| Storage/Transportation Temperature | -22 °F to 140 °F/-30 °C to 60 °C |
| Storage Humidity | 20% to 85% non-condensing |
| Electrical | Auto-detectable (PFC Compliant) 90-265 VAC, 47-63Hz, rated at 250 Watts ENERGY STAR qualified |
| Agency Approvals | IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3 cTUVus, CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark (Arg), CCC, CU, BSMI, KCC, SABS, IN-Metro |
Zebra DNA™ for Printers
|
Zebra DNA is a suite of software tools that enable Zebra printers to deliver a full lifecycle of exceptional experiences for every kind of user through built-in applications, utilities and tools to get your printer up and running quickly and securely. For more information, please visit |
Programming Languages
| ZBI 2.0™—Optional powerful programming language that lets printers run stand-alone applications, connect to peripherals and much more ZPL and ZPL II™—Zebra Programming Language provides sophisticated label formatting and printer control, and is compatible with all Zebra printers XML-enabled Printing—allows XML communications for barcode label printing |
Barcode Symbologies
| Linear Barcodes: Code 11, Code 39, Code 93, Code 128 with subsets A/B/C and UCC Case Codes, ISBT-128, UPC-A, UPC-E, EAN-8, EAN-13, UPC and EAN 2- or 5-digit extensions, Plessey, Postnet, Standard 2-of-5, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Codabar, Planet Code 2D Barcodes: Codablock, PDF417, Code 49, DataMatrix, MaxiCode, QR Code, TLC 39, MicroPDF, RSS-14 (and composite), Aztec |
Fonts and Graphics
| 16 resident expandable ZPL II bitmap and two resident scalable ZPL fonts Asian and other international scalable and smooth bitmapped fonts Unicode™: For multi-language printing Downloadable objects include graphics, scalable and bitmap fonts, label templates and formats IBM Code Page 850 international character sets are available in the fonts A, B, C, D, E, F, G and 0 through software control Code Page 1250, 1252, 1253, 1254, 1255 Support with font 0 32 MB user available DRAM 512 MB user available on-board Flash |
Options and Accessories
| Connectivity | Two open communication slots to add internal cards for: • Dual band 802.11ax Wi-Fi 6 (MIMO) and Bluetooth 5.3 • Dual band 802.11ac Wi-Fi and Bluetooth 4.2 • Parallel • Ethernet • Applicator interface IPv6 option is available as external dongle attached to a parallel port |
| Media Handling | Rewind: Internally rewinds a full roll of printed labels on 3 in., core, or peels and rewinds liner Cutter: Front-mount guillotine cutter and catch tray 1 in. I.D. Core media supply hanger Ink-side in ribbon supply spindle |
| Keyboard Display Unit | ZKDU™ keyboard display units for stand-alone printing applications |
Recommended Services
| Zebra OneCare™ maintenance plans provide peak performance and device uptime while protecting your critical operations and your printers with defined service levels. For more information go to www.zebra.com/zebraonecare |
|
| Zebra OneCare Select | Comprehensive Coverage, including printheads, normal wear and accidental breakage Priority access 24×7 live technical support and software updates Advance Replacement and Express Shipping (Next Day Device Replacement) Standard Commissioning Online Return Material Authorization (RMA) support |
| Zebra OneCare Essential | Comprehensive Coverage, including printheads, normal wear and accidental breakage Priority access 8×5 live technical support and software updates Three-day depot repair turnaround time plus free return ground shipping Online Return Material Authorization (RMA) support |
| Note: Service availability may vary by region. |
