CPS-COM-1PC

Overview / Features

This product is an extension COM port that performs serial communication with external device(s) and operates along with the stack type controller of our CONPROSYS series. CPS-COM-1PC has 1channel of RS-232C communication port.

• RS-232C serial communication, supporting 921,600bps to the maximum
  • CPS-COM-1PC has 1channel of RS-232C-compliant serial port. Baud rates from 2 to 921,600bps can be set per each channel.
• Compact Design
  • Compact design, 25.2 (W) x 94.7(D) x 124.8(H) mm, features flexibility in installation.
• Adaptable to a wide range of temperature between -20 and +60°C
  • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.

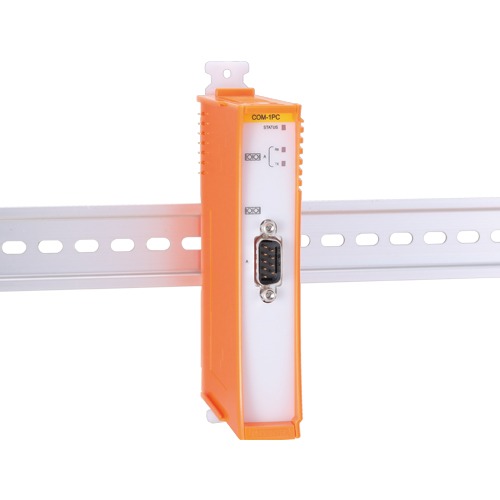

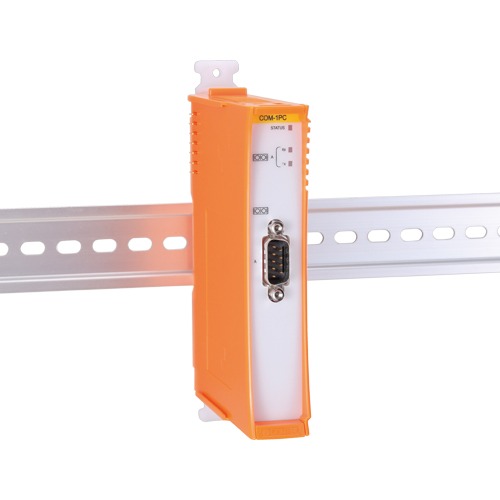

• Installation easy with DIN rail
  • As the product is not only mounted on DIN rail, but also removable along the slide rails, replacing is simple and easy.
• Equipped with the LED for an operation check
  • The product has the LED for an operation check, which helps you visually confirm the communication status of RS-232C interface.
• No electrolytic capacitor
  • Without an electrolytic capacitor, which has a limited life, we are creating the product with a longer life.
