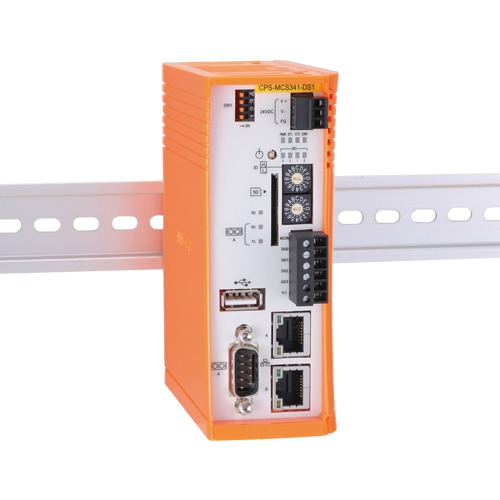

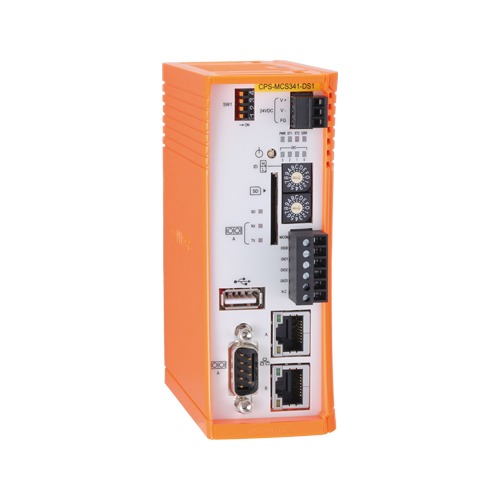

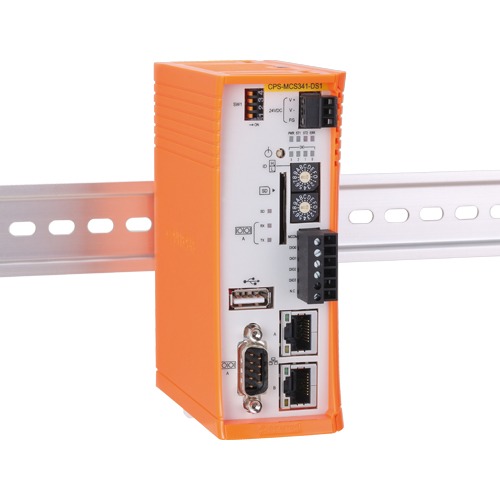

CPS-MCS341-DS1-111

  • Measurement and upload
  • Simple Router Function
  • Web Monitoring and Web Task Script
  • Opto-coupler Isolation Input and semiconductor relay output
  • Max. 115,200bps RS-232C Serial Communication
  • Compact Design

Data Sheet PDF

SKU: CPS-MCS341-DS1-111 Category: Tag: Brand:
Description
Specifications
Ordering Informations
Overview / Features

The product is a M2M controllers with isolated digital input and output (Input : 4ch, Output : 4ch), RS-232C, LAN interface, and Ethernet Hub. As you desire, add the configurable type modules of our CONPROSYS series. All the processes from development to operation can be performed on a web browser. The functions such as Web monitoring of I/O information, alarm processing by I/O information, task divergence enable you to create a Cloud System at low cost and in a short time.

  • Measurement and upload
    • This product measures data with an external sensor and uploads them to the Cloud server.
  • Simple Router Function
    • Equipped with a simple routing function.It is possible to use a DHCP server, static routing, port forwarding and IP filtering.
  • Web Monitoring and Web Task Script
    • The product contains a Web server (Java applet). Even with your PC located remotely, you can monitor and update I/O information through a Web browser. On the monitoring screen, you can freely lay out the standard GUI parts (graphic, slider, button, etc.). All operations including monitoring layout, making relations with I/O information, can be achieved via the Web browser.By combining icons such as arithmetic operations, conditional branching, data outputting, you can set up the executions or its processes like drawing them in the flowchart. All operations can be completed on the Web browser.
  • Opto-coupler Isolation Input and semiconductor relay output
    • The product has the switchable four channels of opto-coupler isolation input (compatible with current sink output) and semiconductor relay output. It is usable for external switch inputting or LED lighting.
  • Max. 115,200bps RS-232C Serial Communication
    • The Product has one RS-232C-standard serial port. Baud rates from 300 to 115,200 bps can be set.
  • Compact Design
    • Compact design, 44.7 (W) ×94.7 (D) ×124.8 (H) mm, features flexibility in installation.

See more details of M2M/IoT Solution CONPROSYS Series

Specifications

Specifications
Controller Unit
Series CONPROSYS M2M Controller
Communication Ports Ethernet (LAN)
Programming CONPROSYS VTC
Stack bus CONPROSYS stack
Function Data transfer (https); Modbus/TCP slave
Digital I/O
Input Channels 4-ch
Output Channels 4-ch *Share with inputs
Bi-directional I/O Channels –
Response Time (Input) 200μsec (max.)
Response Time (Output) 2msec (max.)
Operating Voltage (Input) –
Operating Voltage (Output) –
Input Circuit Opto-isolated input (for sink current output)
Output Circuit Semiconductor relay output
Built-in Power Supply 12VDC
Analog I/O
Input Channels –
Input Range –
ADC Resolution –
Sampling Rate –
Input Buffer Memory –
Output Channels –
Output Range –
DAC Resolution –
Update rate –
Output Buffer Memory –
Counter
Number of Channels –
Counting System –
Response speed –
Serial Comm.
Number of Channels 1x RS-232C [ASYNC]
Transmission Speed 300 ~ 115,200bps
Isolation Property –
Transmission Method –

Ordering Informations

Ordering Information
Model Description Certification
CPS-MCS341-DS1-111 CONPROSYS M2M Controller – Configurable Type / 1x LAN + HUB / 4x DI / 4x DO / 1x RS-232C
  • CE marking
  • FCC compliant
  • UL
  • VCCI
Options
Sensor Input
Item Item Name
CPI-SSI-4C Thermocouple Input Raspberry Pi Expansion Card 4ch
CPS-SSI-4C Thermocouple Module CONPROSYS I/O Module / 4ch
CPS-SSI-4P Pt100 Temperature Sensor Input CONPROSYS I/O Module / 4ch(0.01°C 5s/s) / Bus Isolation
Analog I/O
Item Item Name
CPS-AI-1608ALI Analog Input CONPROSYS I/O Module / 8ch(16bit 50ks/s) / Bus Isolation
CPS-AI-1608LI Analog Input CONPROSYS I/O Module / 8ch(16bit 100ks/s) / Bus Isolation
CPS-AO-1604LI Analog Output CONPROSYS I/O Module / 4ch(16bit 50ks/s) / Bus Isolation
CPS-AO-1604VLI Analog Output CONPROSYS I/O Module / 4ch(16bit 100ks/s) / Bus Isolation
Digital I/O
Item Item Name
CPS-DI-16L Digital input CONPROSYS I/O module 16ch (isolated 12 – 24VDC)
CPS-DI-16RL Digital input CONPROSYS I/O module 16ch (negative-common isolated 12 – 24VDC)
CPS-DIO-0808BL Digital I/O CONPROSYS I/O module 8ch/8ch (12VDC on-board power supply isolated 12 – 24VDC)
CPS-DIO-0808L Digital I/O CONPROSYS I/O module 8ch/8ch (isolated 12 – 24VDC)
CPS-DIO-0808RL Digital I/O CONPROSYS I/O module 8ch/8ch (negative-common isolated 12 – 24VDC)
CPS-DO-16L Digital output CONPROSYS I/O module 16ch (isolated 12 – 24VDC)
CPS-DO-16RL Digital output CONPROSYS I/O module 16ch (negative-common isolated 12 – 24VDC)
CPS-RRY-4PCC Relay output CONPROSYS I/O module 4ch ( – 240VAC / – 24VDC)
Counter
Item Item Name
CPS-CNT-3202I Counter CONPROSYS I/O module 2ch (32bit Up/Down count 500kHz) / Incremental encoder interface / Isolated
Serial comm.
Item Item Name
CPS-COM-1PC Serial Communication CONPROSYS I/O Module RS-232C 1ch / Isolation and Surge Protection
CPS-COM-1PD Serial Communication CONPROSYS I/O Module RS-422A/485 1ch / Isolation and Surge Protection
CPS-COM-1QL LoRa Stack Module
CPS-COM-2PC Serial Communication CONPROSYS I/O Module RS-232C 2ch / Isolation and Surge Protection
CPS-COM-2PD Serial Communication CONPROSYS I/O Module RS-422A/485 2ch / Isolation and Surge Protection
Measuring instrument
Item Item Name
CPS-MM-LC Insulation Deterioration Monitoring CONPROSYS I/O Module / 1ch (Earth leakage measurement) / Bus Isolation
SCADA Software
Item Item Name
CONPROSYS HMI System (CHS) Web HMI / SCADA Software
Cable
Item Item Name
CPS-CAB-S01 Cables to connect the FANUC CNC and the CONPROSYS series CNC communication support controller(s).
CPS-CAB-S02 Cable to connect the MITSUBISHI CNC and the CONPROSYS series CNC communication support controller.
Power Supply / AC Adapter
Item Item Name
CPS-PWD-30AW24-01 CONPROSYS 24VDC 1.3A(Max.) Power Supply Unit
CPS-PWD-90AW24-01 CONPROSYS 24VDC 3.8A(Max.) Power Supply Unit
Storage
Item Item Name
SD-4GB-A 4GB SD Card
