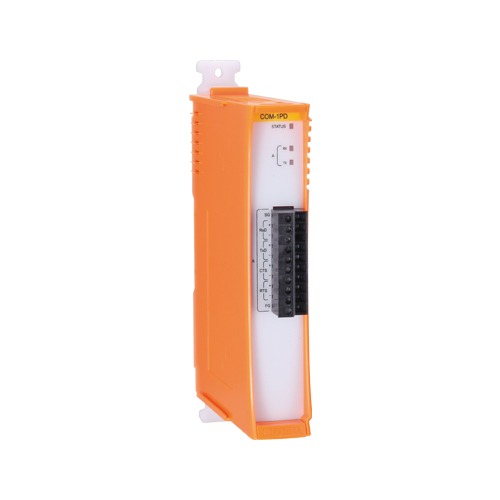

CPS-COM-1PD

Overview / Features

This product is an extension COM port that performs RS-422A/485-compliant serial communication with external device(s) and operates along with the stack type controller of our CONPROSYS series. CPS-COM-1PD has 1 channel of RS-422A/485 communication port.

• RS-422A/485 serial communication, supporting 921,600bps to the maximum.
  • CPS-COM-1PD has 1 channel of RS-422A/485-compliant serial port. Baud rates from 2 to 921,600bps can be set per each channel.
• Compact Design
  • Compact design, 25.2(W) x 94.7(D) x 124.8(H) mm, features flexibility in installation.
• Adaptable to a wide range of temperature between -20 and +60°C
  • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.

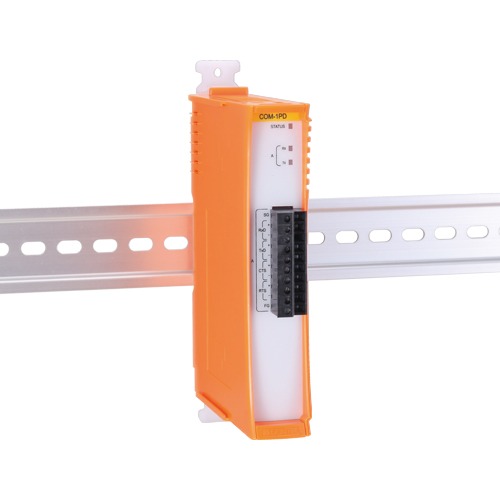

• Installation easy with two pieces of terminal support and DIN rail
  • You can remove a terminal connector without a screwdriver so that it can shorten the time of the replacement. As the product can be not only mounted on DIN rail, but also removable along the slide rails, replacing is simple and easy as well.
• Equipped with the LED for an operation check
  • The product has the LED for an operation check, which helps you visually confirm the communication status of each interface.
• No electrolytic capacitor
  • Without an electrolytic capacitor, which has a limited life, we are creating the product with a longer life.
