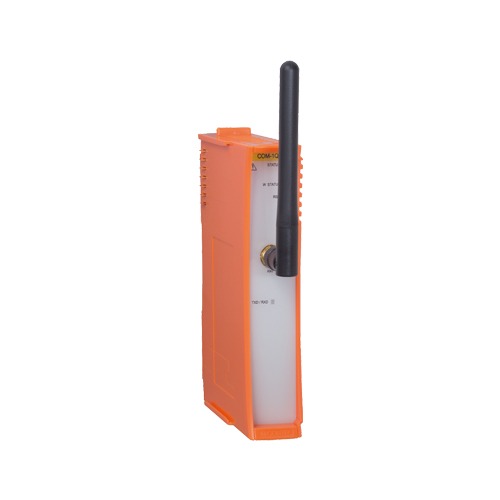

CPS-COM-1QL

Overview / Features

This product is a LoRa communication module and can be added to the CONPROSYS series configurable type controller.
Serial data can be communicated wirelessly by LoRa modulation (920MHz band).
Comparison to GFSK modulation system that is used in the same 920MHz band, using LoRa modulation for wireless modulation system achieves distance communication of 10 kilometers or farther.

• Wireless configurable module
  • This product provides the function to the CONPROSYS series configurable type controller and uploads analog or digital measured data to web server wirelessly via Master device.
• Achieve farther distance wireless communication
  • Innovating LoRa modulation, which is well-suited for long-distance wireless communication, achieves data communication of 10 kilometers or farther.
    *Actual communication distance differs depending on the surroundings such as radio waves or obstructions.
• Adaptable to a wide range of temperature between -20 and +60°C
  • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.

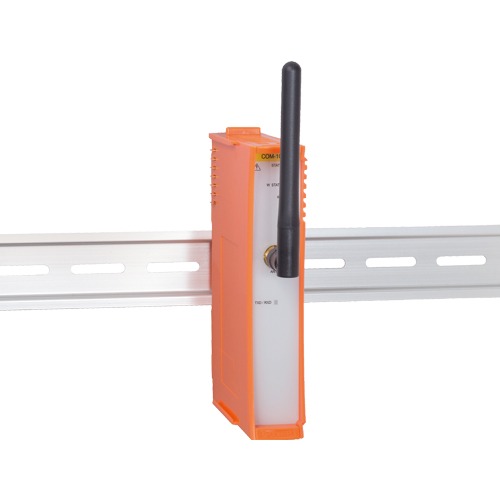

• Installation easy with DIN rail
  • As the product is not only mounted on DIN rail, but also removable along the slide rails, replacing is simple and easy.
• Equipped with the LED for an operation check
  • The product has the LED for an operation check, which helps you visually confirm the communication status of RS-232C interface.
• No electrolytic capacitor
  • Without an electrolytic capacitor, which has a limited life, we are creating the product with a longer life.
