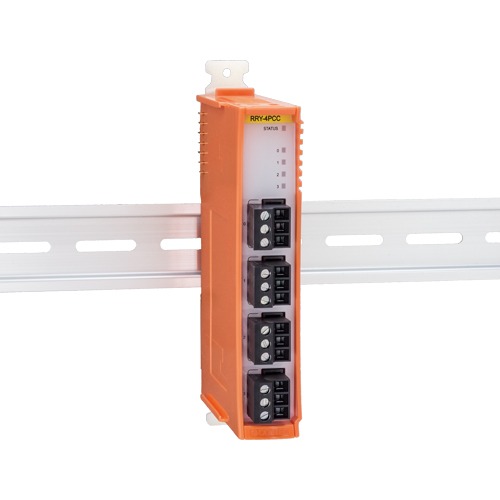

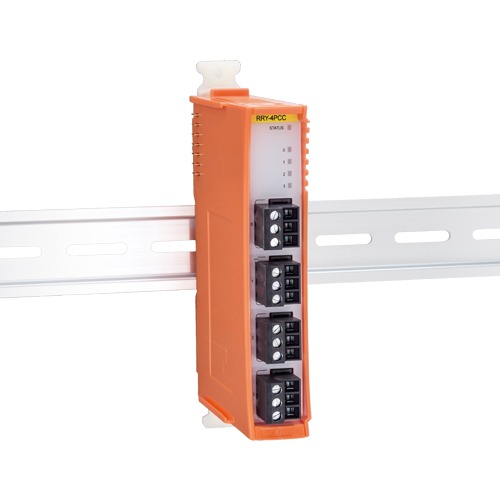

CPS-RRY-4PCC

Overview / Features

This product is a module with a function of relay output interface to add to the configurable type of our controller. It contains four channels of relay outputs (Form C) with independent common.

• Relay outputs (Form C) with independent common
  • This product has four channels of relay outputs (Form C) with independent common. Independent common terminal provided per channel, capable of supporting a different external power supply. High-capacity output rating is designed to be a maximum of 6A 240VAC, 5A 24VDC per channel.
• Relay isolation
  • As bus is isolated from the output interfaces by relays, this product has excellent noise performance.
• Compact Design
  • Compact design, 25.2 (W) x 94.7(D) x 124.8(H) mm, features flexibility in installation.
• Adaptable to a wide range of temperature between -20 and +60°C.
  • The product is capable of operating in the temperature between -20 and + 60°C. It can be installed in the various environments.
• Installation easy with two pieces of terminal support and DIN rail
  • You can remove a terminal connector without a screwdriver so that it can shorten the time of the replacement. As the product can be not only mounted on DIN rail, but also is removable along the side rails, replacing is simple and easy as well.
• Equipped with the LED for an operation check
  • The product has the LED for an operation check, which helps you visually confirm ON/OFF of the relay outputs.
